Full Specs & Features
Depth : 50'
Height : 23'
Width : 67'
First Floor: 1532 sq/ft
Second Floor: 1120 sq/ft
Primary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Covered Front Porch
147 sq/ft width 10' 6" x depth 14'
118 sq/ft width 10' 2" x depth 11' 8"
128 sq/ft width 13' 4" x depth 9' 8"
501 sq/ft width 17' x depth 29' 6"
623 sq/ft width 29' x depth 21' 6"
231 sq/ft width 13' 4" x depth 17' 4"
Master Sitting Area:
127 sq/ft width 14' 8" x depth 8' 8"
222 sq/ft width 13' 6" x depth 16' 6"
66 sq/ft width 10' x depth 6' 8"
What's Included In This Plan Set

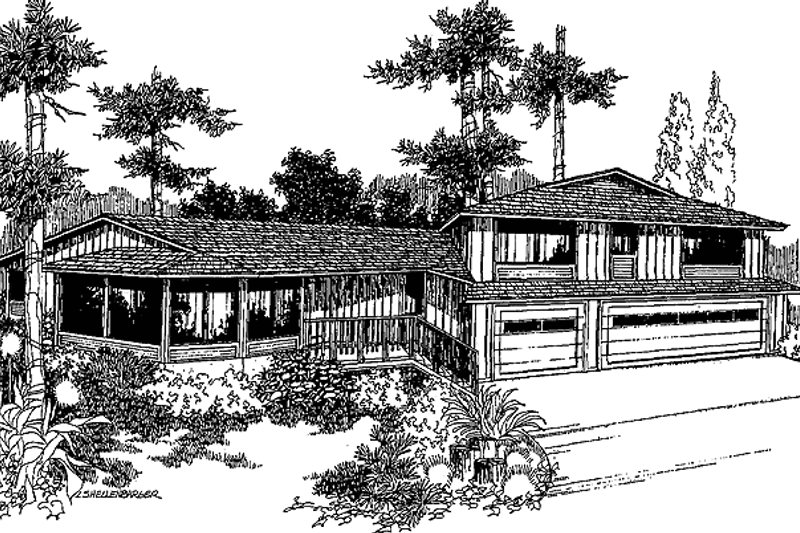

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.

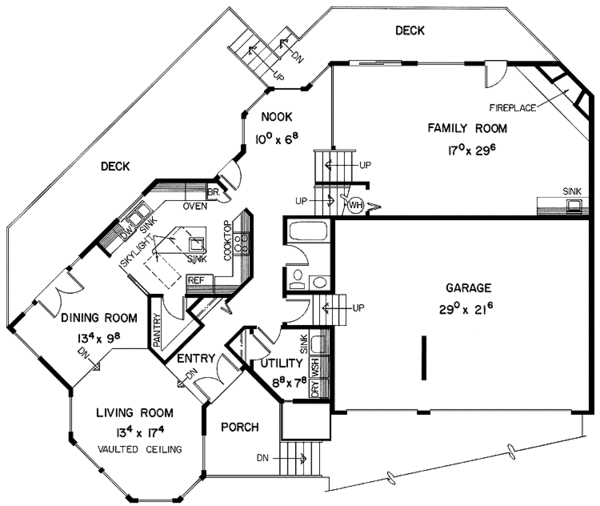

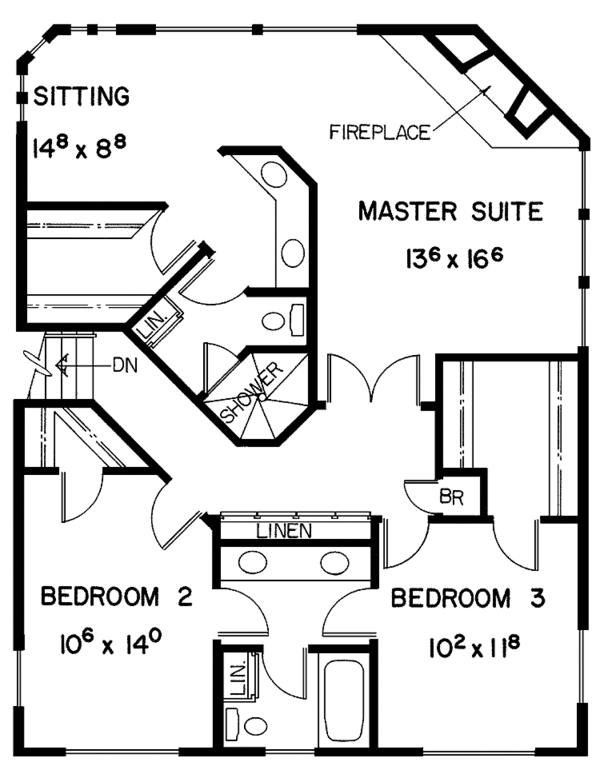

- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
