PLAN 455-492
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

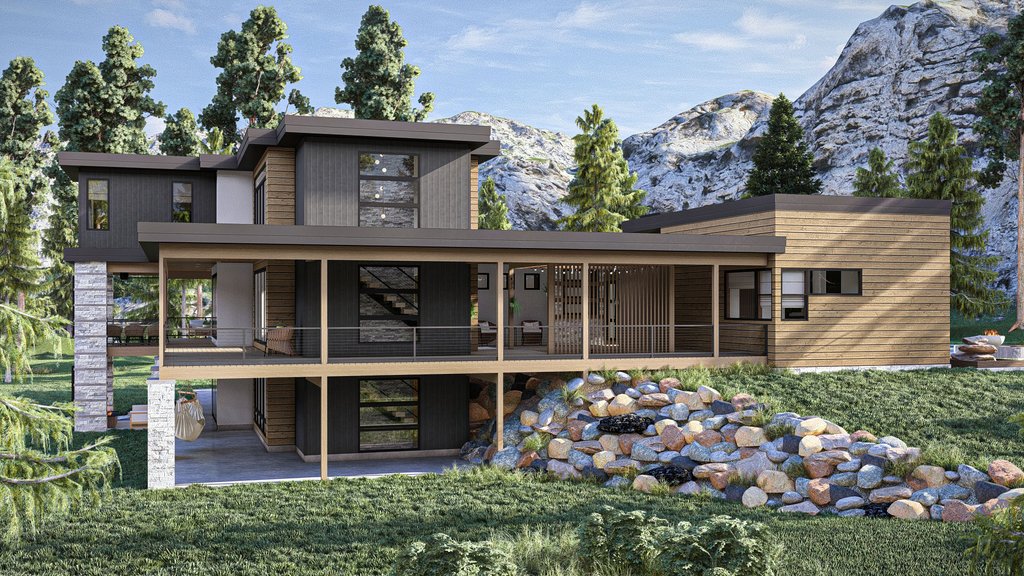

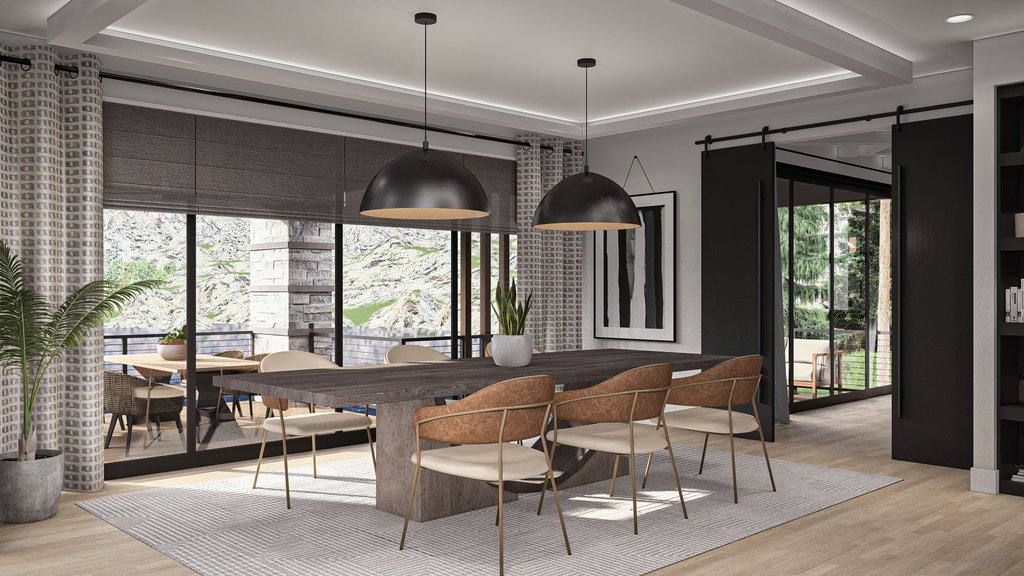

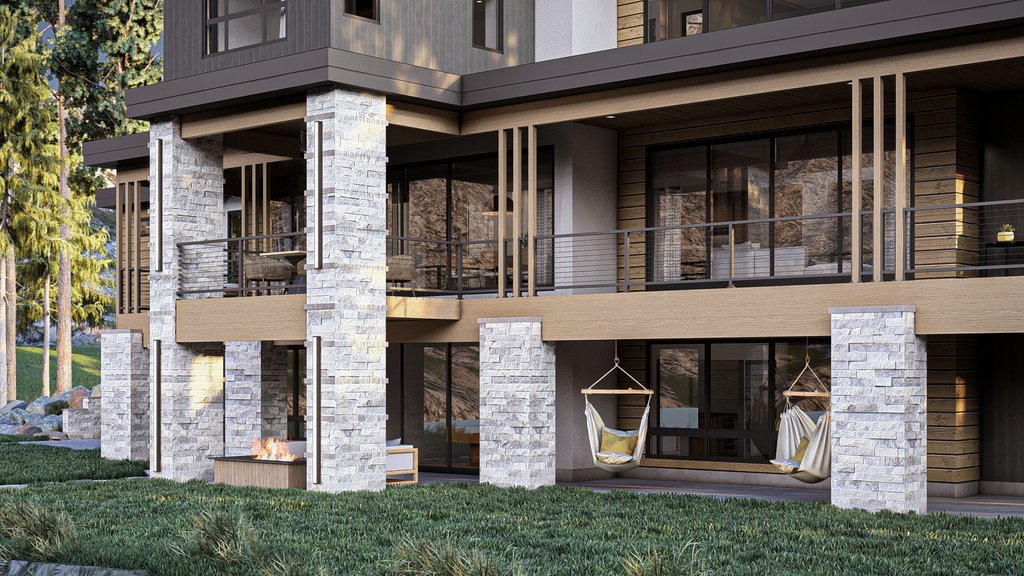

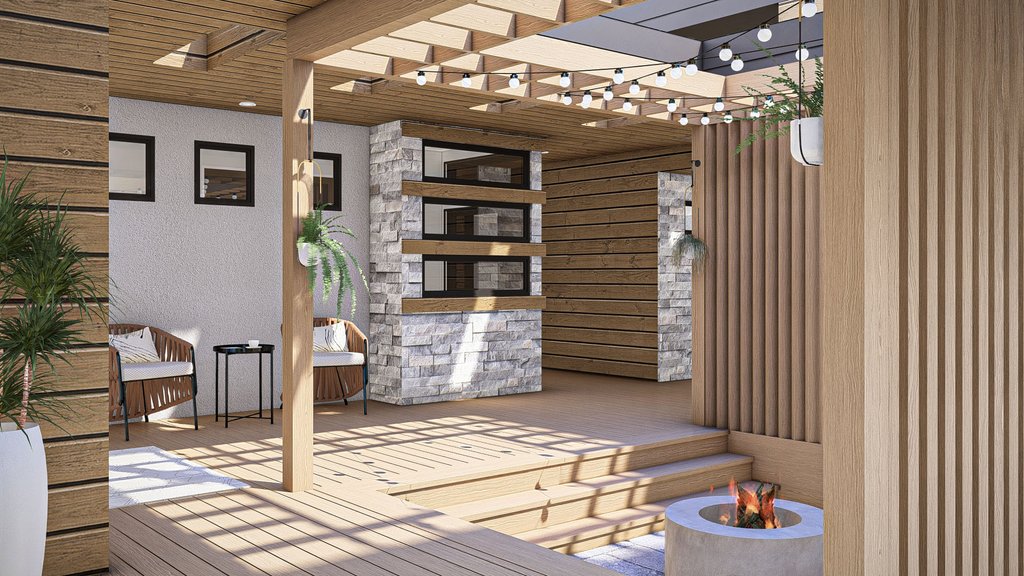

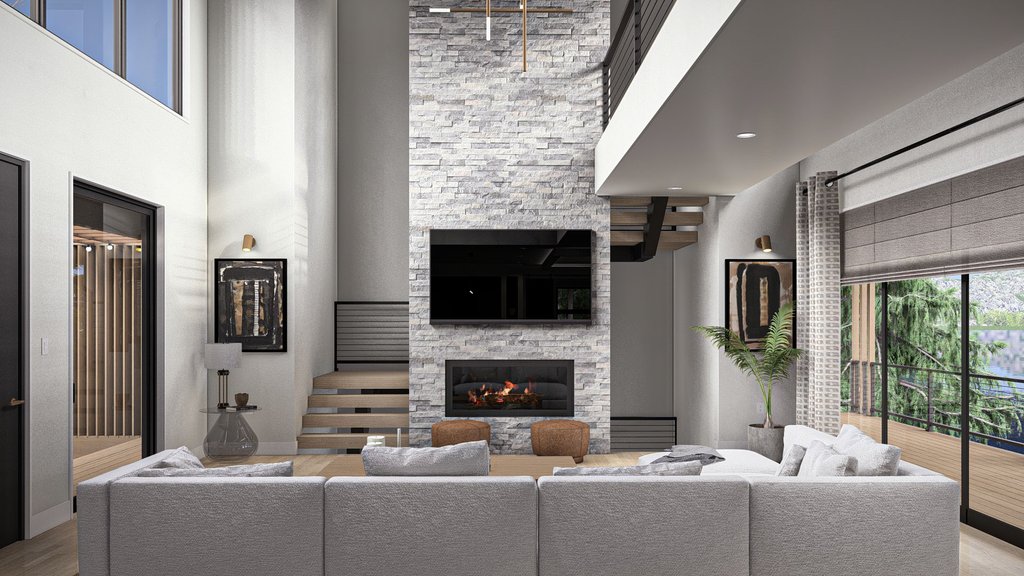

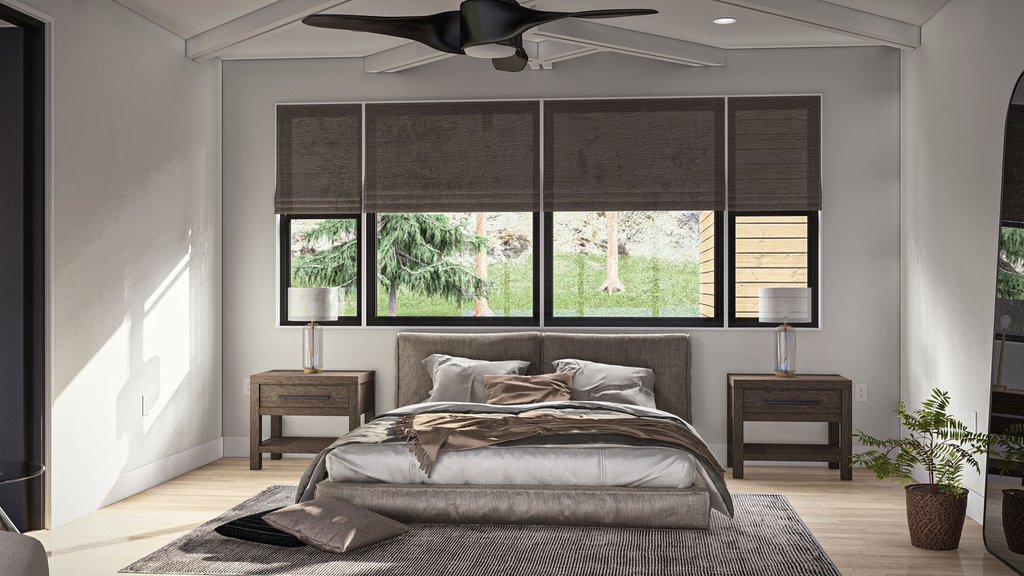

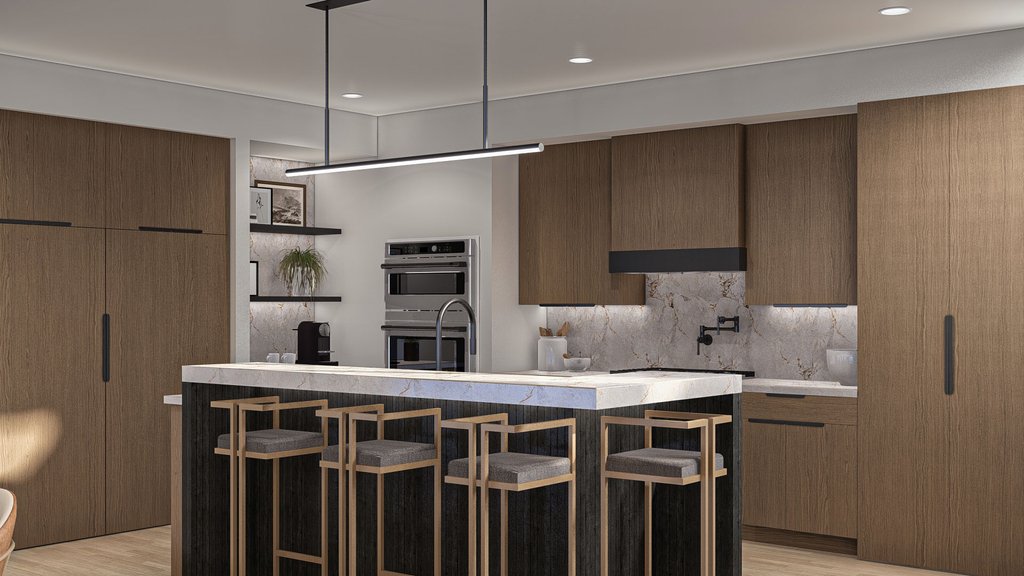

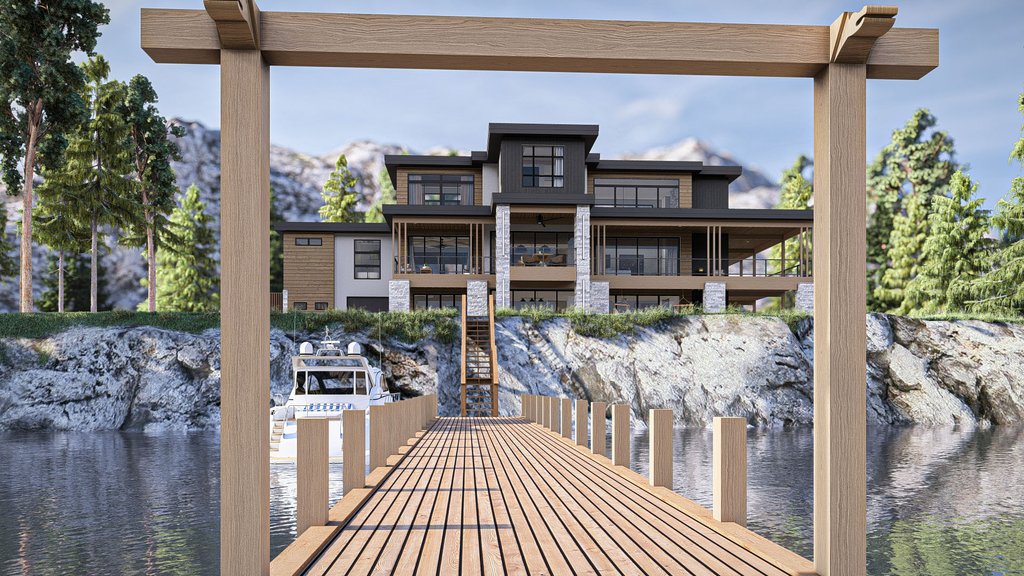

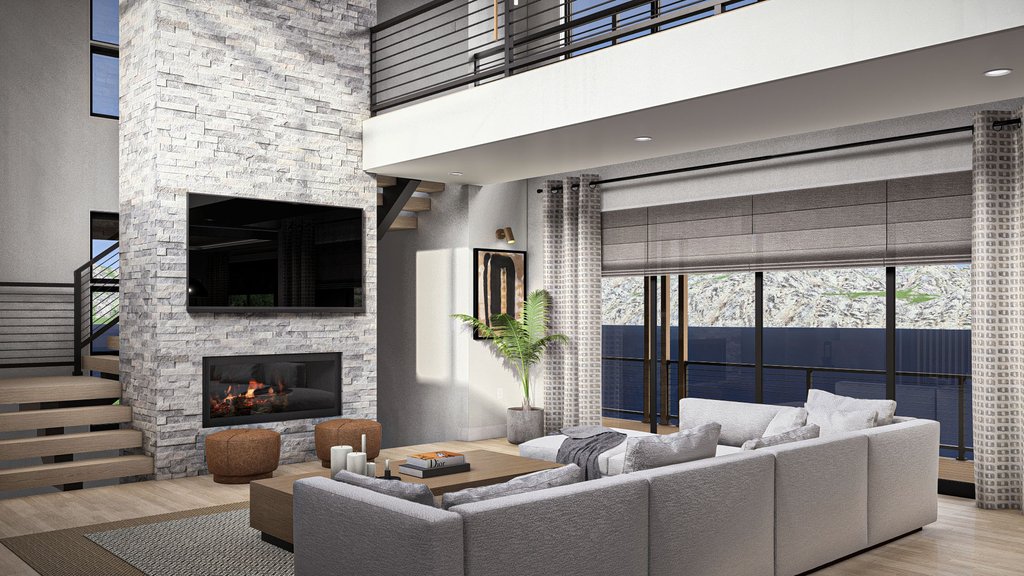

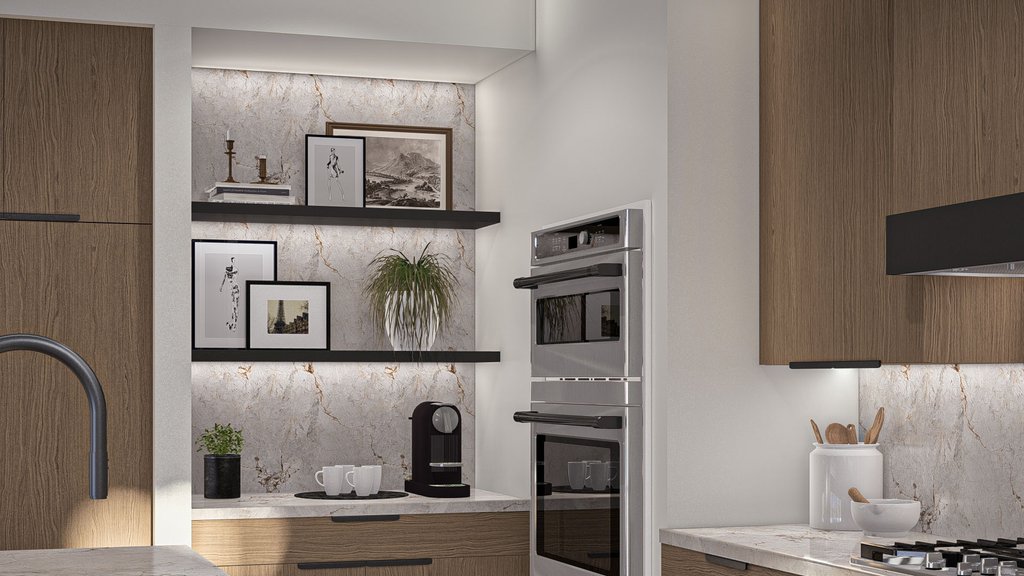

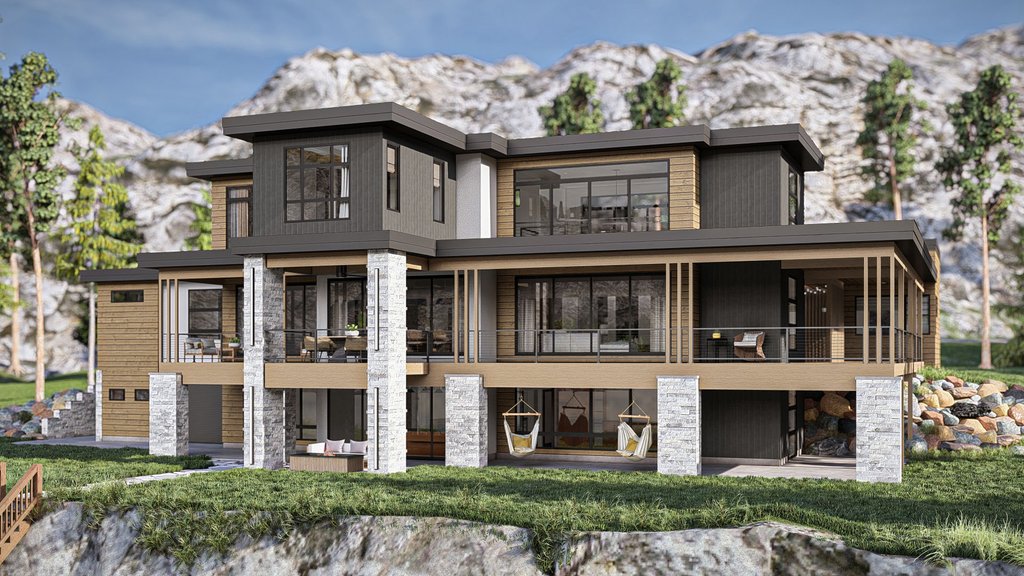

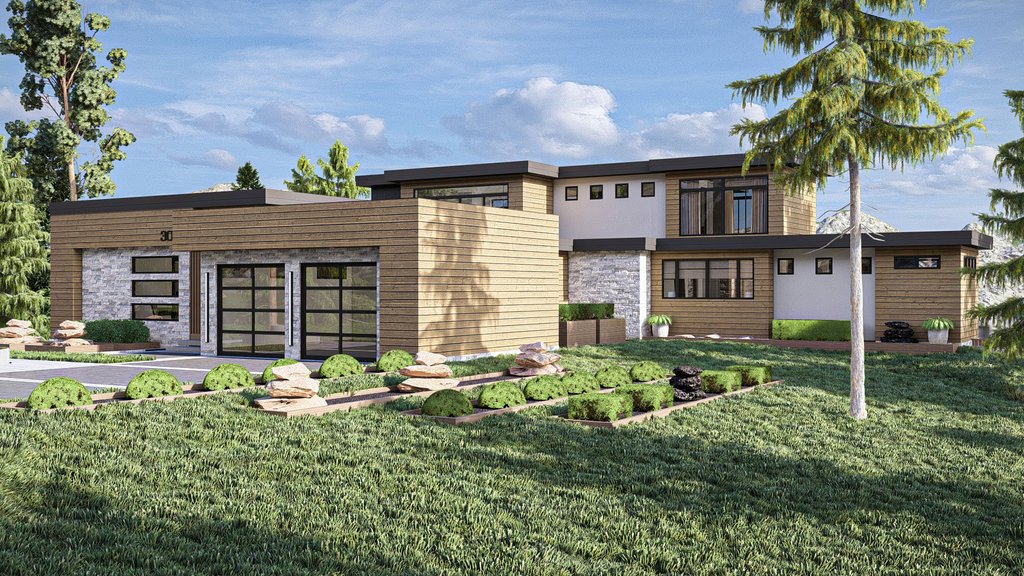

Welcome to a beautiful home nestled amidst the tranquil embrace of nature. This ultra-modern lake home epitomizes contemporary luxury and relaxation. With its striking flat roof design and expansive glass windows. The heart of this home is its spacious covered deck, where residents can unwind and entertain guests. Adorned with stylish slat walls that provide both privacy and aesthetic appeal, the deck boasts a sunken firepit, creating an inviting ambiance for cozy evenings under the stars. At the rear is an outdoor shower, offering a refreshing way to rinse off after a day of swimming or sunbathing by the lake. Step inside to discover a sleek and sophisticated interior, where every detail has been meticulously curated for comfort and elegance. The open-concept living area features clean lines, minimalist decor, and abundant natural light, creating an airy and inviting atmosphere. The gourmet kitchen is a chef's dream. with sleek cabinetry, and a generous island with seating, perfect for casual dining or socializing while preparing meals. Retreat to the main suite, where luxury meets functionality. The spacious bedroom opens onto a deck, providing a peaceful sanctuary to enjoy morning coffee or sunset views. The en-suite bathroom boasts a soaking tub, and a separate shower. For added convenience, the main suite includes a large walk-in closet with built-in storage solutions and a laundry area, ensuring that chores are effortlessly taken care of. Additionally, a well-appointed guest suite provides a comfortable retreat for visitors, complete with its own bathroom, laundry, and ample privacy. Designed to embrace the beauty of its natural surroundings while offering the ultimate in modern comfort and convenience, this lake home is a sanctuary for those seeking an unparalleled lifestyle experience.
Floor Plans

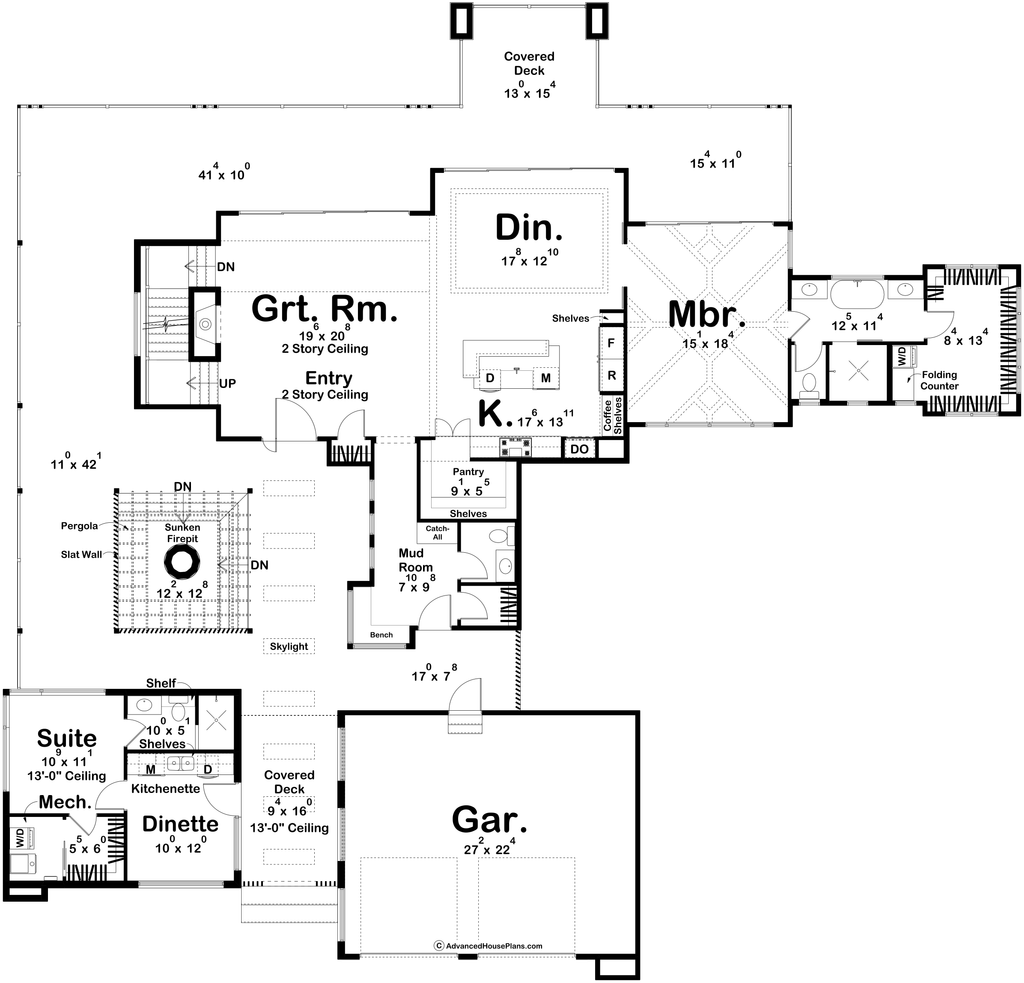

Floor Plan - Main Floor
Floor Plan - Upper Floor

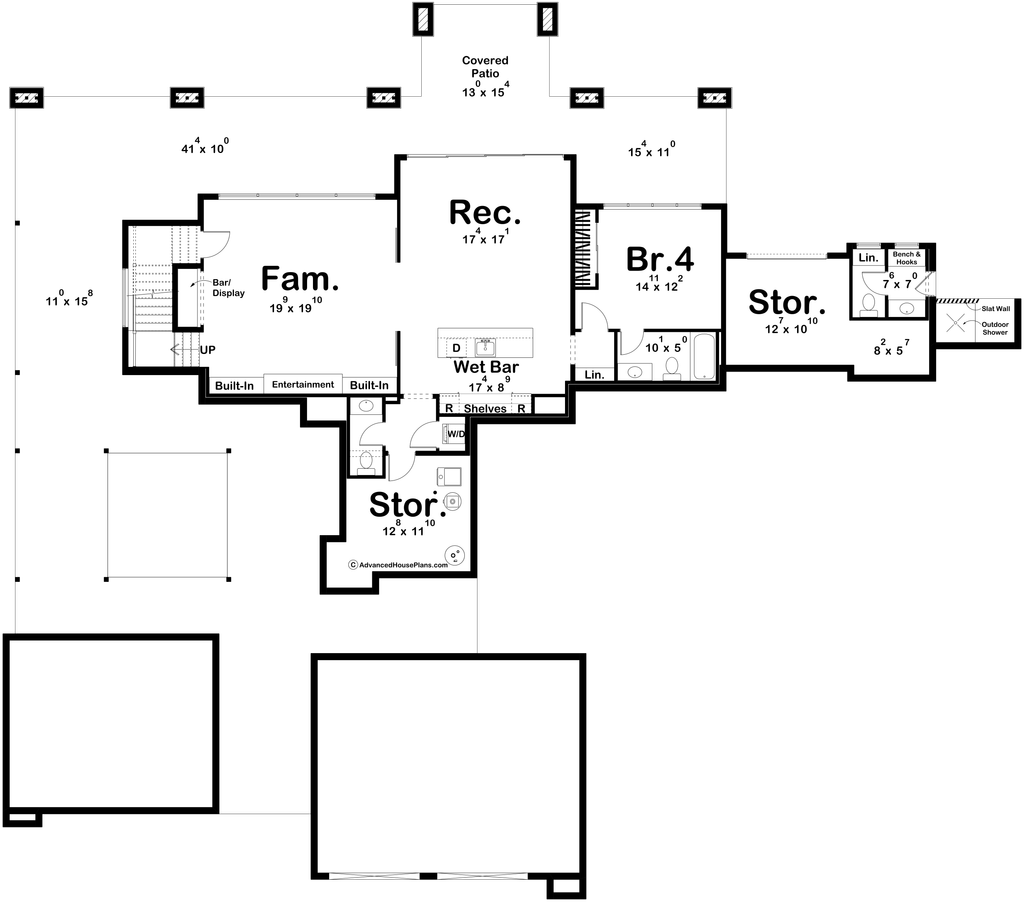

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 91'
Height : 21' 3"
Width : 94' 11"
Area
Garage : 644 sq/ft
Main Floor : 1872 sq/ft
Upper Floor : 803 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered deck and suite feature 13 foot ceilings. The entry and great room feature 2 story ceilings.
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : Flat
Roof Framing : Trusses
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Upstairs Laundry
Garage Features
Detached Garage
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1529.15
$1529.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1779.90
$1779.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2038.30
$2038.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2378.30
$2378.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Basement:
$254.15
$254.15
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$254.15
$254.15
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$254.15
$254.15
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$254.15
$254.15
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$254.15
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.15
$50.15
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$254.15
$254.15
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
