PLAN 437-58
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

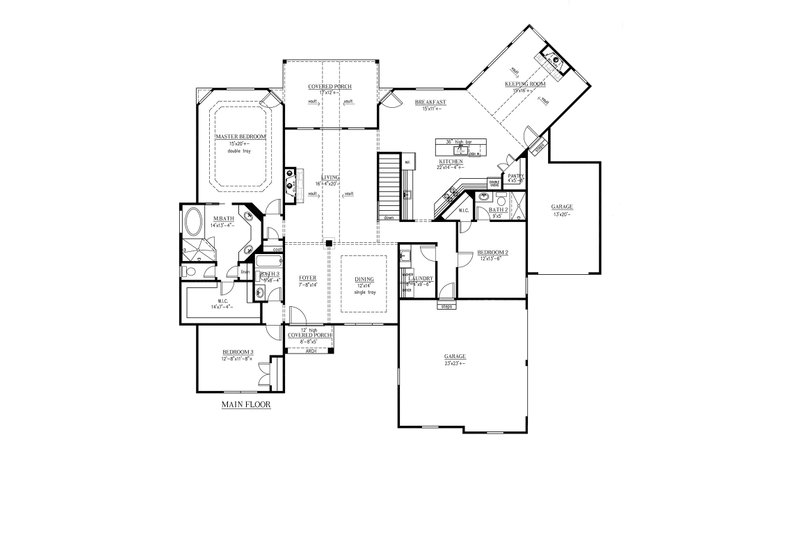

Floor Plan - Main Floor

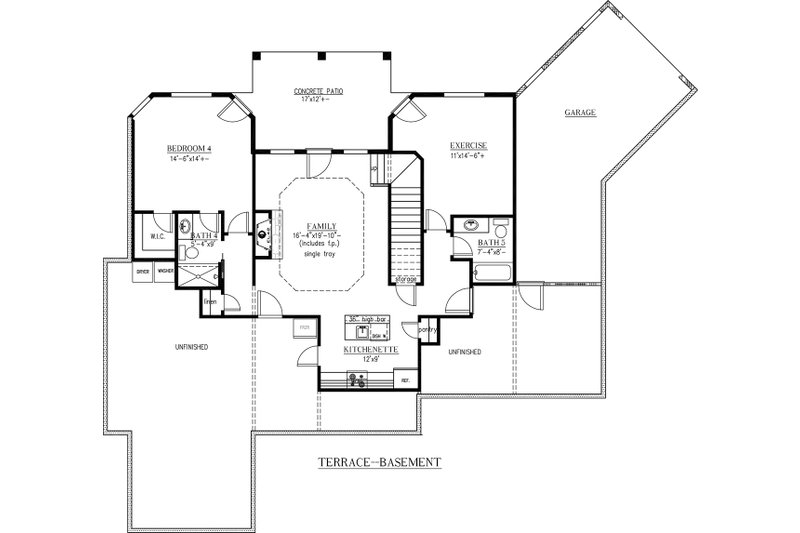

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 72' 6"
Height : 32'
Width : 74' 8"
Area
Basement Unfinished: 2676 sq/ft
First Floor: 2676 sq/ft height 10'
Garage: 807 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Play Flex Room
Wet Bar
Workshop
Garage Features
Front Entry Garage
Side Entry Garage
Split Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
1 Car Garage:
277 sq/ft width 13' x depth 20'
2 Car Garage:
530 sq/ft width 23' x depth 23'
Bath 2:
45 sq/ft width 9' x depth 5'
Bath 3:
42 sq/ft width 5' x depth 8' 4"
Bedroom 2:
162 sq/ft width 12' x depth 13' 6"
Bedroom 3:
148 sq/ft width 12' 8" x depth 11' 8"
Breakfast:
165 sq/ft width 15' x depth 11'
Covered Front Porch:
43 sq/ft width 8' 8" x depth 5'
Covered Rear Porch:
208 sq/ft width 17' x depth 12'
Dining:
168 sq/ft width 12' x depth 14'
Foyer:
107 sq/ft width 7' 8" x depth 14'
Keeping Room:
240 sq/ft width 15' x depth 16'
Kitchen:
215 sq/ft width 22' x depth 14' 4"
Laundry Room:
60 sq/ft width 6' 4" x depth 9' 6"
Living Room:
326 sq/ft width 16' 4" x depth 20'
Master Closet:
103 sq/ft width 14' x depth 7' 4"
Master Bath:
187 sq/ft width 14' x depth 13' 4"
Master Bedroom:
300 sq/ft width 15' x depth 20'
Pantry:
23 sq/ft width 4' x depth 5' 8"
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plan Set
$1355.75
$1525.75
Foundation
$0.00
Additional Options
$140.25
$335.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
