PLAN 901-128

Key Specs


2679
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

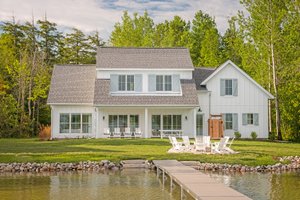

This cozy home or cottage invites you through the front door over the large wrap around covered porch to see the view from the rear of the home. A convenient mud and laundry room with side entrance is great for lakeside living. The open kitchen dining and living are oriented in the rear of the home to capture the view. A screen porch or sunroom adds additional main floor living space. A main floor master suite privately tucked away has his and hers closets and a view of its own. The lower level is perfect for guests and entertaining with additional guest suite, bunkroom, and living space.

Floor Plans

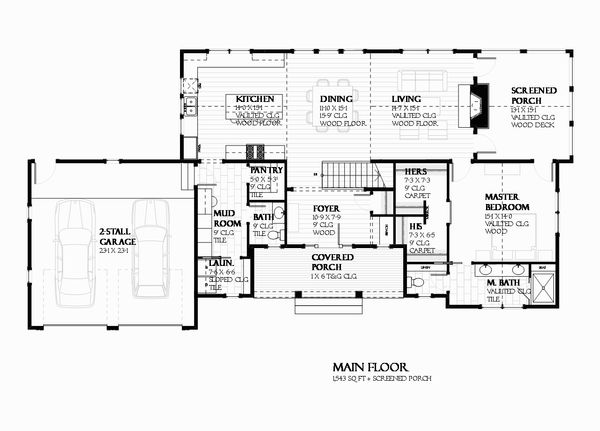

Floor Plan - Main Floor Plan
Reverse
Ranch Floor Plan - Main Floor Plan Plan #901-128

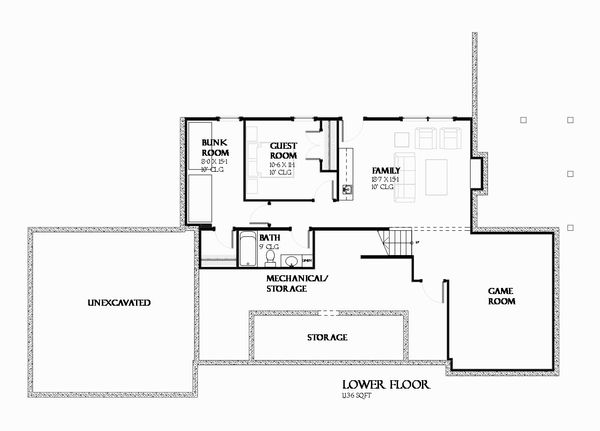

Floor Plan - Lower Floor Plan
Reverse
Ranch Floor Plan - Lower Floor Plan Plan #901-128

Full Specs & Features


Dimension
Depth : 39' 7"
Height : 0"
Width : 77' 2"
Area
Lower Floor : 1136 sq/ft
Main Floor : 1543 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 10'
Main Ceiling : 9'
Roof
Roof Framing : truss
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Sunroom
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


  • Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.
  • Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
» See important information before purchasing.

Plan Set

5 Copy Set :
$2000.00
5 printed plan sets mailed to you.
PDF Set :
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$2100.00
8 printed plan sets mailed to you.
CAD Set :
$2700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$2000.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$150.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.
