PLAN #45-241

Key Specs


2684
sq ft

3
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #45-241

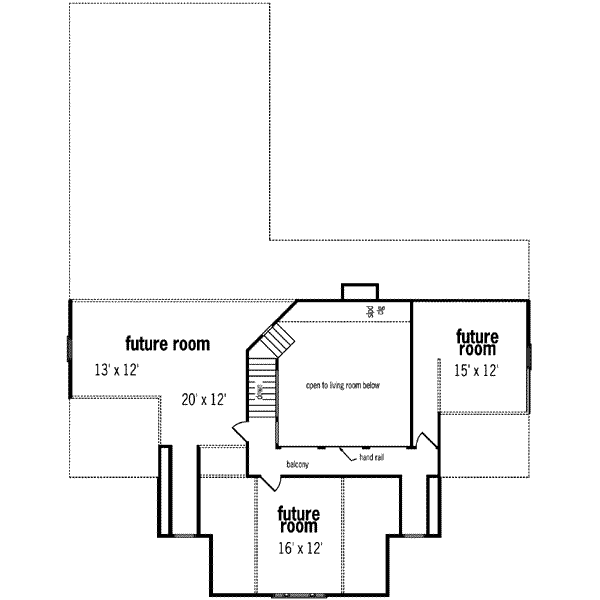

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #45-241

Full Specs & Features


Dimension
Depth : 80'
Height : 29'
Width : 62'
Area
Bonus: 768 sq/ft
First Floor: 2684 sq/ft height 9'
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Storage Area
Unfinished Future Space
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

156 sq/ft width 13' x depth 12'

Bedroom 3:

168 sq/ft width 14' x depth 12'

Dining Room:

192 sq/ft width 16' x depth 12'

Garage:

506 sq/ft width 23' x depth 22'

Kitchen:

240 sq/ft width 20' x depth 12'

Living Room:

440 sq/ft width 22' x depth 20'

Master Bedroom:

288 sq/ft width 18' x depth 16'

Master Closet:

144 sq/ft width 12' x depth 12'

Porch - Front:

192 sq/ft width 24' x depth 8'

Porch - Rear:

128 sq/ft width 16' x depth 8'

What's Included In This Plan Set


  • Information Cover Sheet
  • Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
  • Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
  • Exterior Views
  • Building Sections & Interior Elevations
  • Complete Construction Details
  • Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
» See important information before purchasing.
Plan Set
PDF Set :
$945.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1017.00
5 printed plan sets mailed to you.
8 Copy Set :
$1071.00
8 printed plan sets mailed to you.
Reproducible Set :
$1089.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1890.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$135.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Material List :
81.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
112.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
18.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
