PLAN 124-868
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
The two-story narrow lot design works well in a town home setting, is
greener than most, and rich in options. A second set of front doors open
into what could be a den, office or guest room, and the great room comes
with two possible designs. Also, this plan may be built with (or
without) a guest apartment that extends over the garage.
Full Specs & Features
Dimension
Depth : 93'
Height : 27'
Width : 34' 4"
Height : 27'
Width : 34' 4"
Area
Bonus: 436 sq/ft
First Floor: 1453 sq/ft height 9'
Garage: 604 sq/ft
Porch: 92 sq/ft
Second Floor: 797 sq/ft height 9'
First Floor: 1453 sq/ft height 9'
Garage: 604 sq/ft
Porch: 92 sq/ft
Second Floor: 797 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Shingle
Roof Framing : Truss
Roof Load : 25
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom
Great Room Living Room
Main Floor Laundry
Sunroom
Garage Features
Rear Garage
Side Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Grill Deck Sundeck
Screened Porch
More
Empty Nester
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

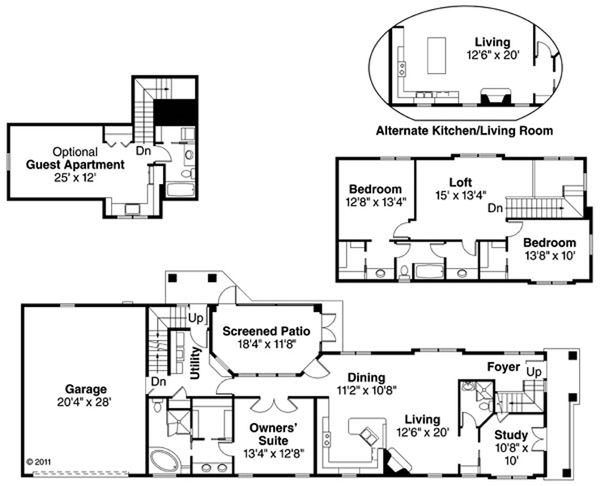

Rooms
Bedroom 2:
width 12' 8" x depth 13' 4"
Bedroom 3:
width 13' 8" x depth 10'
Dining:
width 11' 2" x depth 10' 8"
Garage:
604 sq/ft width 20' 4" x depth 28'
Living Room:
width 12' 6" x depth 20'
Loft:
width 15' x depth 13' 4"
Master Bedroom:
width 13' 4" x depth 12' 8"
Porch Screened:
width 18' 4" x depth 11' 8"
Rec. Room:
436 sq/ft width 25' x depth 12'
Study:
width 10' 8" x depth 10'
What's Included In This Plan Set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
