Full Specs & Features
Depth : 62'
Height : 22'
Width : 88'
First Floor: 2692 sq/ft height 9'
Garage: 736 sq/ft height 9'
Main Ceiling : 9'
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Structural Information Provided
Structural 1st Floor Framing
Structural Roof Framing
53 sq/ft width 5' 8" x depth 9' 6"
151 sq/ft width 11' 8" x depth 13'
143 sq/ft width 13' x depth 11'
161 sq/ft width 10' x depth 16' 2"
143 sq/ft width 11' 8" x depth 12' 4"
242 sq/ft width 15' x depth 16' 2"
64 sq/ft width 8' x depth 8'
715 sq/ft width 22' 10" x depth 31' 4"
175 sq/ft width 11' 4" x depth 15' 6"
212 sq/ft width 14' x depth 15' 2"
95 sq/ft width 14' x depth 6' 10"
250 sq/ft width 15' x depth 16' 8"
141 sq/ft width 12' x depth 11' 10"
27 sq/ft width 5' 6" x depth 5'
219 sq/ft width 13' 10" x depth 15' 10"
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

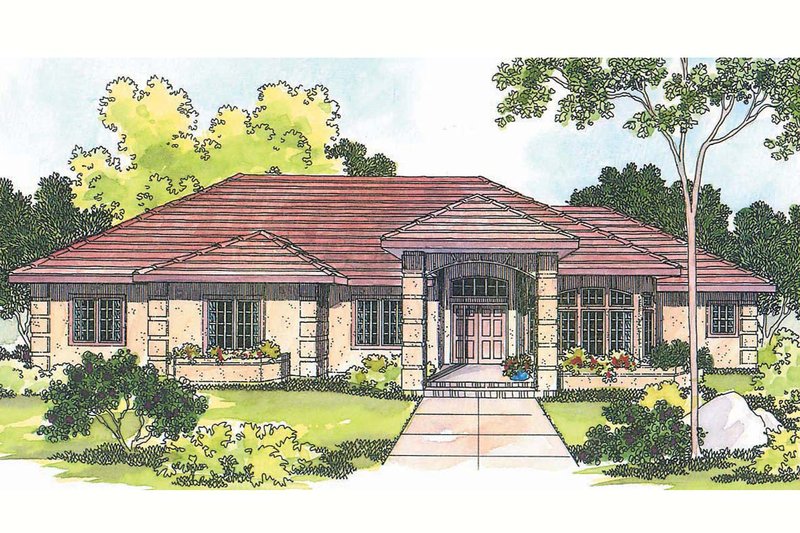

- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
