Great for entertaining, this open floor plan has a large back porch, large family & kitchen with eat-at bar. Executive master suite has a bayed reading niche, 2 vanities, walk-in shower & oversized closet. Generous closet space & rear foyer with storage is perfect for school aged kids. Stone & cedar detailing dress up the rich elevation.

Floor Plans

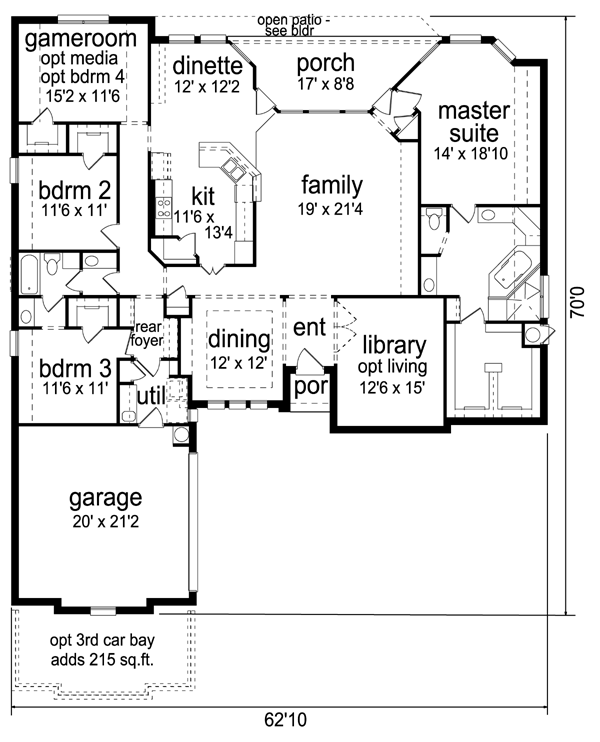

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-572

Full Specs & Features

Depth : 70'
Height : 27' 8"
Width : 62' 10"
First Floor: 2695 sq/ft height 10'
Garage: 467 sq/ft height 10'
Ceiling Details : Master, Family, Kitchen, Dinette, Library, Gameroom = 10'Bdrms 2 & 3 slopes to 9'Dining = 10' TierGarage - 8'
Garage Ceiling : 8'
Main Ceiling : 10'
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath

Bedroom 2:

width 11' 6" x depth 11'

Bedroom 3:

width 11' 6" x depth 11'


width 12' x depth 12' 2"


width 12' x depth 12'

Family Room:

width 19' x depth 21' 4"


width 15' 2" x depth 11' 6"


width 20' x depth 21' 2"


width 11' 6" x depth 13' 4"


width 12' 6" x depth 15'

Master Bedroom:

width 14' x depth 18' 10"

Porch Front:

21 sq/ft

Porch Rear:

157 sq/ft width 17' x depth 8' 8"

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
