Key Specs
2695
sq ft
4
Beds
4
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-1833
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

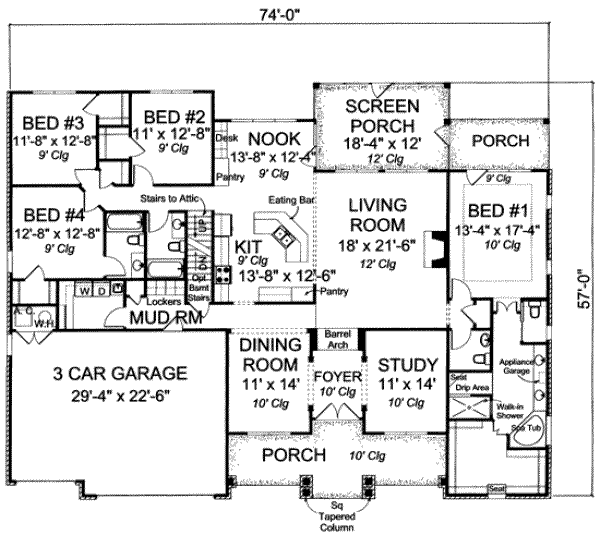

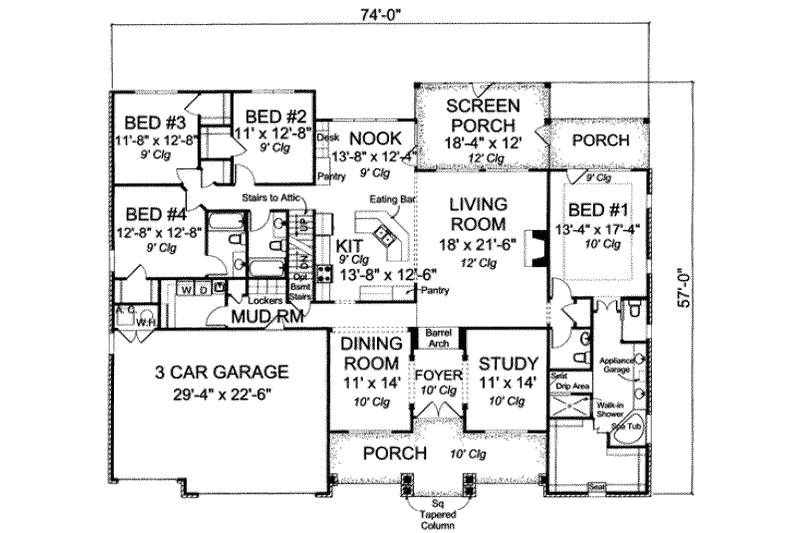

Floor Plans
Full Specs & Features
Dimension
Depth : 57'
Height : 25'
Width : 74'
Area
First Floor: 2695 sq/ft
Garage: 693 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Rooms
Bathroom 2:
28 sq/ft width 5' 4" x depth 5' 4"
Bathroom 3:
45 sq/ft width 5' x depth 9'
Bathroom 4:
45 sq/ft width 5' x depth 9'
Bedroom 2:
139 sq/ft width 11' x depth 12' 8"
Bedroom 3:
147 sq/ft width 11' 8" x depth 12' 8"
Bedroom 4:
160 sq/ft width 12' 8" x depth 12' 8"
Breakfast Room:
168 sq/ft width 13' 8" x depth 12' 4"
Dining Room:
154 sq/ft width 11' x depth 14'
Foyer:
66 sq/ft width 7' x depth 9' 6"
Garage:
659 sq/ft width 29' 4" x depth 22' 6"
Kitchen:
170 sq/ft width 13' 8" x depth 12' 6"
Kitchen Island:
30 sq/ft width 10' x depth 3'
Living Room:
387 sq/ft width 18' x depth 21' 6"
Master Bathroom:
150 sq/ft width 7' 6" x depth 20'
Master Bedroom:
231 sq/ft width 13' 4" x depth 17' 4"
Master Closet:
133 sq/ft width 13' 4" x depth 10'
Porch - Screened:
219 sq/ft width 18' 4" x depth 12'
Study:
154 sq/ft width 11' x depth 14'
Utility Room:
60 sq/ft width 9' x depth 6' 8"
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$922.25
$1173.00
Foundation
$0.00
$165.75
$165.75
Framing
$0.00
$165.75
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
