PLAN #124-575

Key Specs


2711
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Wings extend out in two opposite directions from the vaulted and richly
 windowed hexagonal great room at center of this ranch home plan, while
 a covered patio spans much of the rear. In addition to its luxurious
 bathroom, the vaulted owners' suite has a sitting area that shares a
 two-sided fireplace with the great room.

Floor Plans

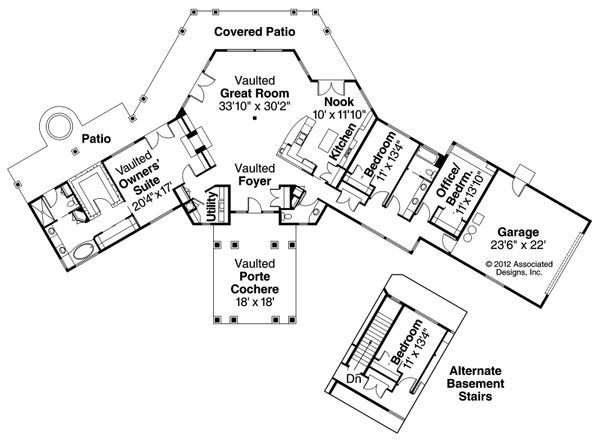

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #124-575

Full Specs & Features


Dimension
Depth : 70' 6"
Height : 22' 4"
Width : 130' 4"
Area
First Floor: 2711 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : truss/stick
Roof Load : 30
Primary Pitch : 6:12
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Carport Porte Cochere
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
More
Suited For Vacation Home
Unusual Shape
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing
Rooms

Bathroom 2:

104 sq/ft width 6' 6" x depth 16'

Bedroom 2:

146 sq/ft width 13' 4" x depth 11'

Bedroom 3:

152 sq/ft width 11' x depth 13' 10"

Breakfast Room:

115 sq/ft width 10' 6" x depth 11'

Garage:

517 sq/ft width 23' 6" x depth 22'

Gathering Room:

754 sq/ft width 25' x depth 30' 2"

Kitchen:

270 sq/ft width 15' x depth 18'

Master Bathroom:

170 sq/ft width 10' x depth 17'

Master Bedroom:

345 sq/ft width 20' 4" x depth 17'

Powder Room:

56 sq/ft width 8' x depth 7'

Utility Room:

62 sq/ft width 7' 10" x depth 8'

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.

Plan Set

PDF Set :
$1100.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1110.00
5 printed plan sets mailed to you.
8 Copy Set :
$1290.00
8 printed plan sets mailed to you.
CAD Set :
$2345.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$870.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$285.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$365.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
275.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
