Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This 4 bedroom plan is perfect for a growing family. The large kitchen has all the ammenities with an island, walk-in pantry, eat-at bar & is open to the family area & dining nook. Enjoy cozing up to the fire on a chilly night in front of the Pass through gas fireplace between the family and living areas. Master Suite has views to the backyard & enjoy the luxurious bath which boasts a cathedral ceiling & hidden cedar footage in the large closet. The 4th bedroom is perfect to utilize as a guest bedroom or home office. Garage is located in the front of the house with a swing entry, but the plans also show the garage door can be placed on the side of the house making it perfect for a corner lot.

Floor Plans

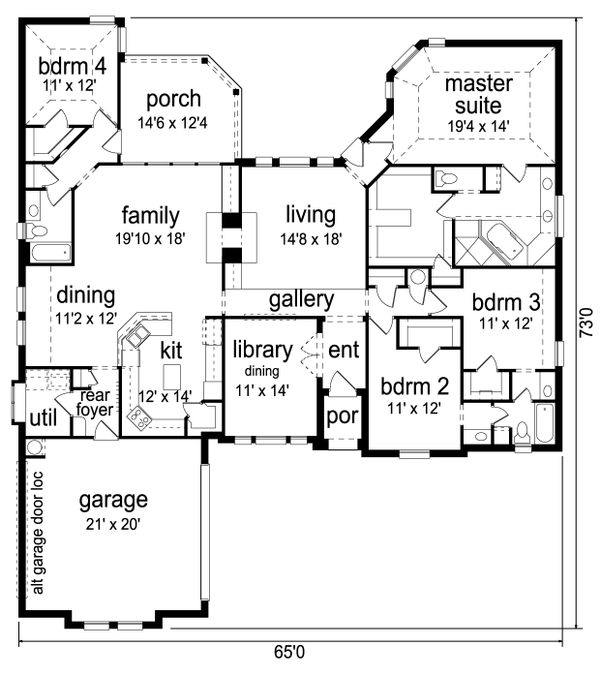

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-617

Full Specs & Features

Depth : 73'
Height : 22'
Width : 65'
First Floor: 2715 sq/ft
Garage: 500 sq/ft height 8'
Porch: 172 sq/ft
Ceiling Details : 10' vault in master 10' vault in bdrm4
Main Ceiling : 10'
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Gables
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath

Bedroom 2:

width 11' x depth 12'

Bedroom 3:

width 11' x depth 12'

Bedroom 4:

width 11' x depth 12'

Dining Area:

width 11' 2" x depth 12'

Family Room:

width 19' 10" x depth 18'

Front Porch:

30 sq/ft


500 sq/ft width 21' x depth 20'


width 12' x depth 14'


width 11' x depth 14'

Living Room:

width 14' 8" x depth 18'

Master Bedroom:

width 19' 4" x depth 14'

Rear Porch:

172 sq/ft width 14' 6" x depth 12' 4"
