PLAN #54-164

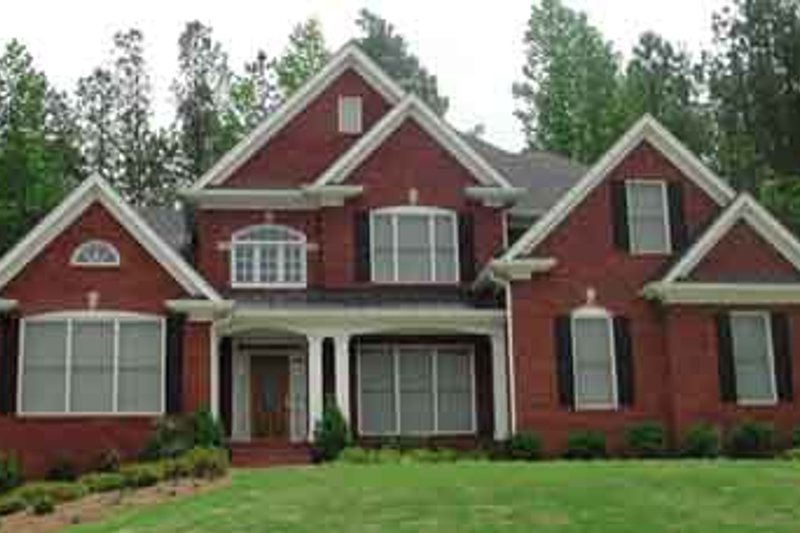

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$70.00/each
Mirror Reversed Sets
$0.00
Subtotal
$1087.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #54-164

Key Specs


2718
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

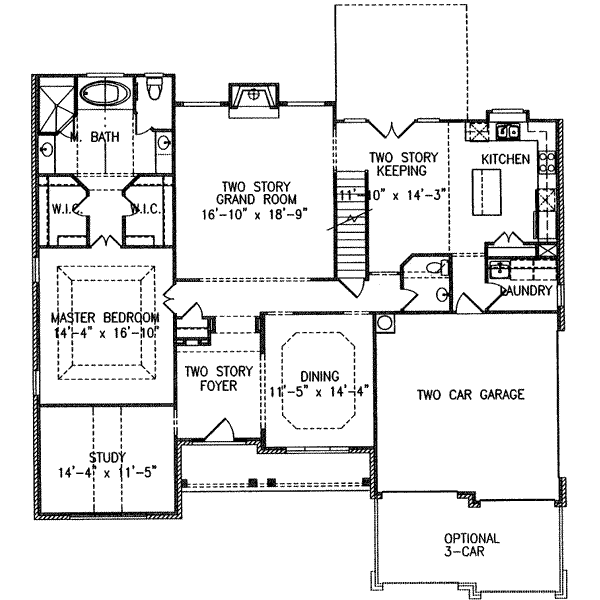

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #54-164

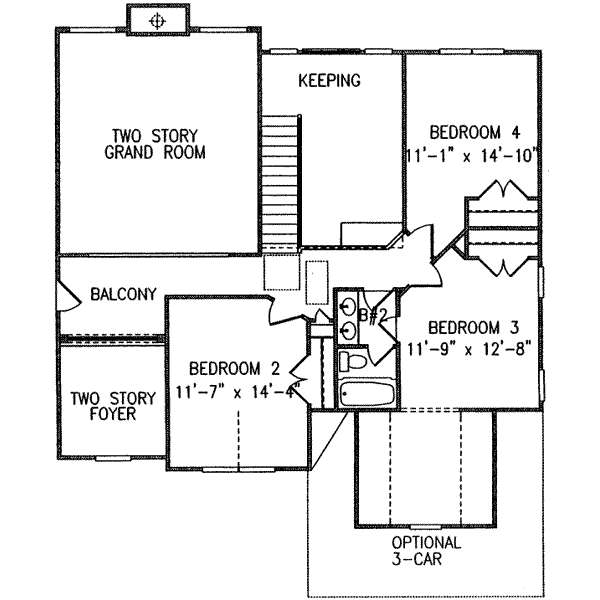

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #54-164

Full Specs & Features


Dimension
Depth : 48'
Height : 33'
Width : 56'
Area
First Floor: 1933 sq/ft
Second Floor: 787 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Balcony
Rooms

Bedroom 2:

168 sq/ft width 11' 8" x depth 14' 5"

Bedroom 3:

150 sq/ft width 11' 10" x depth 12' 9"

Bedroom 4:

135 sq/ft width 11' 3" x depth 12'

Exercise Room:

114 sq/ft width 12' x depth 9' 6"

Garage:

380 sq/ft width 19' 6" x depth 19' 6"

Grand Salon:

306 sq/ft width 17' x depth 18'

Keeping Room:

160 sq/ft width 11' 2" x depth 14' 4"

Kitchen:

117 sq/ft width 9' x depth 13' 1"

Laundry Room:

62 sq/ft width 11' 3" x depth 5' 7"

Master Bedroom:

244 sq/ft width 14' 6" x depth 16' 10"

Study:

166 sq/ft width 14' 6" x depth 11' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1087.00
5 printed plan sets mailed to you.
Reproducible Set :
$1087.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
350.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
70.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Browse Similar Plans

Recently Viewed Plans
