Key Specs


2734
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This unique contemporary/Floridian design brings all of the major living areas to the rear for extended outdoor livability. The separation of formal living areas adds excitement to dinner parties. A sunken living room leads to the covered patio. The sunken dining room shows unique detailing in its coffered ceiling. The large, efficient kitchen has a planning desk and is convenient to the dining room and a sunny breakfast room. A bayed den invites relaxation. Luxury abounds in the master suite, which includes a bath fit for royalty: two walk-in closets, dual vanities, a whirlpool tub and a shower. The second floor houses three more bedrooms--one with a sitting room--and two full baths.

Floor Plans

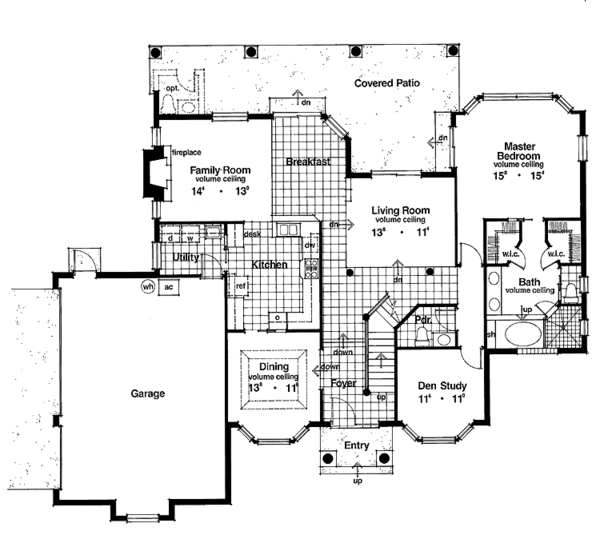

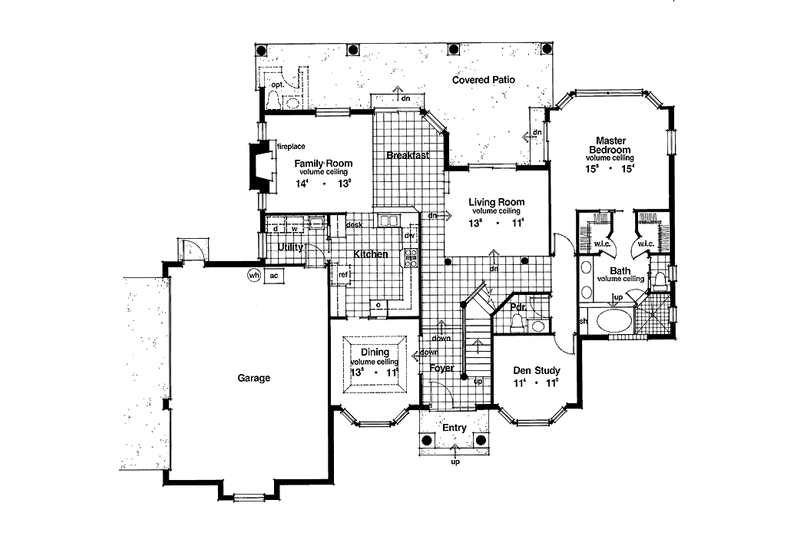

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

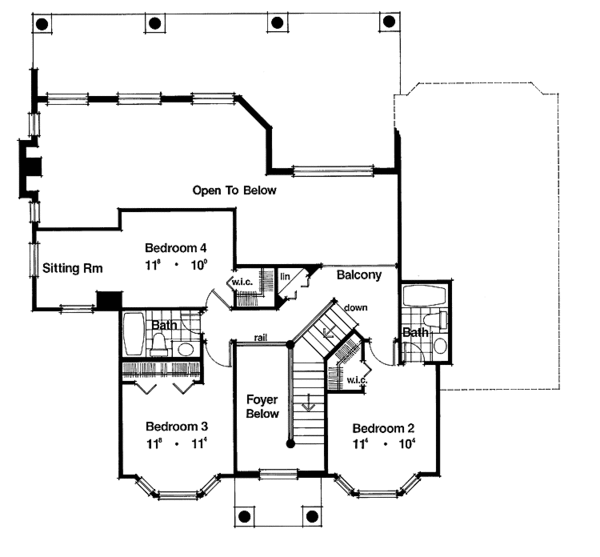

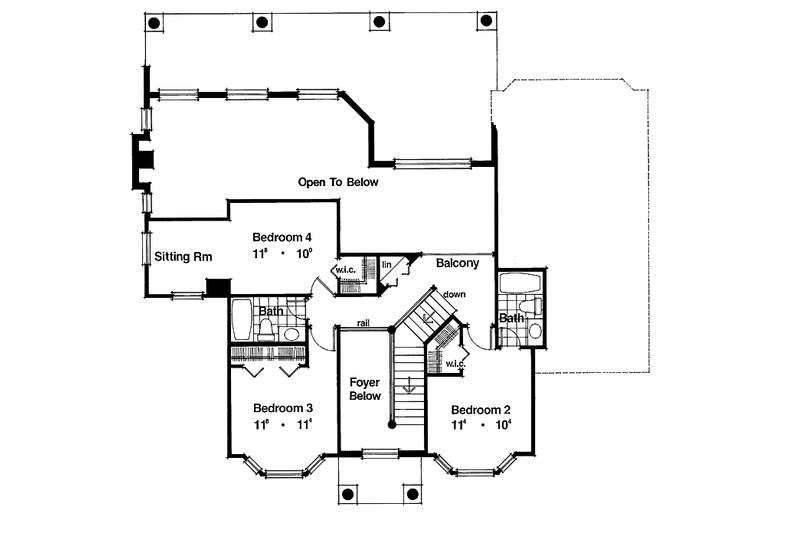

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 1828 sq/ft
Upper Floor : 906 sq/ft
Bedroom Features Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch
Loft Balcony

What's Included In This Plan Set


Home Design Services - Zirkel

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

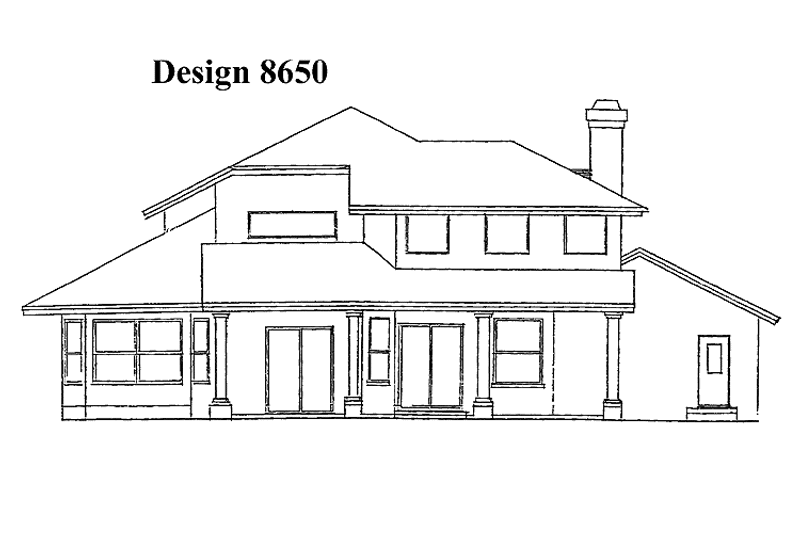

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
