Full Specs & Features
Depth : 64' 10"
Height : 23' 2"
Width : 67'
Basement Living: 842 sq/ft height 9'
First Floor: 1902 sq/ft height 9'
Garage: 436 sq/ft height 9'
Storage: 466 sq/ft height 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : siding/stone
Framing : 2"x6"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Front Entry Garage
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
70 sq/ft width 10' x depth 7'
168 sq/ft width 11' x depth 15' 4"
165 sq/ft width 11' x depth 15'
159 sq/ft width 9' x depth 17' 8"
161 sq/ft width 11' 6" x depth 14'
263 sq/ft width 13' 6" x depth 19' 6"
410 sq/ft width 20' x depth 20' 6"
302 sq/ft width 18' 6" x depth 16' 4"
190 sq/ft width 11' x depth 17' 4"
171 sq/ft width 13' x depth 13' 2"
114 sq/ft width 9' 6" x depth 12'
238 sq/ft width 13' x depth 18' 4"
48 sq/ft width 6' x depth 8'
432 sq/ft width 27' x depth 16'
76 sq/ft width 10' 6" x depth 7' 4"
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

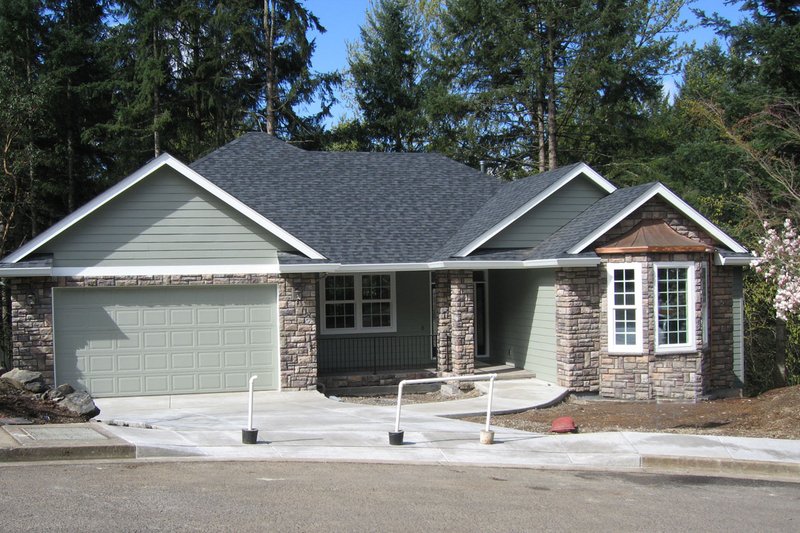

- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

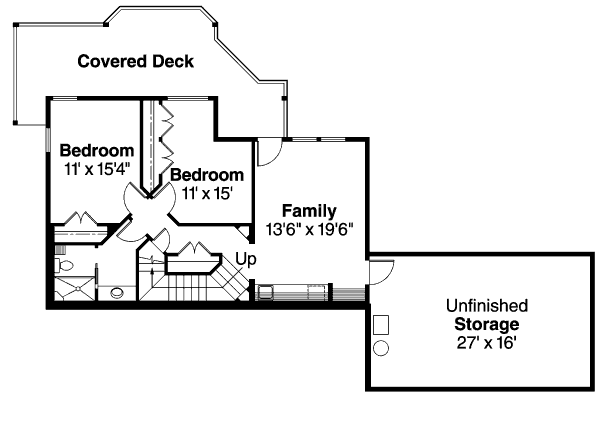

- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
