PLAN #117-570

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

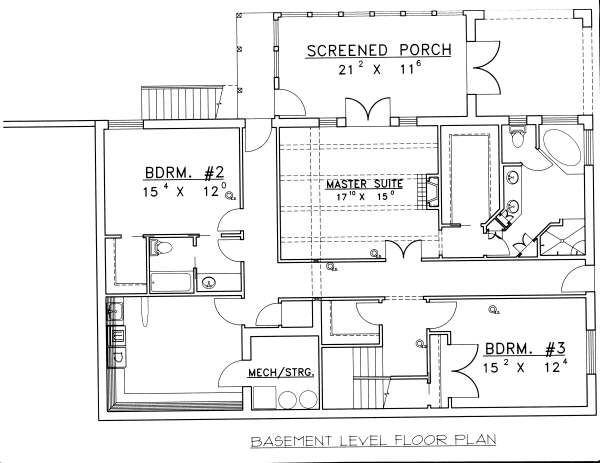

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan Plan #117-570

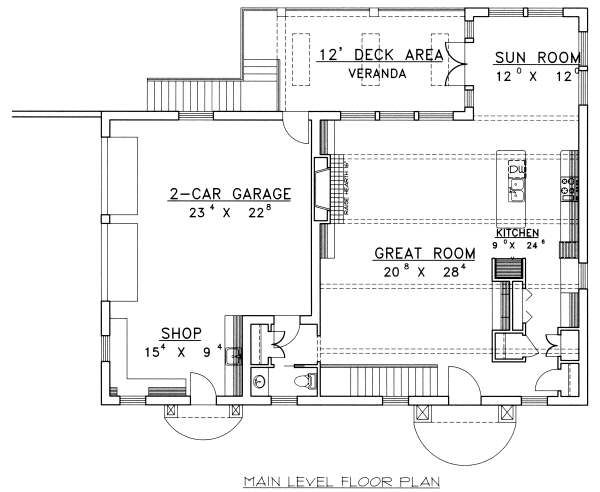

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan Plan #117-570

Full Specs & Features

Depth : 46'
Height : 20' 6"
Width : 56'
Basement Living: 1904 sq/ft
First Floor: 1327 sq/ft height 10'
Garage: 745 sq/ft
Porch: 272 sq/ft
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Primary Pitch : 7:12
Exterior Wall Framing
Framing : Concrete block
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Screened Porch Sunroom

Bedroom 2:

width 15' 4" x depth 12'

Bedroom 3:

width 15' 2" x depth 12' 4"


745 sq/ft width 23' 4" x depth 22' 8"

Great Room:

width 20' 8" x depth 28' 4"


width 9' x depth 24' 6"

Master Bedroom:

width 17' 10" x depth 15'


width 13' x depth 12'

Porch Screened:

272 sq/ft width 21' 2" x depth 11' 6"

Sun Room:

width 12' x depth 12'

Work Shop:

width 15' 4" x depth 9' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
