Key Specs
2757
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
with Code CTB2023 (limit 1)
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Get the GuidePhone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 137-168
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

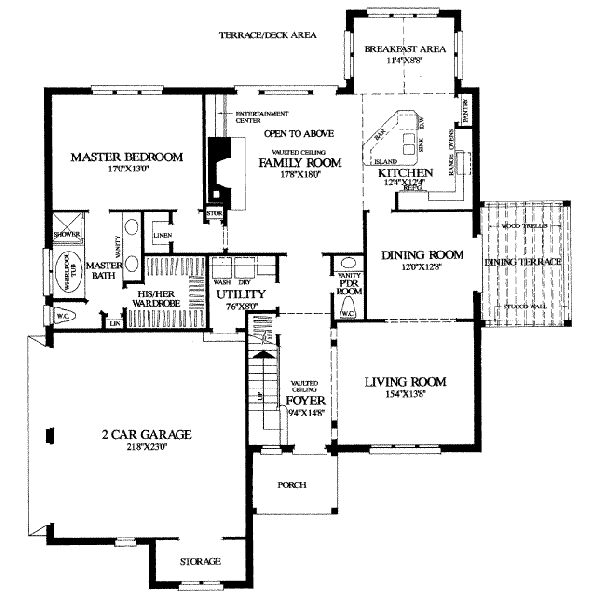

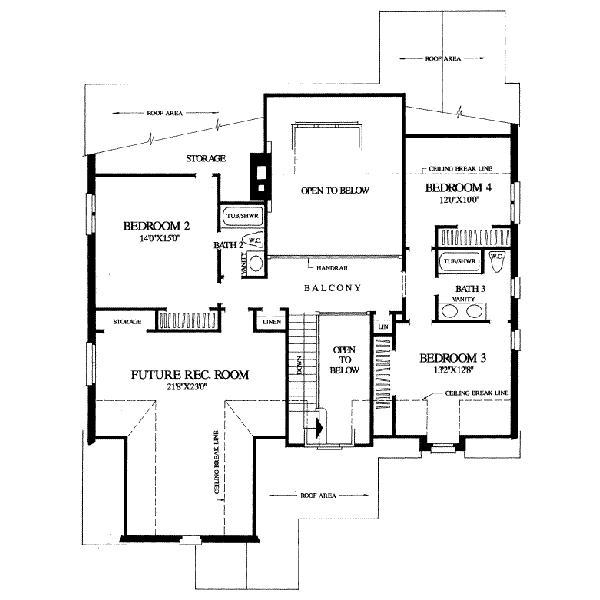

Floor Plans
Full Specs & Features
Dimension
Depth : 64' 10"
Height : 35'
Width : 48' 10"
Area
Bonus: 475 sq/ft
First Floor: 1805 sq/ft height 9'
Second Floor: 952 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Loft
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Balcony
Rooms
Bathroom 2:
46 sq/ft width 5' 9" x depth 8'
Bathroom 3:
66 sq/ft width 8' 4" x depth 8'
Bedroom 2:
210 sq/ft width 14' x depth 15'
Bedroom 3:
166 sq/ft width 13' 2" x depth 12' 8"
Bedroom 4:
120 sq/ft width 12' x depth 10'
Bonus Room - Finished:
498 sq/ft width 21' 8" x depth 23'
Breakfast Room:
98 sq/ft width 11' 4" x depth 8' 8"
Dining Room:
152 sq/ft width 12' x depth 12' 8"
Foyer:
136 sq/ft width 9' 4" x depth 14' 8"
Garage:
498 sq/ft width 21' 8" x depth 23'
Garage Storage:
42 sq/ft width 10' x depth 4' 3"
Gathering Room:
318 sq/ft width 17' 8" x depth 18'
Kitchen:
152 sq/ft width 12' 4" x depth 12' 4"
Laundry Room:
46 sq/ft width 7' 10" x depth 6'
Living Room:
209 sq/ft width 15' 4" x depth 13' 8"
Master Bathroom:
124 sq/ft width 9' 10" x depth 12' 8"
Master Bedroom:
221 sq/ft width 17' x depth 13'
Master Closet:
90 sq/ft width 10' x depth 9'
Powder Room:
23 sq/ft width 3' 4" x depth 7'
Utility Room:
60 sq/ft width 7' 6" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Designer’s rendering of front elevations
- Foundation and dimensioned floor plans
- Electrical plans
- Section through house
- All exterior elevation
- Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
- Roof Plan and Exterior Details
Plan Set
$680.00
$743.75
$935.00
$935.00
$595.00
Foundation
$0.00
Additional Options
$46.75
$85.00
$33.15
$46.75
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
