PLAN 928-177

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


Get started on your getaway with this breezy cottage from Visbeen Associates. Bring along friends and family: there’s more than enough room for them in two full guest suites on the main level and two bunk rooms upstairs. You’ll enjoy the master suite’s bright water-facing windows and access to the deck. Everyone can gather in the centrally located great room, which fronts an expansive outdoor deck, or in the upstairs loft. Plenty of windows everywhere let in fresh sea breezes.

Full Specs & Features


Dimension

Depth : 52'

Height : 29' 11"

Width : 48'

Area

First Floor: 1912 sq/ft height 10'

Second Floor: 845 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Sunroom

Vaulted / Cathedral Ceilings

Outdoor Spaces

Deck

Screened Porch

Rooms

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

143 sq/ft width 13' x depth 11'

Bedroom 4:

171 sq/ft width 14' 6" x depth 11' 10"

Bedroom 5:

171 sq/ft width 14' 6" x depth 11' 10"

Deck:

223 sq/ft width 9' 4" x depth 24'

Dining Room:

154 sq/ft width 13' x depth 11' 11"

Kitchen:

125 sq/ft width 10' 6" x depth 11' 11"

Living Room:

389 sq/ft width 16' 6" x depth 23' 7"

Master Bathroom:

80 sq/ft width 12' x depth 6' 8"

Master Bedroom:

152 sq/ft width 13' 10" x depth 11'

Porch - Screened:

142 sq/ft width 13' 4" x depth 10' 8"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

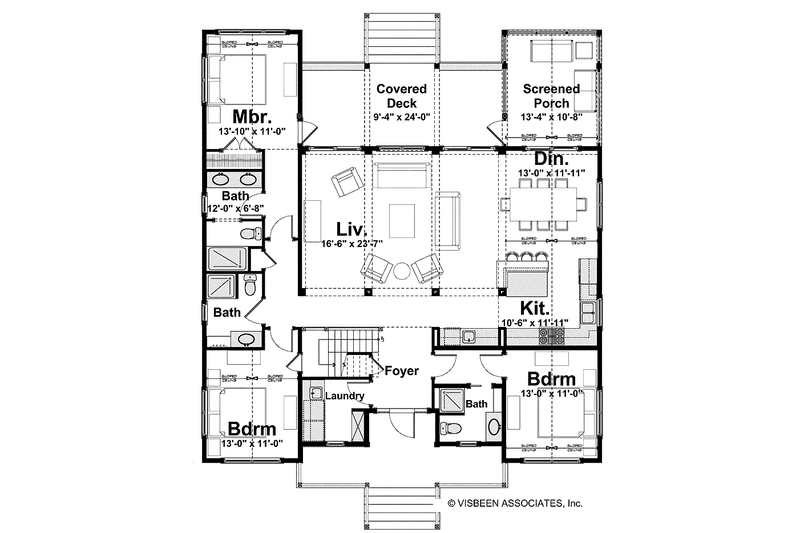

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

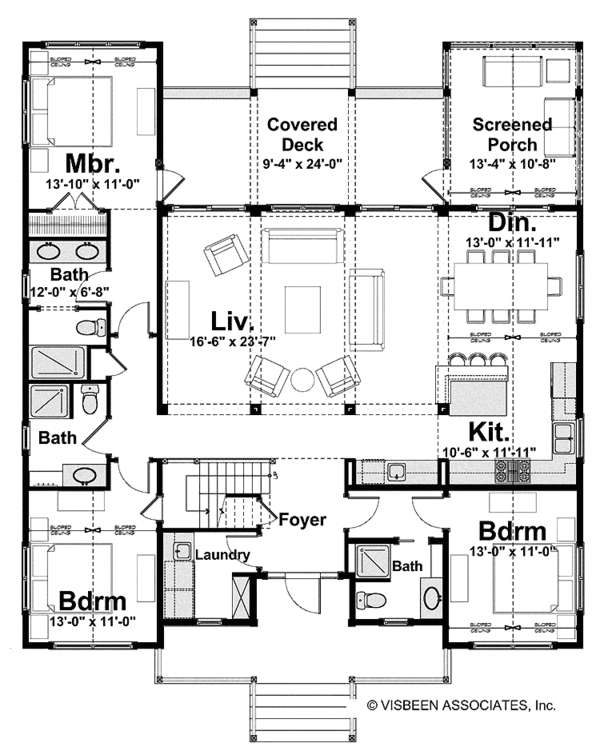

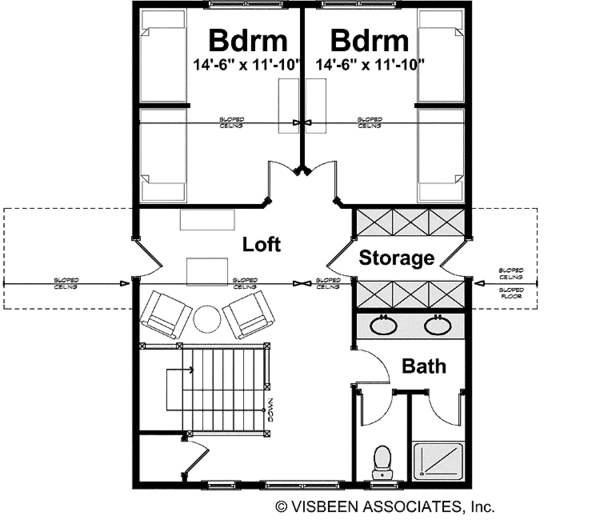

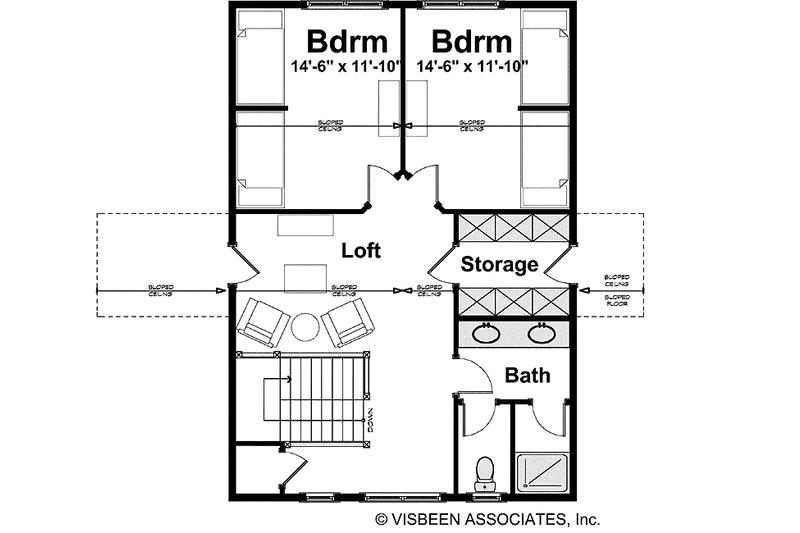

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$3495.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Island Basement:
$0.00
Foundation raised on piles or piers so that the main part of the house remains above floodwaters; typically required by FEMA, insurance companies, and county codes in shoreline areas.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse:
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
