PLAN #84-522

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This executive home features a gourmet kitchen, large family, porch for entertaining and a luxurious master suite. Warm front elevation has stone detailing and brick accents.

Floor Plans

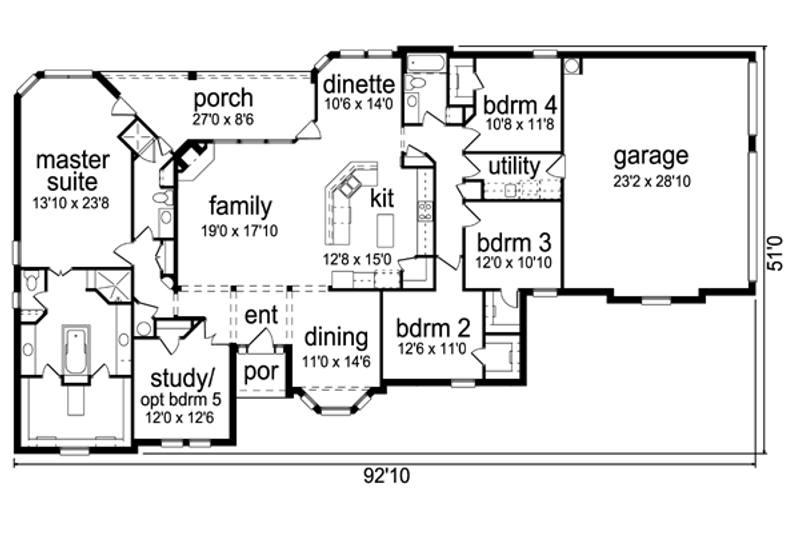

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-522

Full Specs & Features

Depth : 51'
Height : 27' 4"
Width : 92' 10"
First Floor: 2760 sq/ft height 10'
Garage: 744 sq/ft height 10'
Porch: 235 sq/ft
Garage Ceiling : 9'
Main Ceiling : 10'
Primary Pitch : 10:12
Roof Framing : stick
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Code Compliance
Irc 2003

Bedroom 2:

137 sq/ft width 12' 6" x depth 11'

Bedroom 3:

129 sq/ft width 12' x depth 10' 10"

Bedroom 4:

124 sq/ft width 10' 8" x depth 11' 8"


147 sq/ft width 10' 6" x depth 14'

Dining Room:

159 sq/ft width 11' x depth 14' 6"

Family Room:

338 sq/ft width 19' x depth 17' 10"


667 sq/ft width 23' 2" x depth 28' 10"


190 sq/ft width 12' 8" x depth 15'

Master Suite:

327 sq/ft width 13' 10" x depth 23' 8"

Porch - Rear:

229 sq/ft width 27' x depth 8' 6"


150 sq/ft width 12' x depth 12' 6"

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

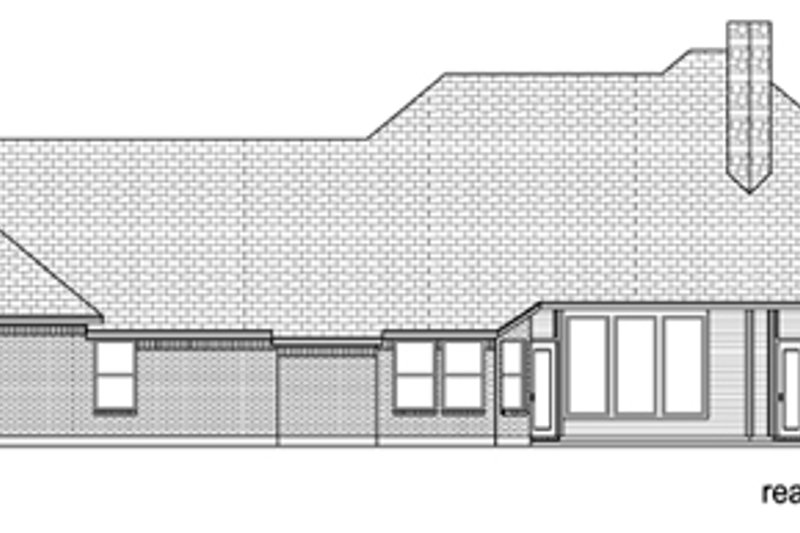

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Recently Viewed House Plans
