Key Specs


2771
sq ft

3
Beds

2
Baths

1
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

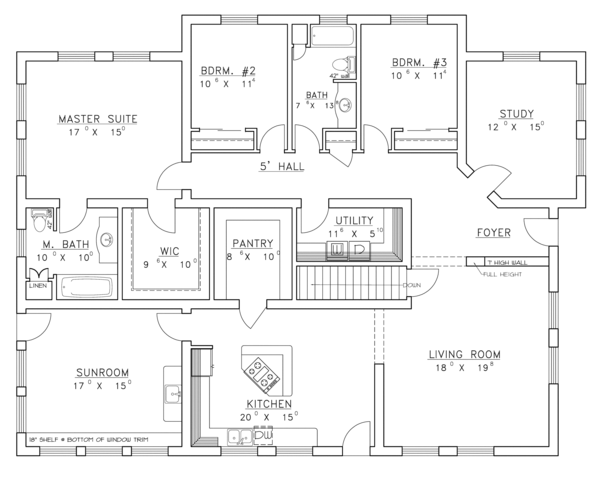

Floor Plan - Main Floor Plan

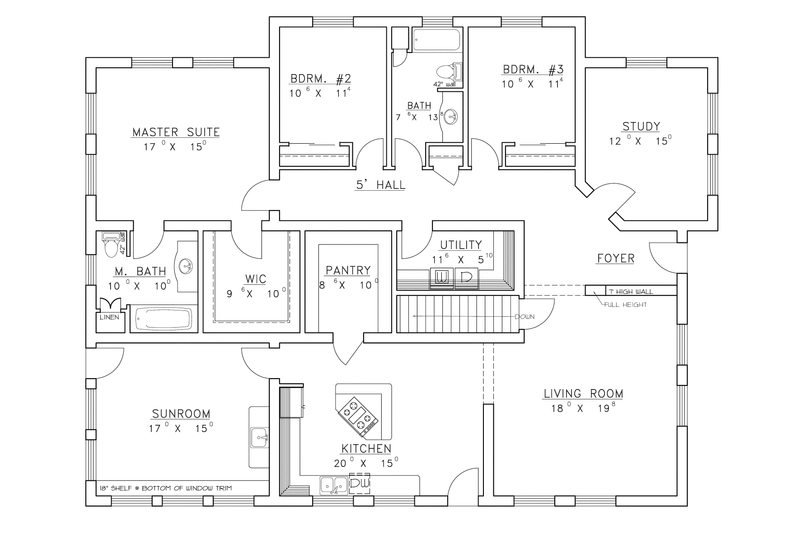

Contemporary Floor Plan - Main Floor Plan Plan #117-853

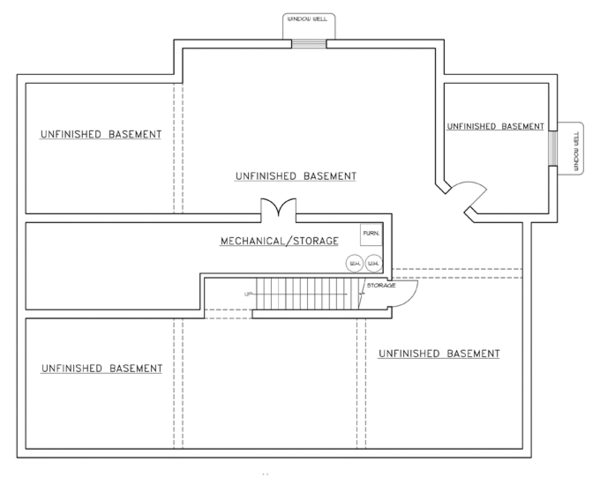

Floor Plan - Lower Floor Plan

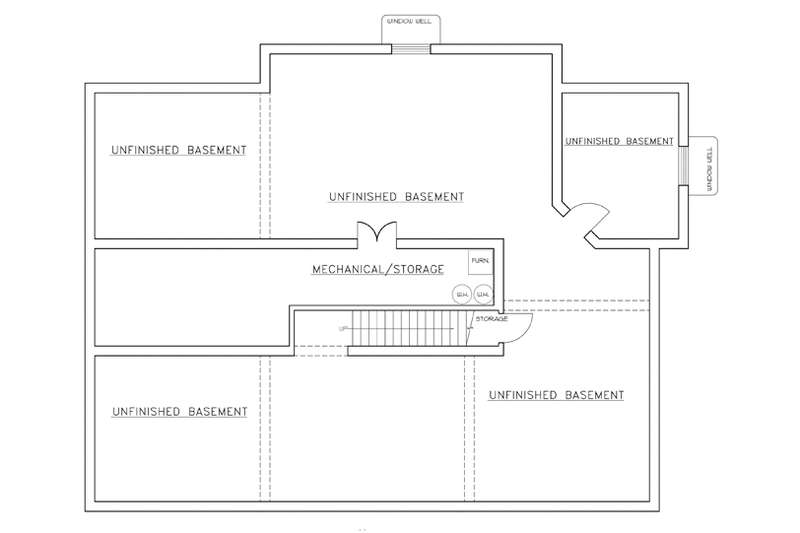

Contemporary Floor Plan - Lower Floor Plan Plan #117-853

Full Specs & Features


Dimension
Depth : 48'
Height : 13' 6"
Width : 62'
Area
Basement Unfinished: 2771 sq/ft height 10'
First Floor: 2771 sq/ft height 10'
Roof
Roof Framing : Truss
Roof Type : Build-Up
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Storage Area
Sunroom
Outdoor Spaces
Screened Porch
Rooms

Bath 2:

width 7' 8" x depth 13' 8"

Bedroom 2:

width 10' 5" x depth 11' 4"

Bedroom 3:

width 10' 6" x depth 11' 4"

Kitchen:

width 20' x depth 15'

Living Room:

width 18' x depth 19' 8"

Master Bath:

width 10' x depth 10'

Master Bedroom:

width 17' x depth 15'

Master Closet:

width 9' 5" x depth 10'

Pantry:

width 8' 6" x depth 10'

Study:

width 12' x depth 15'

Sun Room:

width 17' x depth 15'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

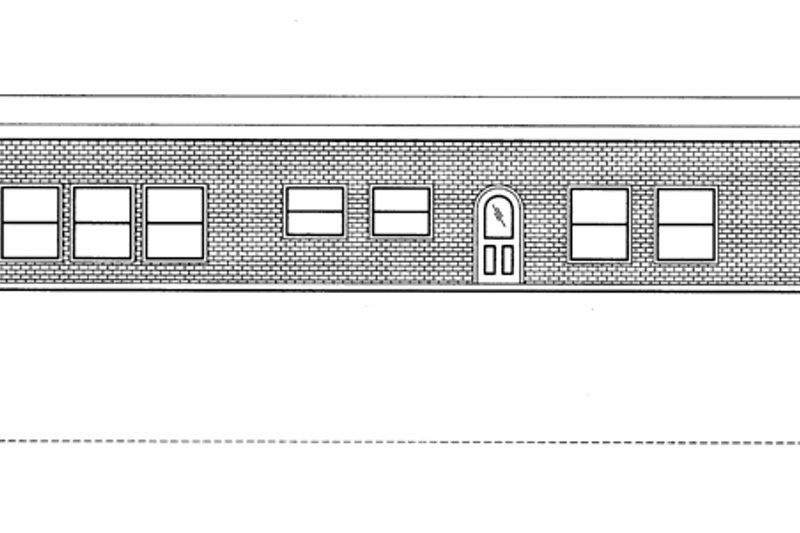

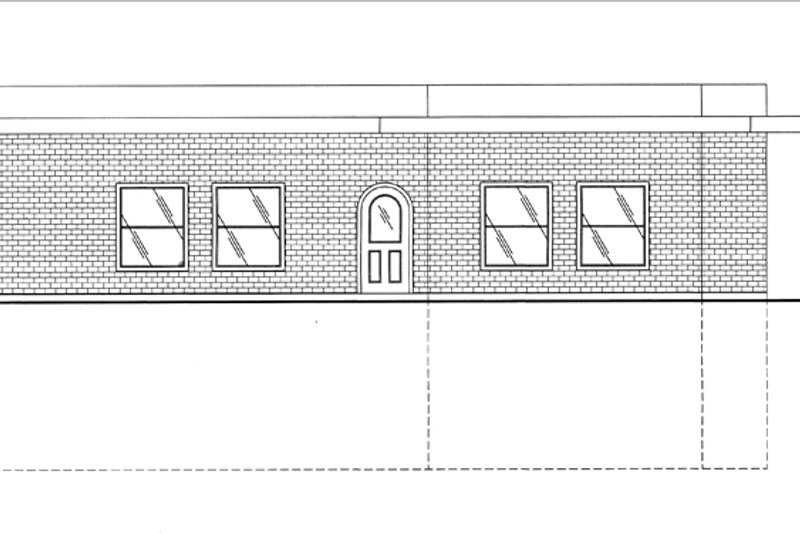

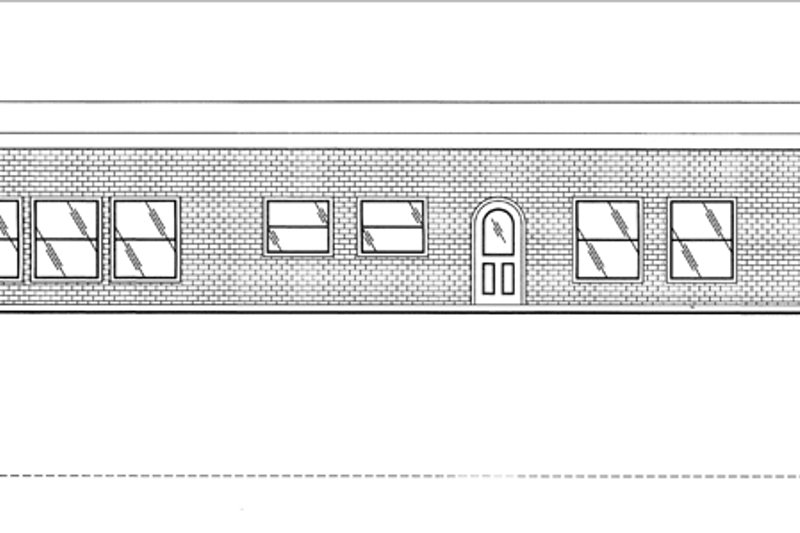

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$825.00
5 printed plan sets mailed to you.
8 Copy Set :
$900.00
8 printed plan sets mailed to you.
Reproducible Set :
$900.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1050.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$1050.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
$150.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Insulated Concrete Forms:
$0.00
Insulated Concrete Forms

Additional Options

Right-Reading Reverse :
50.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Recently Viewed Plans
