PLAN 453-140
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This traditional home boasts plenty of curb appeal, with a side-loading garage that preserves the integrity of the facade. Inside an angled staircase lies between the dining room and gathering room, which share an open floor plan and connect gracefully to the kitchen. Bonus features like a pantry and large utility room/mudroom add convenience to the first floor. With the master suite on the first floor, the three upstairs bedrooms enjoy privacy and share a study overlooking the front yard. Plenty of storage space completes this intelligent design.
Floor Plans

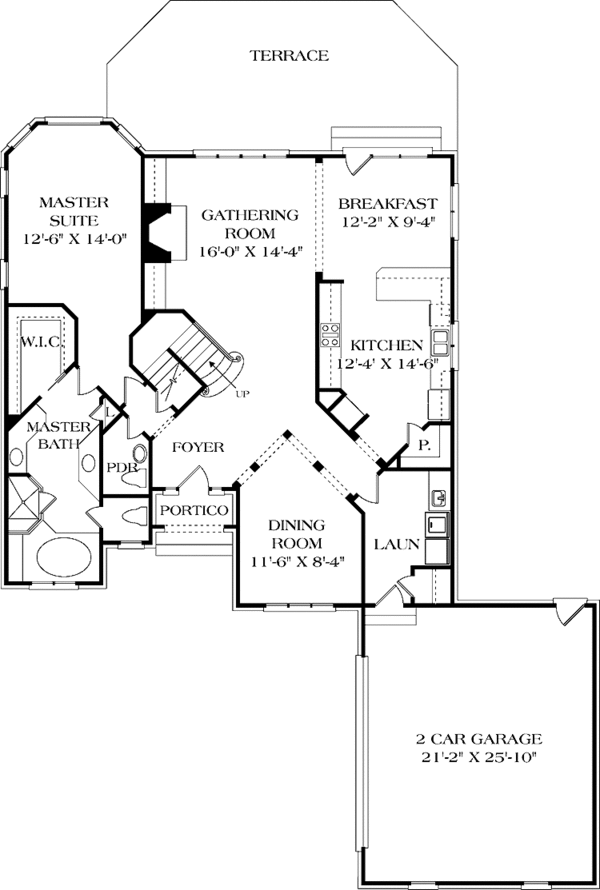

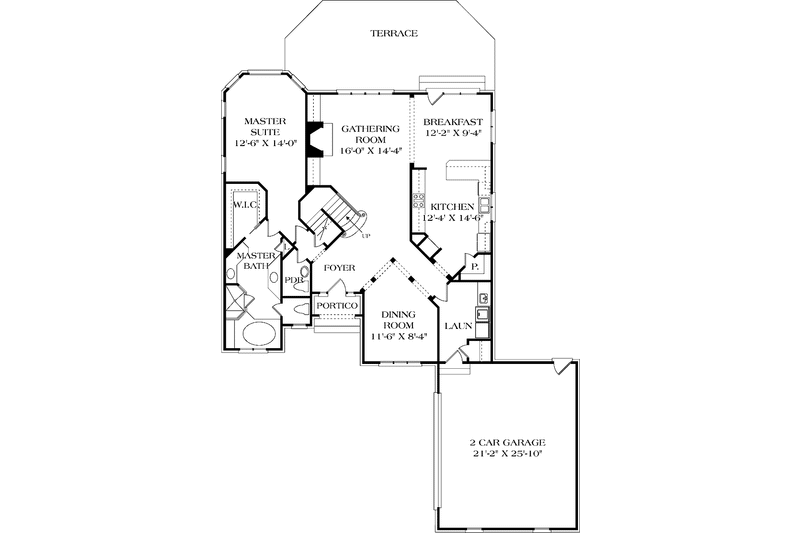

Floor Plan - Main Floor

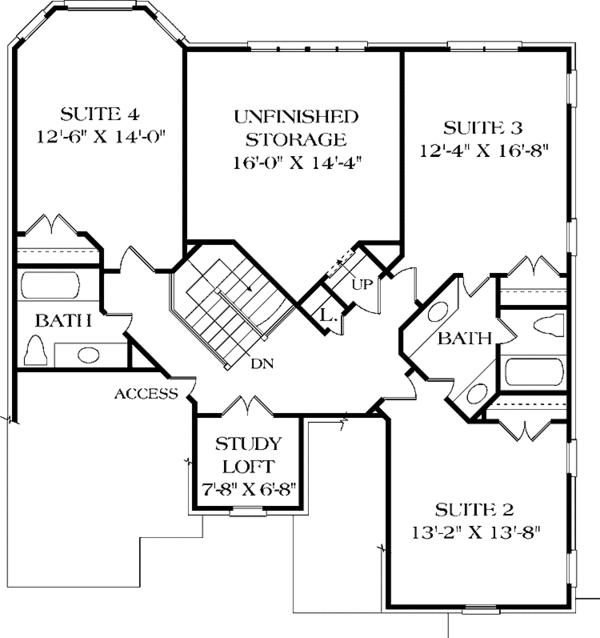

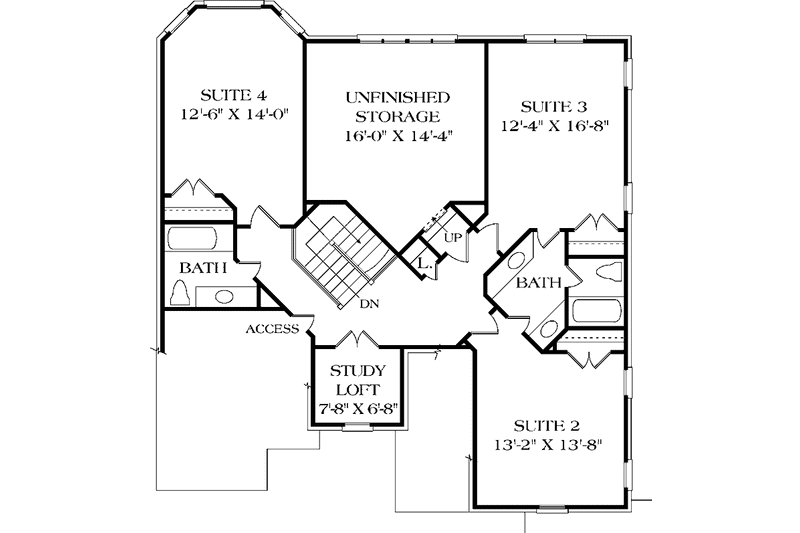

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 72'
Height : 35'
Width : 56' 4"
Area
First Floor: 1723 sq/ft
Second Floor: 1081 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Rooms
Bedroom 2:
179 sq/ft width 13' 2" x depth 13' 8"
Bedroom 3:
205 sq/ft width 12' 4" x depth 16' 8"
Bedroom 4:
175 sq/ft width 12' 6" x depth 14'
Breakfast Room:
113 sq/ft width 12' 2" x depth 9' 4"
Garage:
546 sq/ft width 21' 2" x depth 25' 10"
Gathering Room:
229 sq/ft width 16' x depth 14' 4"
Kitchen:
178 sq/ft width 12' 4" x depth 14' 6"
Loft:
51 sq/ft width 7' 8" x depth 6' 8"
Master Bedroom:
175 sq/ft width 12' 6" x depth 14'
Storage:
229 sq/ft width 16' x depth 14' 4"
What's Included In This Plan Set
This plan typically includes:Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): Dimensioned and detailed foundation plan (type as listed on home plan description). Typical foundation details, wall sections, and cornice details necessary for construction.
- Floor Plan(s): Dimensioned and detailed floor plans

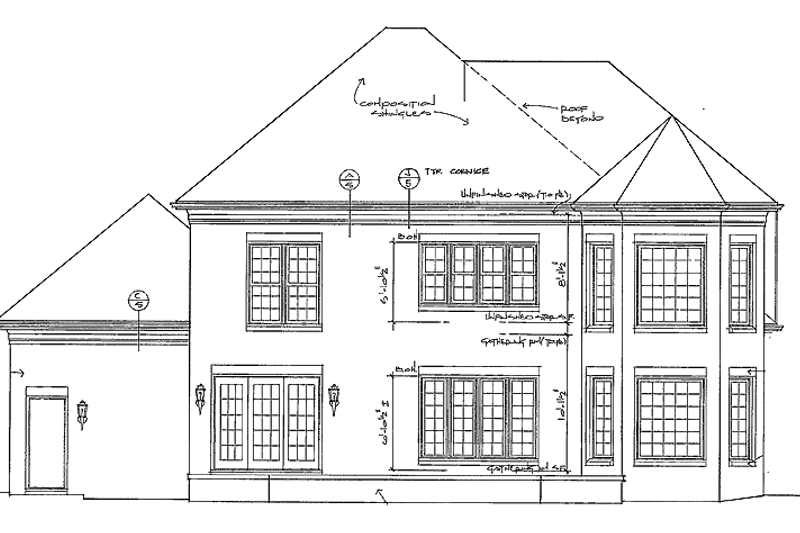

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Separate electrical plan (may be shown on floor plans in some cases). Shows the location of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Framing plans (framing may be shown on floor plans in some cases.) If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1147.50
$1147.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1147.50
$1147.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$42.50
$42.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
