PLAN #943-44

Select Plan Set Options
What's included?
Additional Construction Sets
Mirror Reversed Sets
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #943-44

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

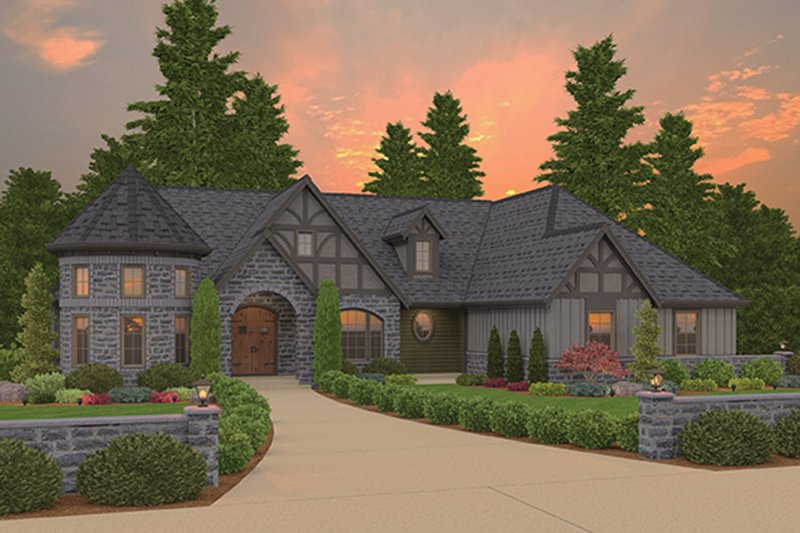

This stunning home combines grand, European-influenced style with a modern open layout. A study sits inside that castle-like turret, with four windows letting in light. In the main gathering areas, it's easy to move between the great room, the island kitchen, and the breakfast nook. The split-bedroom layout grants lots of privacy to the deluxe master suite, which boasts a huge walk-in closet (nicely split into segments to make sharing easier), a separate tub and shower, and two sinks. Two more bedrooms share a Jack and Jill bath on the opposite side of the home. Don't miss the walk-in pantry and the dining room's fireplace (perfect for setting an elegant mood).

Floor Plans

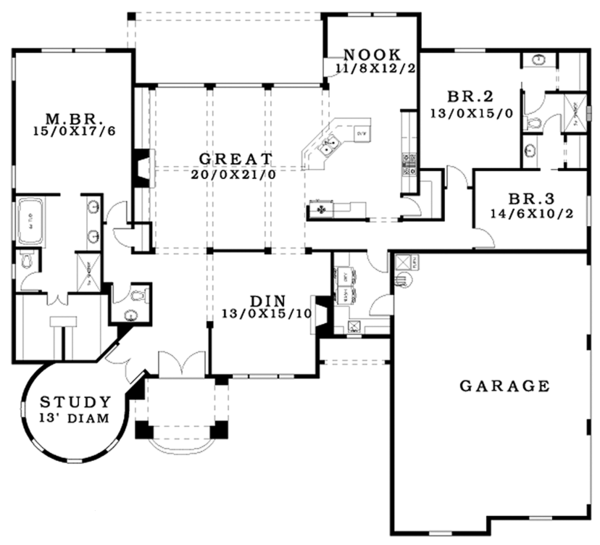

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #943-44

Full Specs & Features

Dimension Depth : 67' 8"
Height : 26'
Width : 75'
Area Garage : 917 sq/ft
Main Floor : 2821 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Bedroom 2 195 sq/ft width 13' x depth 15'
Bedroom 3 147 sq/ft width 14' 6" x depth 10' 2"
Covered Front Porch 84 sq/ft width 0" x depth 0"
Covered Rear Porch 223 sq/ft width 0" x depth 0"
Dining Room 206 sq/ft width 13' x depth 15' 10"
Garage 917 sq/ft width 0" x depth 0"
Great Room 420 sq/ft width 20' x depth 21'
Master Bedroom 263 sq/ft width 15' x depth 17' 6"
Nook 142 sq/ft width 11' 8" x depth 12' 2"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
