PLAN 132-563

Key Specs

2829
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Don't let the super-sleek modern exterior make you think that this home values form over function, when in fact every detail is geared towards comfort. The foyer introduces outstanding sightlines, with a view directly through the great room to the backyard. The kitchen's snack-bar island flows without interruption into the open dining room, which in turn opens out to the covered patio. The handy mudroom/laundry area keeps everything organized on the way in from the garage. A large shower adds a contemporary touch in the master suite, which is buffered from public view by a private foyer. Upstairs, two more bedrooms share a hall bath and access to the media room. Other standout details include the split, three-car garage and a study that looks out to the patio.

Floor Plans

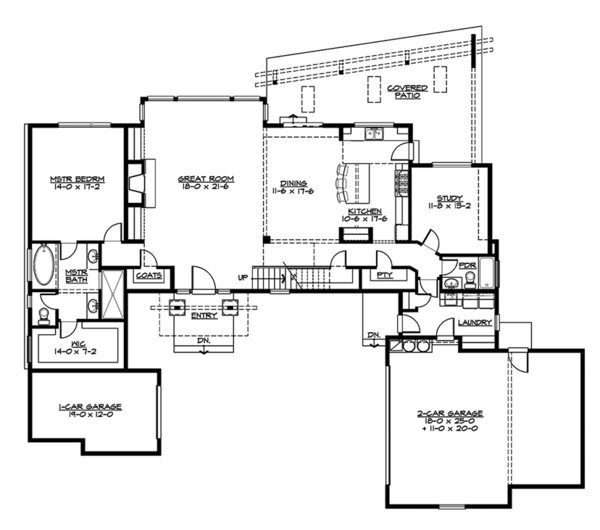

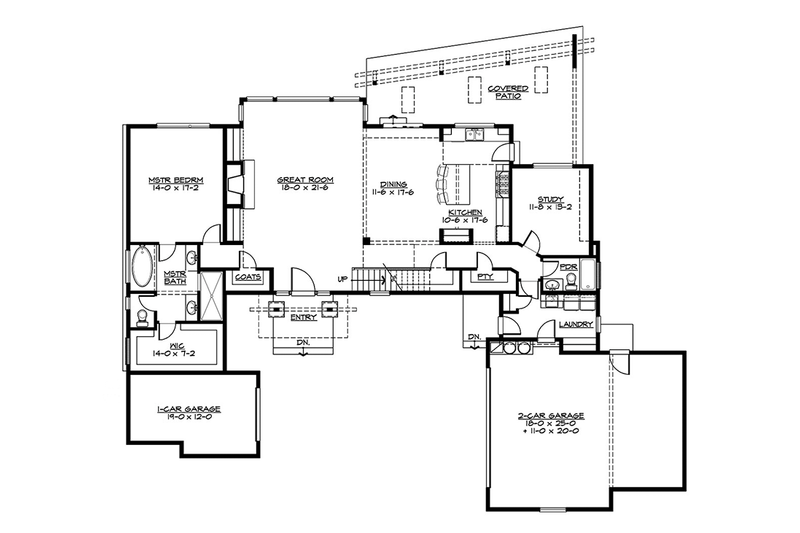

Floor Plan - Main Floor Plan

Reverse

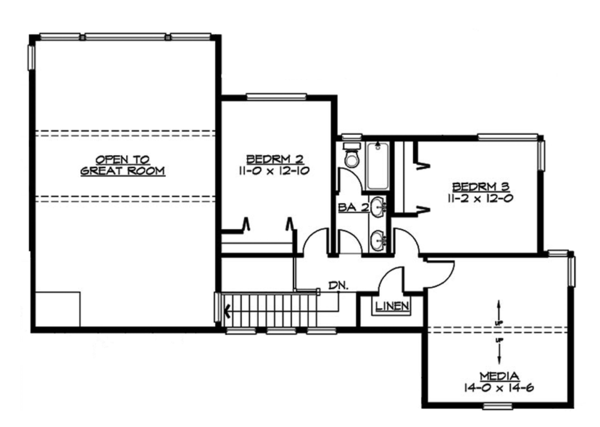

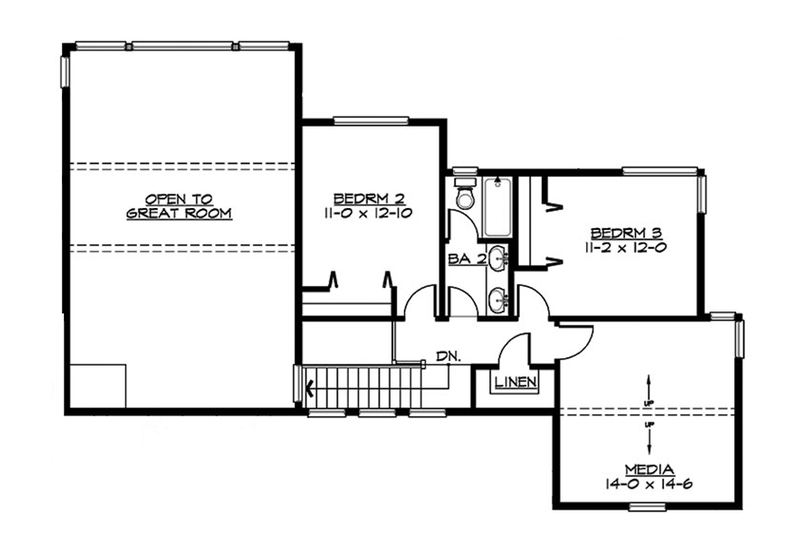

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 71' 6"
Height : 26'
Width : 84'

Area

First Floor: 2094 sq/ft height 9'
Patio: 939 sq/ft
Second Floor: 735 sq/ft height 8'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 3:12
Roof Framing : Conventional
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch

Rooms

1 Car Garage:

228 sq/ft width 19' x depth 12'

2 Car Garage:

450 sq/ft width 18' x depth 25'

Bedroom 2:

141 sq/ft width 11' x depth 12' 10"

Bedroom 3:

134 sq/ft width 11' 2" x depth 12'

Dining Area:

201 sq/ft width 11' 6" x depth 17' 6"

Garage Storage:

220 sq/ft width 11' x depth 20'

Great Room:

387 sq/ft width 18' x depth 21' 6"

Kitchen:

184 sq/ft width 10' 6" x depth 17' 6"

Master Closet:

100 sq/ft width 14' x depth 7' 2"

Master bath:

width 14' x depth 11' 6"

Master Bedroom:

240 sq/ft width 14' x depth 17' 2"

Media:

203 sq/ft width 14' x depth 14' 6"

Study:

154 sq/ft width 11' 8" x depth 13' 2"

Utility:

width 14' x depth 6' 6"

What's Included In This Plan Set

Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.

If you are building this plan in the state of Washington, please call us before placing your order.

Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

» See important information before purchasing.

Plan Set

PDF Set : $1400.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1500.00	5 printed plan sets mailed to you.
CAD Set : $2400.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $282.90	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $424.35	Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement: $848.70	Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Right-Reading Reverse : $150.00	Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
