PLAN 42-504
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 28'
Width : 59' 6"
Area
First Floor: 1686 sq/ft
Second Floor: 1143 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Fireplace
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6'
Bedroom 2:
156 sq/ft width 12' 6" x depth 12' 6"
Bedroom 2 Closet:
18 sq/ft width 2' x depth 9'
Bedroom 3:
128 sq/ft width 11' 4" x depth 11' 4"
Bedroom 3 Closet:
18 sq/ft width 2' x depth 9'
Bedroom 4:
124 sq/ft width 10' 10" x depth 11' 6"
Bedroom 4 Closet:
18 sq/ft width 2' x depth 9'
Breakfast Room:
176 sq/ft width 11' x depth 16'
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
91 sq/ft width 7' x depth 13'
Garage:
581 sq/ft width 25' 10" x depth 22' 6"
Garage Storage:
38 sq/ft width 2' x depth 19'
Gathering Room:
318 sq/ft width 17' 8" x depth 18'
Hall Bathroom:
50 sq/ft width 5' x depth 10'
Kitchen:
110 sq/ft width 9' 6" x depth 11' 8"
Master Bathroom:
120 sq/ft width 8' x depth 15'
Master Bedroom:
252 sq/ft width 14' x depth 18'
Master Closet:
72 sq/ft width 6' x depth 12'
Porch - Front:
144 sq/ft width 6' x depth 24'
Porch - Rear:
200 sq/ft width 10' x depth 20'
Study:
168 sq/ft width 12' x depth 14'
Utility Room:
72 sq/ft width 6' x depth 12'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

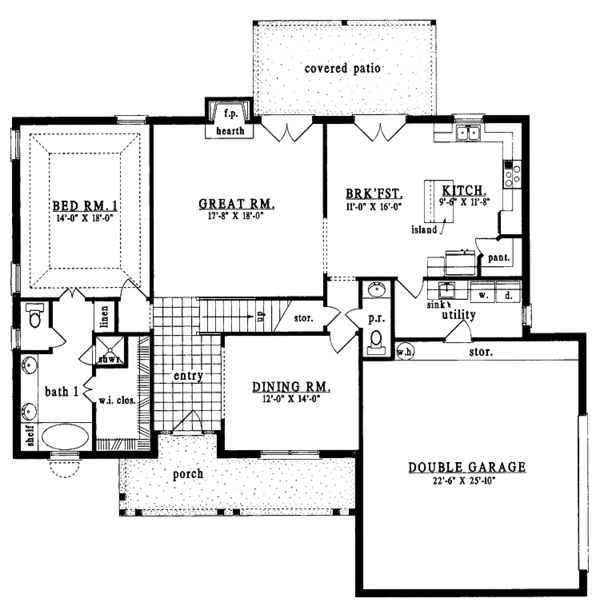

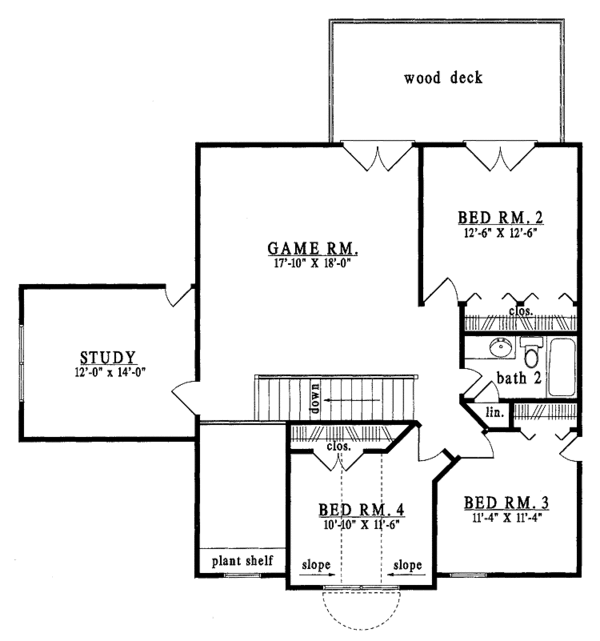

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
