Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

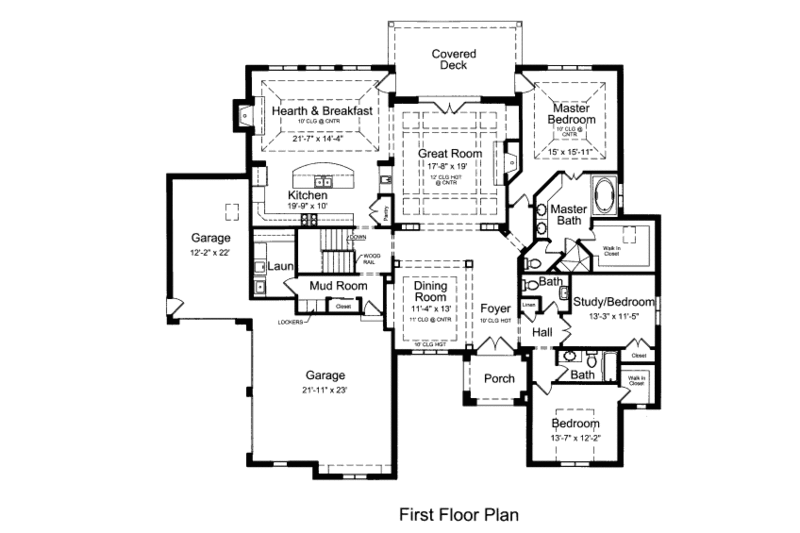

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #46-444

Full Specs & Features

Depth : 64' 10"
Height : 27' 6"
Width : 77' 2"
First Floor: 2836 sq/ft
Garage: 805 sq/ft
Main Ceiling : 9'
Roof Framing : Truss
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

165 sq/ft width 13' 7" x depth 12' 2"

Bedroom 2 Closet:

34 sq/ft width 5' 6" x depth 6' 3"

Bedroom 3:

151 sq/ft width 13' 3" x depth 11' 5"

Bedroom 3 Closet:

11 sq/ft width 5' 6" x depth 2' 1"


228 sq/ft width 19' x depth 12'

Dining Room:

147 sq/ft width 11' 4" x depth 13'


103 sq/ft width 7' 2" x depth 14' 5"


504 sq/ft width 21' 11" x depth 23'

Garage Two:

267 sq/ft width 12' 2" x depth 22'

Great Room:

176 sq/ft width 17' 8" x depth 10'

Hall Bathroom:

47 sq/ft width 9' 6" x depth 5'

Hall Closet:

6 sq/ft width 3' x depth 2' 1"

Hearth Room:

309 sq/ft width 21' 7" x depth 14' 4"


189 sq/ft width 19' 9" x depth 9' 7"

Laundry Room:

72 sq/ft width 6' 8" x depth 10' 10"

Master Bathroom:

186 sq/ft width 12' x depth 15' 7"

Master Bedroom:

238 sq/ft width 15' x depth 15' 11"

Master Closet:

81 sq/ft width 9' 10" x depth 8' 3"

Mud Room:

57 sq/ft width 9' 7" x depth 6'

Porch - Front:

81 sq/ft width 10' x depth 8' 2"

Porch - Rear:

228 sq/ft width 19' x depth 12'

Powder Room:

43 sq/ft width 7' 6" x depth 5' 10"

Toilet Closet:

30 sq/ft width 6' x depth 5'

What's Included In This Plan Set

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section show typical framing detail of house.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
