PLAN 84-608
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 90' 10"
Height : 26'
Width : 62' 10"
Area
First Floor: 2841 sq/ft
Garage: 749 sq/ft
Ceiling
Ceiling Details : 11' Vault in Master 10' Vault in Library
Garage Ceiling : 9'
Main Ceiling : 12'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

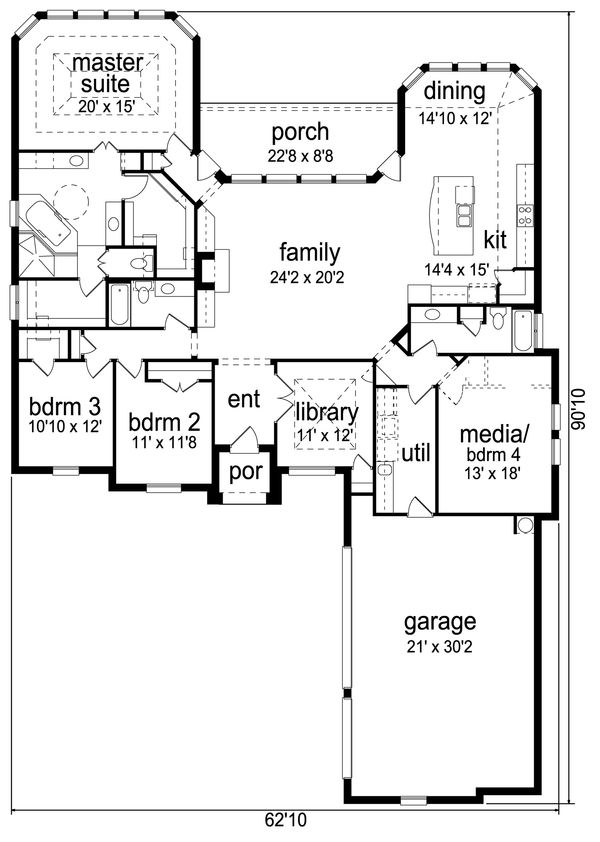

Rooms
Bedroom 2:
width 11' x depth 11' 8"
Bedroom 3:
width 10' 10" x depth 12'
Dining:
width 14' 10" x depth 12'
Family Room:
width 24' 2" x depth 20' 2"
Garage:
749 sq/ft width 21' x depth 30' 2"
Kitchen:
width 14' 4" x depth 15'
Library:
width 11' x depth 12'
Master Bedroom:
width 20' x depth 15'
Media:
width 13' x depth 18'
Porch Front:
35 sq/ft
Porch Rear:
187 sq/ft width 22' 8" x depth 8' 8"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
