Key Specs
2843
sq ft
3
Beds
2.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBFALL
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-536
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 64'
Height : 34' 6"
Width : 56'
Area

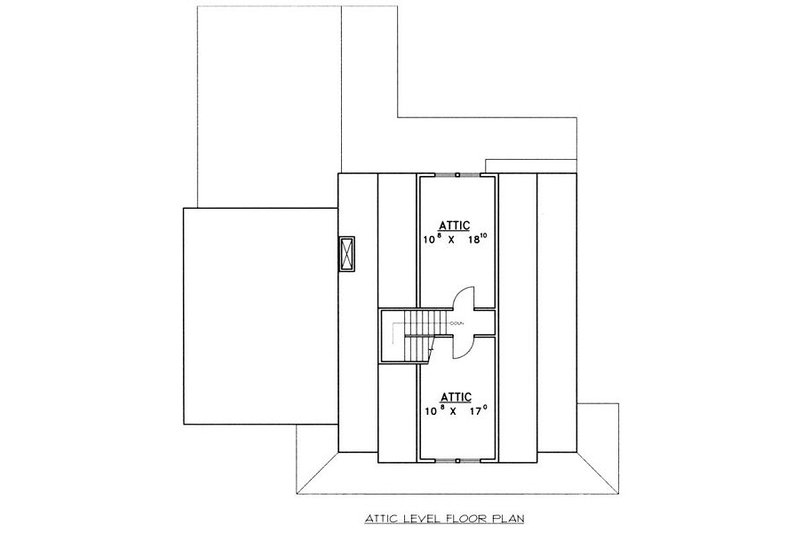

Attic: 484 sq/ft
Bonus: 330 sq/ft
First Floor: 1977 sq/ft
Garage: 675 sq/ft
Second Floor: 866 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
144 sq/ft width 12' x depth 12'
Bonus Room - Unfinished:
322 sq/ft width 21' 6" x depth 15'
Breakfast Nook:
144 sq/ft width 12' x depth 12'
Dining Room:
181 sq/ft width 12' 8" x depth 14' 4"
Foyer:
84 sq/ft width 7' 8" x depth 11'
Garage:
678 sq/ft width 21' 8" x depth 31' 4"
Great Room:
395 sq/ft width 21' x depth 18' 10"
Kitchen:
186 sq/ft width 13' x depth 14' 4"
Master Bedroom:
302 sq/ft width 19' 6" x depth 15' 6"
Patio:
279 sq/ft width 21' 6" x depth 13'
Study - Upper:
129 sq/ft width 12' x depth 10' 9"
What's Included In This Plan Set
- Foundation Plan(s): Footing locations, foundation details, etc.

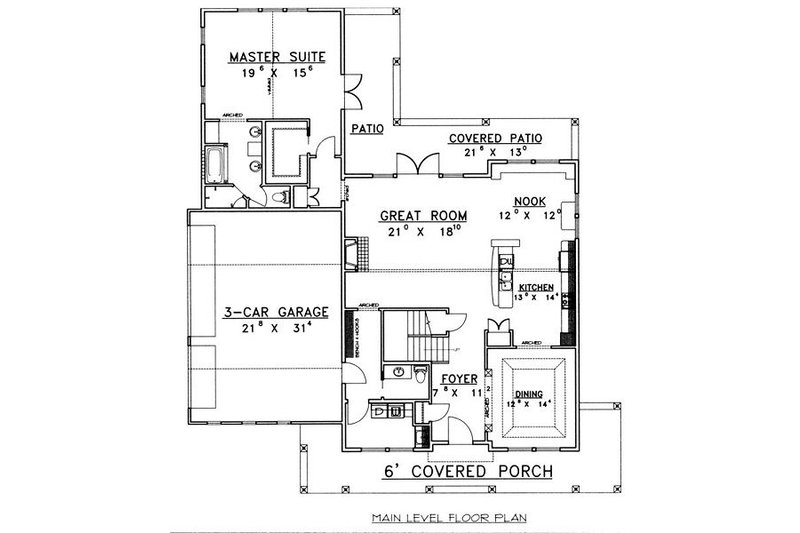

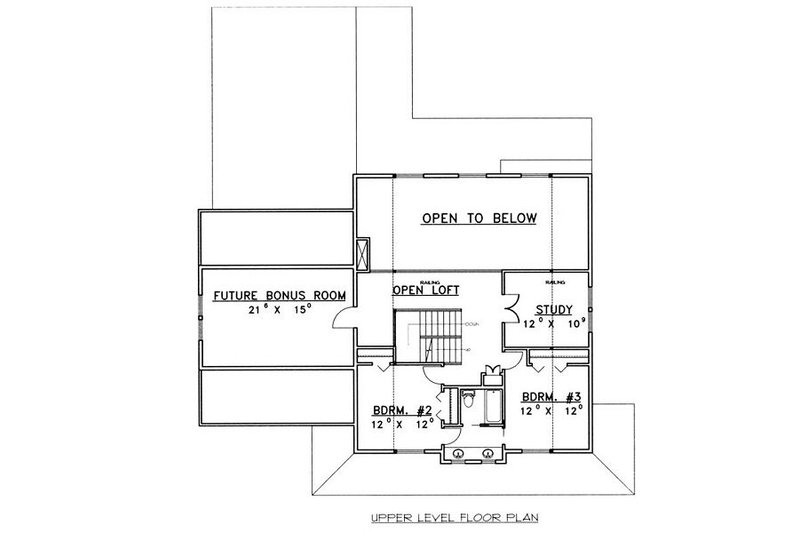

- Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions

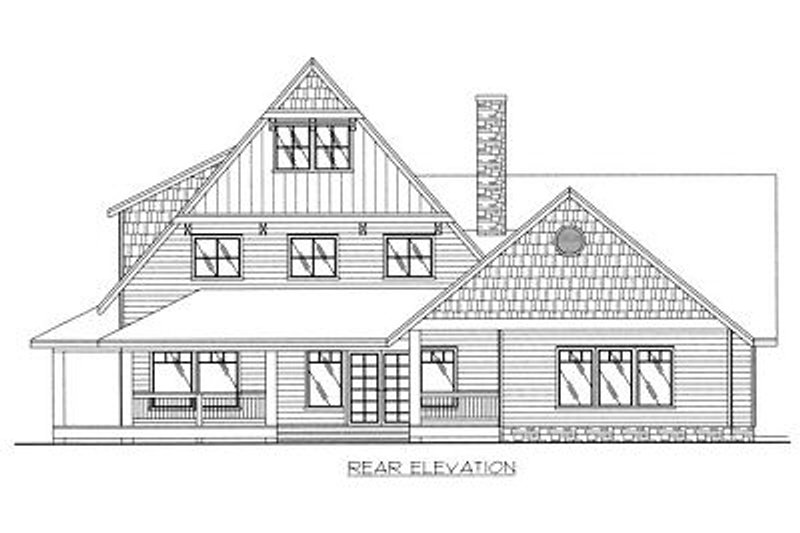

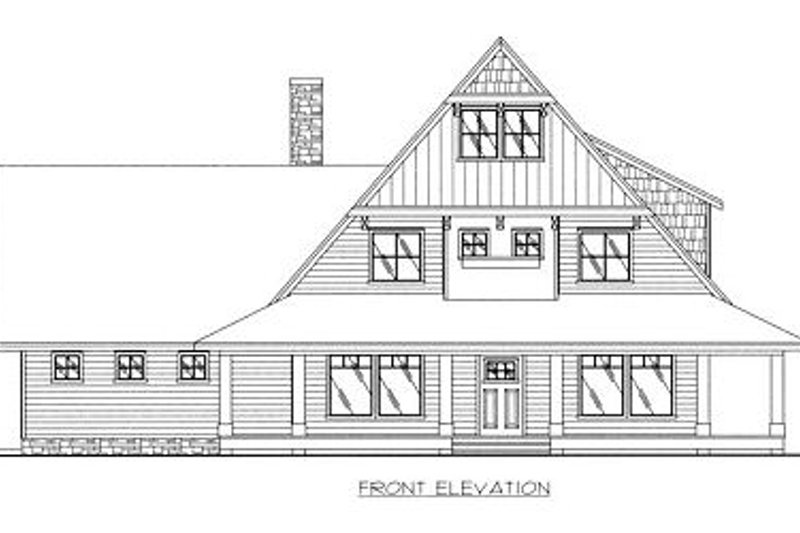

- Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
- Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
- Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Construction Notes / Detail(s): Referencing the entirety of the project.
- Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Plan Set
$1143.25
$1143.25
$1738.25
Foundation
$0.00
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
