PLAN #310-707

ON SALE!

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$45.00/each
Mirror Reversed Sets
$0.00
Subtotal
NOW $1075.50
You save $119.50
(10% savings)
Sale ends soon!
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #310-707

Key Specs


2847
sq ft

3
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

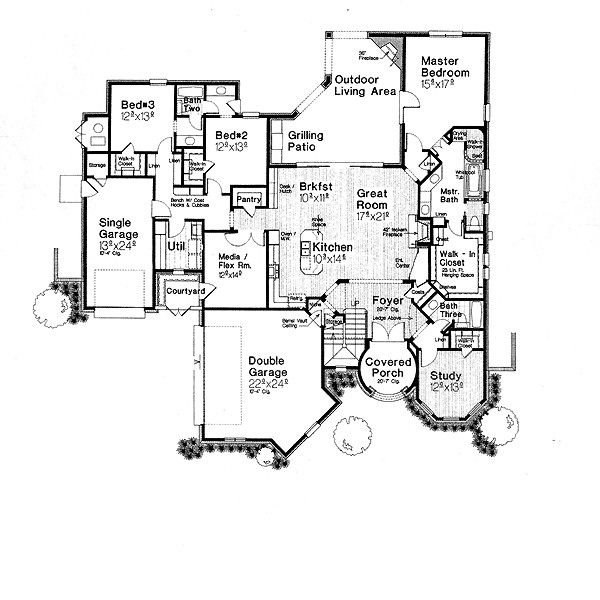

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #310-707

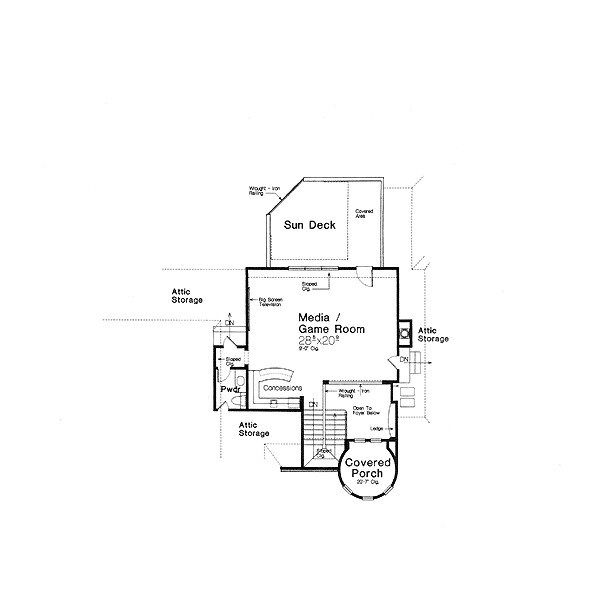

Floor Plan - Other Floor Plan
European Floor Plan - Other Floor Plan Plan #310-707

Full Specs & Features


Dimension
Depth : 78' 3"
Height : 37'
Width : 75'
Area
Bonus: 750 sq/ft height 9'
First Floor: 2847 sq/ft height 10'
Garage: 902 sq/ft height 10' 4"
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : 2x4
Primary Pitch : 16:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Play Flex Room
Storage Area
Wet Bar
Loft
Garage Features
Split Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Balcony
Outdoor Kitchen Grill
More
Jack & Jill Bath
Code Compliance
Irc 2006
Rooms

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 3:

159 sq/ft width 12' 3" x depth 13'

Breakfast:

148 sq/ft width 10' 3" x depth 14' 6"

Garage:

534 sq/ft width 22' 3" x depth 24'

Garage Two:

312 sq/ft width 13' x depth 24'

Great Room:

367 sq/ft width 17' 6" x depth 21'

Kitchen:

148 sq/ft width 10' 3" x depth 14' 6"

Master Bedroom:

263 sq/ft width 15' 6" x depth 17'

Media Room:

591 sq/ft width 28' 6" x depth 20' 9"

Study:

156 sq/ft width 12' x depth 13'

What's Included In This Plan Set

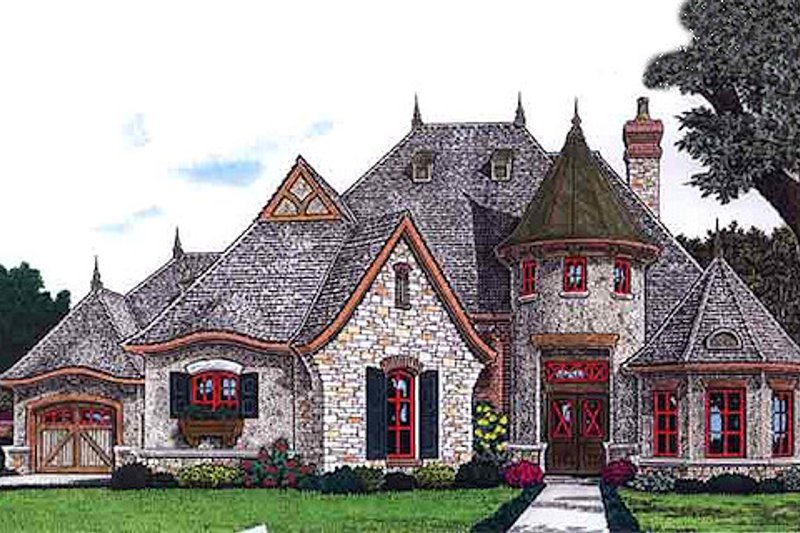

  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1075.50
5 printed plan sets mailed to you.
8 Copy Set :
$1201.50
8 printed plan sets mailed to you.
PDF Set :
$1336.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1336.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2043.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$1026.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.
