Key Specs
2847
sq ft
4
Beds
4
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1083-21
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

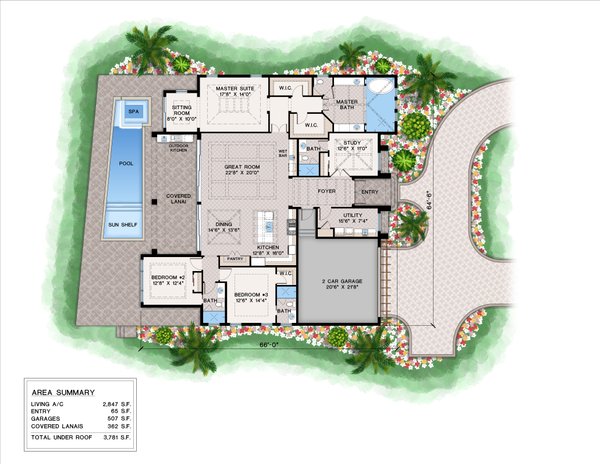

Floor Plans
Full Specs & Features
Dimension
Depth : 66'
Width : 64' 6"
Area
Garage : 507 sq/ft
Main Floor : 3781 sq/ft
Patios : 362 sq/ft
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Master Sitting Area
Wet Bar
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
Outdoor Kitchen Grill
More
Jack & Jill Bath
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
-
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
- Material Labels
- Foor-to-Floor Heights
- Roof Slope Indicators
-
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
- Door and Window Sizes
- Completely Dimensioned Floor Plan
- Room Labels and Interior Room Sizes
- Electrical Layouts
- Building Section Markers
- All Electrical Outlets, Fixtures, and Switching
- Floor and Deck Joist Size and Spacing
- Rough-in Plumbing Location (if applicable)
- Mechanical Equipment Locations (if applicable)
- Electrical Locations (if applicable)
-
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
- All Beam and Header Heights and Locations
- All Hips, Gables, Ridges and Valleys
- Building Section Markers
-
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
- Floor Joist Size and Spacing
- Floor-to-Floor Heights
- Non-Typical Plate Heights Indicated
-
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
- All Labels Indicating Wall Construction
- Foundation Wall Thickness and Reinforcing
- Insulation Type and Thickness
-
Miscellaneous Notes and Details
- Miscellaneous General Notes
- Stairway details (if applicable)
-
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
Plan Set
$2000.00
$2000.00
Foundation
$0.00
Framing
$0.00
$600.00
$600.00
Additional Options
$600.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
