Full Specs & Features
Depth : 51'
Height : 31'
Width : 63'
Bonus: 430 sq/ft

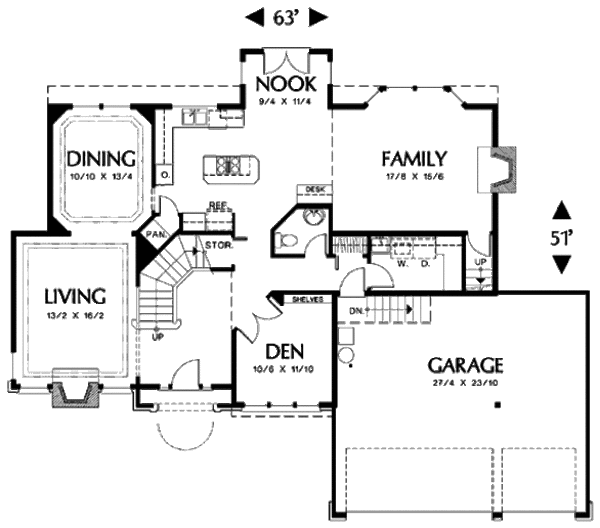

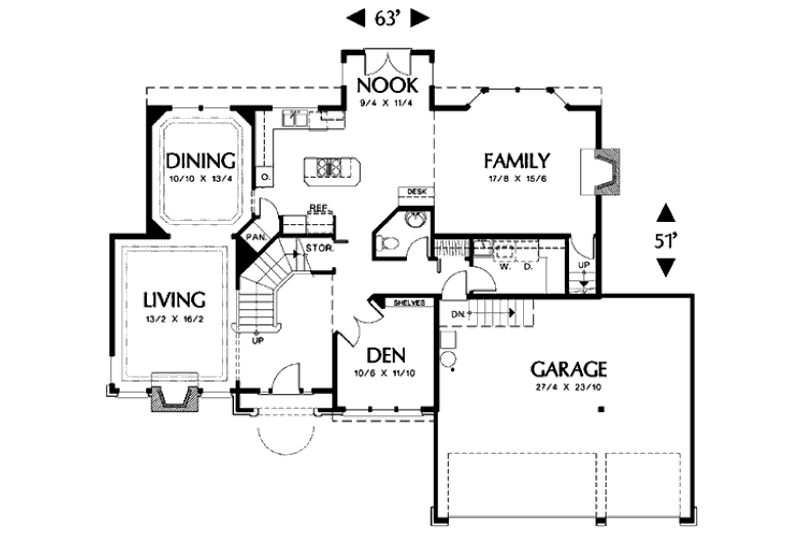

First Floor: 1484 sq/ft height 9'

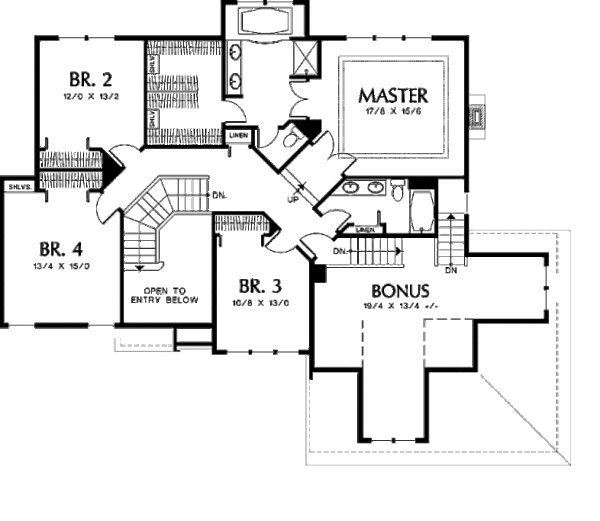

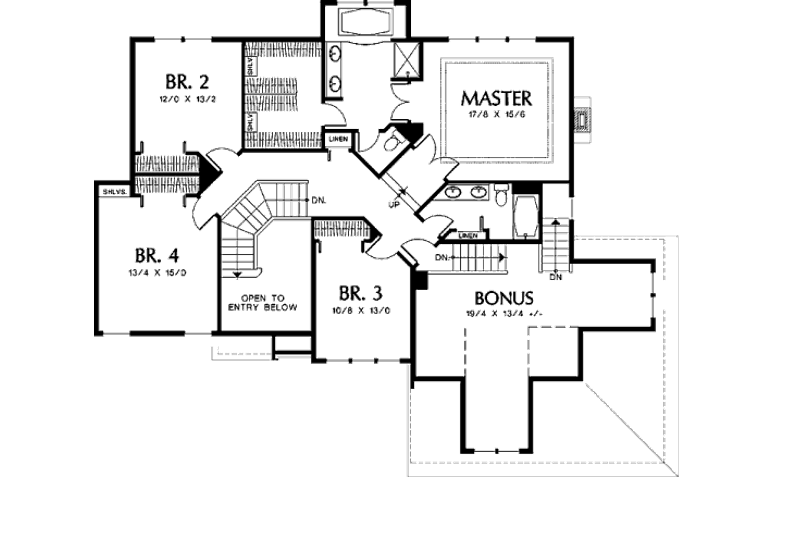

Second Floor: 1402 sq/ft
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : 2"x6"
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Play Flex Room
Suited For Corner Lot
Suited For Sloping Lot
Covered Front Porch
158 sq/ft width 12' x depth 13' 2"
138 sq/ft width 10' 8" x depth 13'
199 sq/ft width 13' 4" x depth 15'
Bonus Room - Finished:
257 sq/ft width 19' 4" x depth 13' 4"
105 sq/ft width 9' 4" x depth 11' 4"
128 sq/ft width 10' 8" x depth 12'
148 sq/ft width 11' x depth 13' 6"
273 sq/ft width 17' 8" x depth 15' 6"
651 sq/ft width 27' 4" x depth 23' 10"
144 sq/ft width 10' 8" x depth 13' 6"
219 sq/ft width 13' 4" x depth 16' 6"
273 sq/ft width 17' 8" x depth 15' 6"
What's Included In This Plan Set

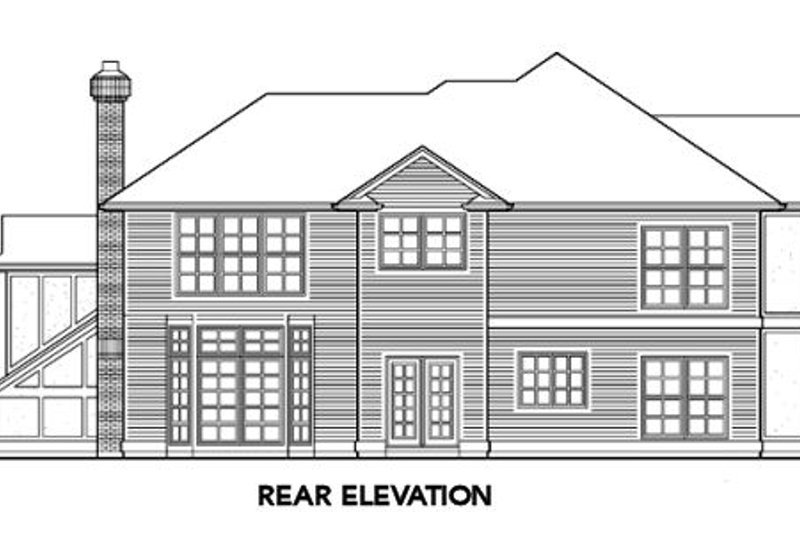

- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
