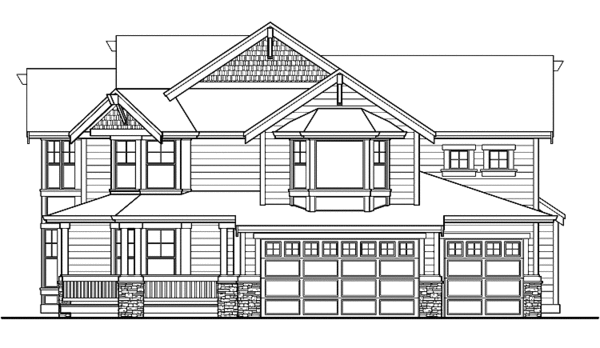

Craftsman Exterior - Front Elevation Plan #132-244

Select Plan Set Options

What's included?

	Additional Construction Sets $50.00/each
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Home Furniture Planner $19.00 This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
	Lighting Design $100.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable.

Subtotal

$1400.00

Best Price Guaranteed*

Or order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

Need an answer fast? Call us at 1-800-447-0027

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

We do our best to get back within 24 - 48 business hours.

Hours Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #132-244

Key Specs

2890
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

A Craftsman Farmhouse designed for today's lifestyles, the Hazelwood brings country charm to the city or contemporary elegance to the country. Its wrap-around entry porch, stone-accented columns, gables, bays and brackets convey a comfortable sense of home. The side-entry garage is perfect for a corner lot. The den located at the entry works well for a home office. Opposite the den are formal living and dining rooms, connecting to the kitchen via a butler’s pantry. The island kitchen, bayed nook and grand family room create an open, flexible family living area. A dramatic bridge at the top of the stairwell spans the spectacular two-story volumes of the central hall and family room, providing access and privacy for the deluxe master suite. The children’s wing includes two bedrooms, a bath and bonus room.

Floor Plans

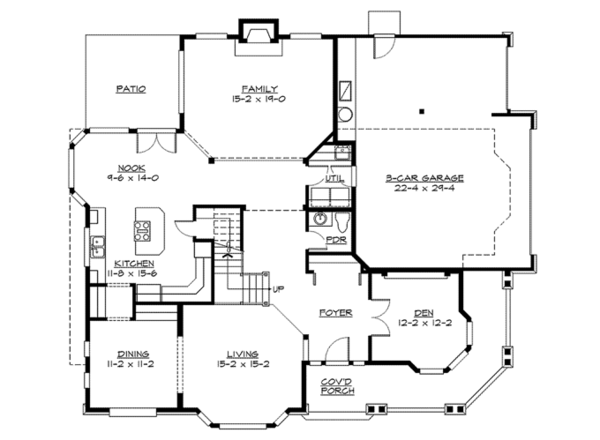

Floor Plan - Main Floor Plan

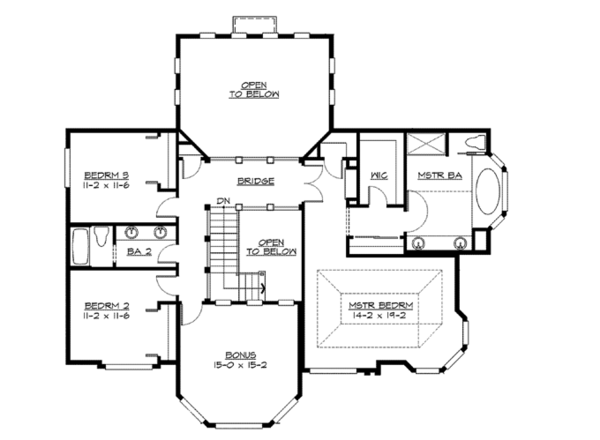

Floor Plan - Upper Floor Plan

Floor Plan - Other Floor Plan

Full Specs & Features

Dimension

Depth : 50'
Height : 28' 5"
Width : 59'

Area

Bonus: 240 sq/ft
First Floor: 1630 sq/ft
Garage: 675 sq/ft
Second Floor: 1260 sq/ft

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Wrap Around Porch

Rooms

Bedroom 2:

132 sq/ft width 11' 4" x depth 11' 8"

Bedroom 3:

132 sq/ft width 11' 4" x depth 11' 8"

Bonus Room - Finished:

235 sq/ft width 15' 4" x depth 15' 4"

Breakfast Nook:

136 sq/ft width 9' 8" x depth 14' 2"

Den:

235 sq/ft width 15' 4" x depth 15' 4"

Dining Room:

235 sq/ft width 15' 4" x depth 15' 4"

Family Room:

288 sq/ft width 15' 2" x depth 19'

Garage:

655 sq/ft width 22' 4" x depth 29' 4"

Kitchen:

116 sq/ft width 10' x depth 11' 8"

Living Room:

235 sq/ft width 15' 4" x depth 15' 4"

Master Bedroom:

277 sq/ft width 14' 4" x depth 19' 4"

What's Included In This Plan Set

Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.

If you are building this plan in the state of Washington, please call us before placing your order.

Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

» See important information before purchasing.

Plan Set

PDF Set : $1400.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1500.00	5 printed plan sets mailed to you.
CAD Set : $2400.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : 50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : 100.00	Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner : 19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : 100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Right-Reading Reverse : 150.00	Choose this option to reverse your plans and to have the text and dimensions readable.
