Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

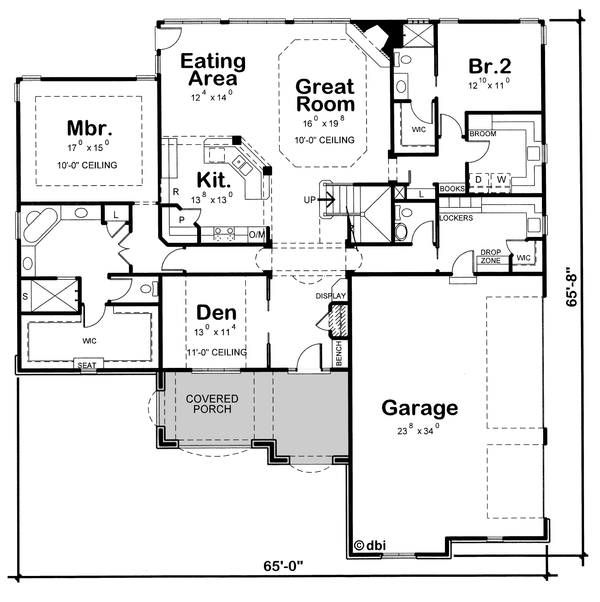

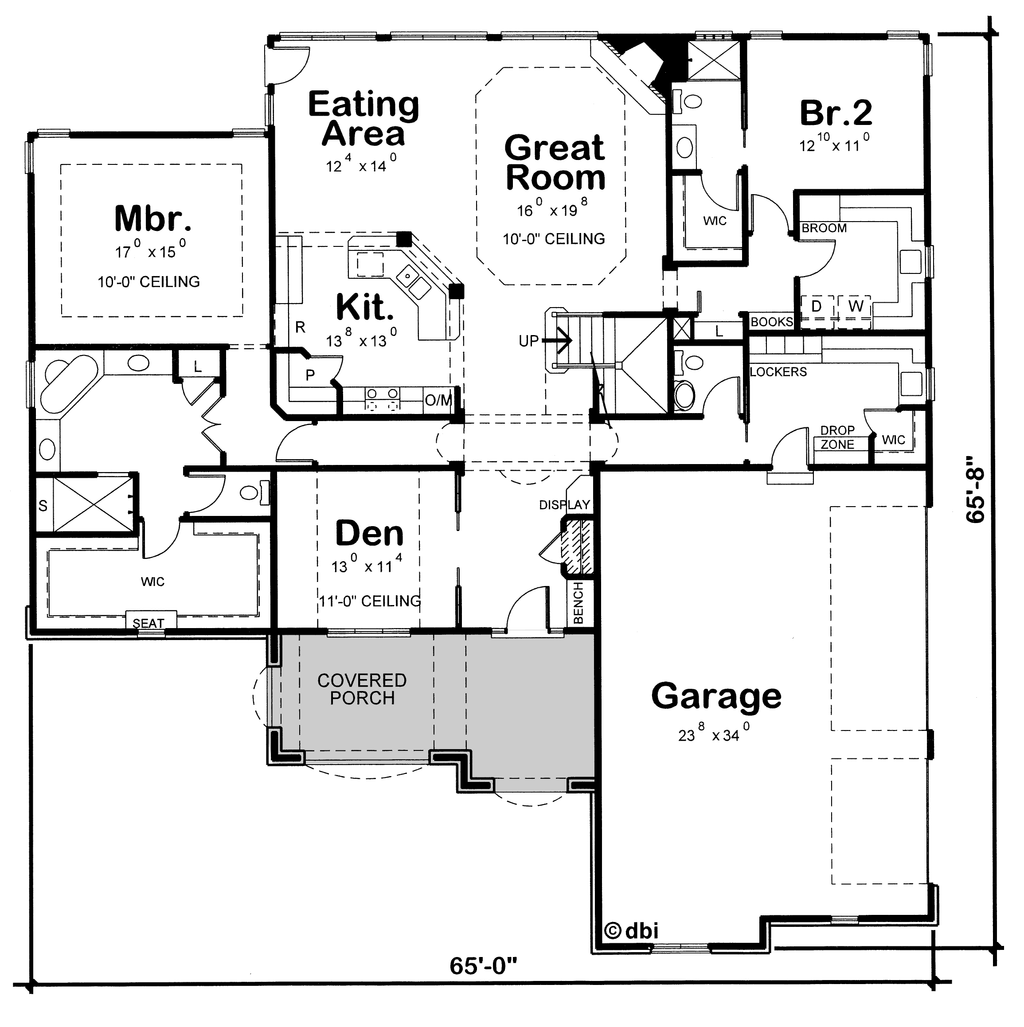

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #20-1868

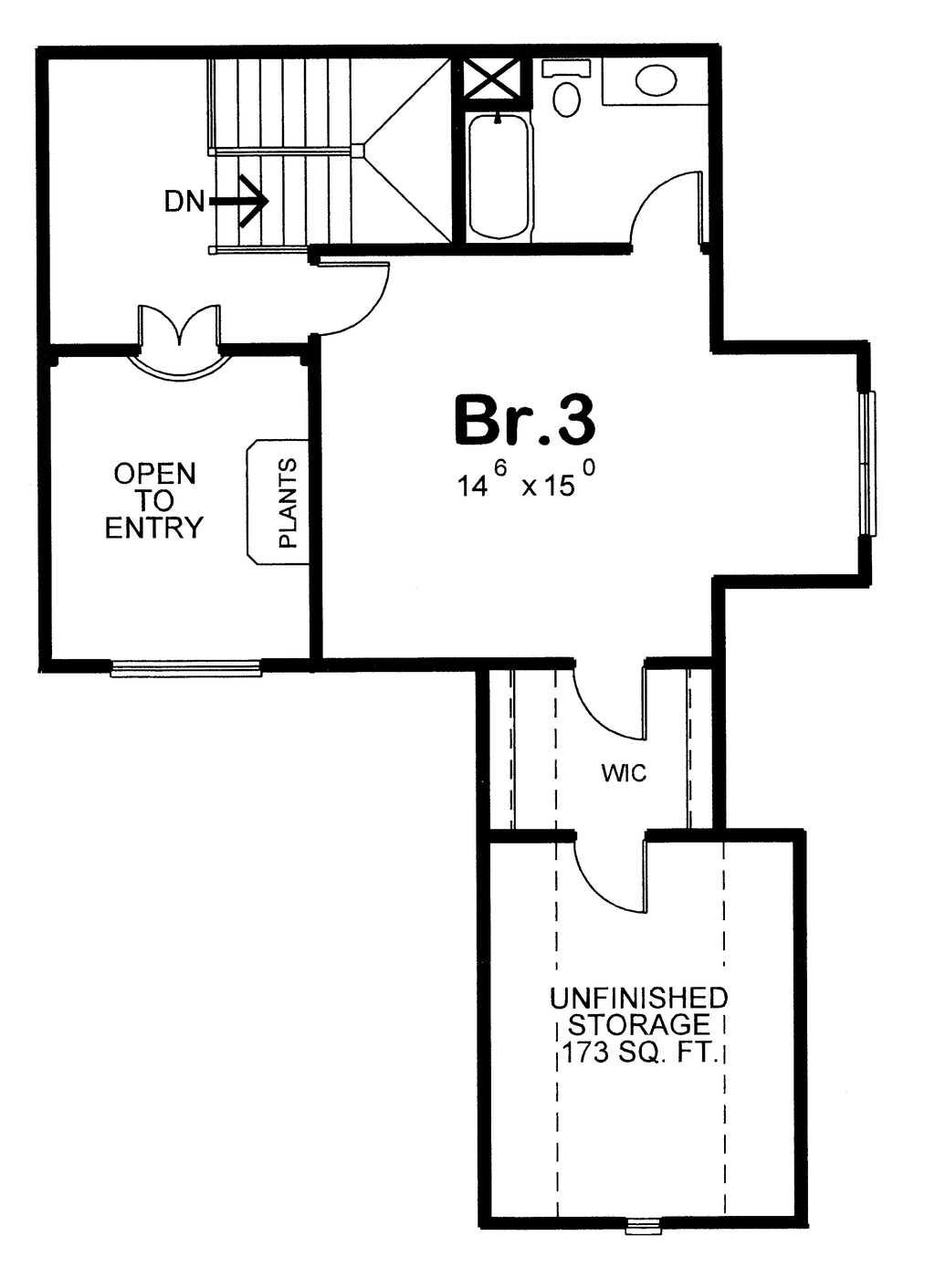

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #20-1868

Full Specs & Features

Depth : 65' 8"
Height : 28' 10"
Width : 65'
Bonus: 173 sq/ft height 8'
First Floor: 2394 sq/ft height 9'
Garage: 807 sq/ft height 9'
Porch: 229 sq/ft
Second Floor: 500 sq/ft height 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 7:12
Secondary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x6"

Bedroom 2:

141 sq/ft width 12' 10" x depth 11'

Bedroom 3:

217 sq/ft width 14' 6" x depth 15'


147 sq/ft width 13' x depth 11' 4"


172 sq/ft width 12' 4" x depth 14'


804 sq/ft width 23' 8" x depth 34'

Great Room:

314 sq/ft width 16' x depth 19' 8"


177 sq/ft width 13' 8" x depth 13'

Master Bedroom:

255 sq/ft width 17' x depth 15'

What's Included In This Plan Set

  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
