PLAN #453-113

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Stately pilasters and a decorative balcony at a second-level window adorn this ornate four-bedroom design. Inside, the recessed-entryway columns define the formal dining room. Ahead is a great room with a fireplace, built-in bookshelves, and access to the rear deck. A breakfast nook nestles in a bay window and joins an efficient island kitchen. The master suite on the first level has a vaulted ceiling, walk-in closet, and garden tub in the bath. Upstairs, a versatile loft, three additional bedrooms and two baths are connected by a hallway open to the great room below.

Floor Plans

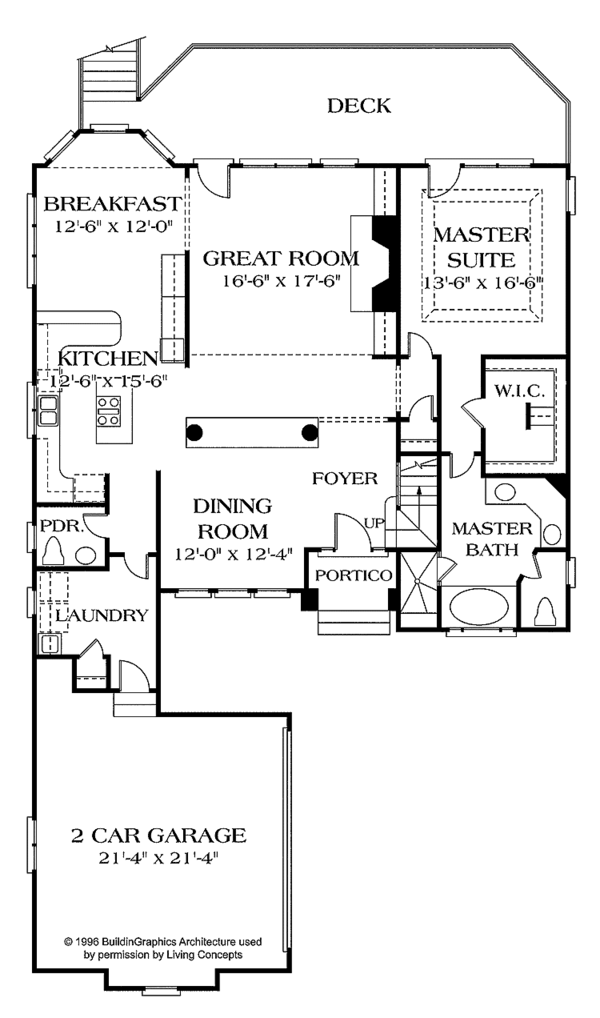

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #453-113

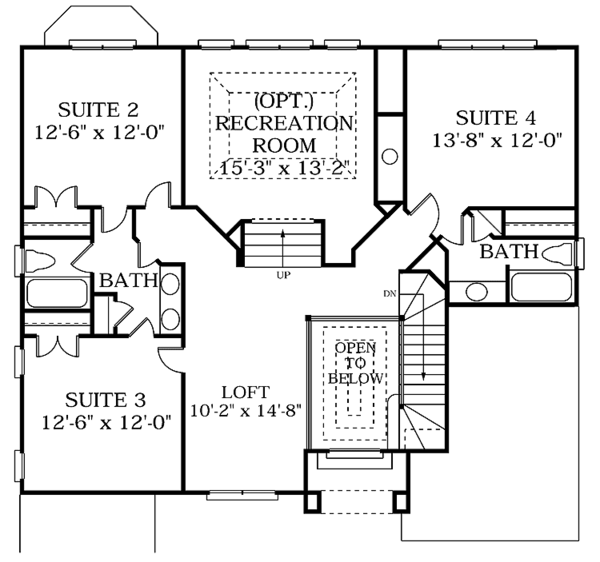

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #453-113

Full Specs & Features

Depth : 72' 6"
Height : 35'
Width : 45'
Bonus: 206 sq/ft
First Floor: 1751 sq/ft
Second Floor: 1143 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Guest Suite
Split Bedrooms
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Outdoor Spaces

Bathroom 3:

51 sq/ft width 9' 8" x depth 5' 4"

Bedroom 2:

150 sq/ft width 12' 6" x depth 12'

Bedroom 3:

150 sq/ft width 12' 6" x depth 12'

Bedroom 4:

164 sq/ft width 13' 8" x depth 12'

Breakfast Room:

150 sq/ft width 12' 6" x depth 12'


480 sq/ft width 40' x depth 12'

Dining Room:

147 sq/ft width 12' x depth 12' 4"

Game Room:

200 sq/ft width 15' 3" x depth 13' 2"


455 sq/ft width 21' 4" x depth 21' 4"

Laundry Room:

78 sq/ft width 10' 8" x depth 7' 4"


149 sq/ft width 10' 2" x depth 14' 8"

Master Bathroom:

127 sq/ft width 9' 10" x depth 13'

Master Bedroom:

222 sq/ft width 13' 6" x depth 16' 6"

Master Closet:

52 sq/ft width 6' x depth 8' 8"

Powder Room:

28 sq/ft width 6' x depth 4' 8"

What's Included In This Plan Set

This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
