PLAN #429-57

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

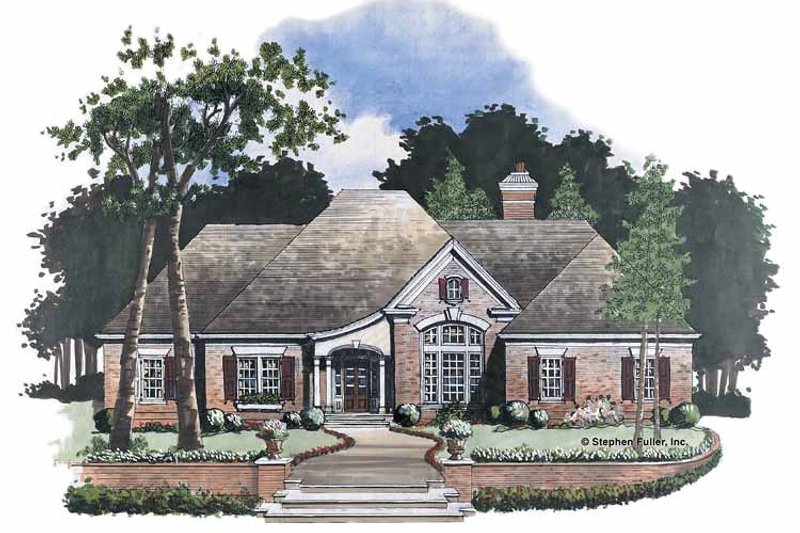

Jack arches blend artfully with transoms, gables, and sweeping rooflines to highlight this French exterior. European styling flavors a thoroughly modern interior, starting with a grand great room with a tray ceiling and French doors. A gallery hall joins an extensive sleeping wing, with living and entertaining areas to the right of the plan. You may want every meal served in the dining room with its arch-top window and vaulted ceiling. Family and friends will want to kick off their shoes in the spacious keeping room with cozy hearth, just off the kitchen and bayed breakfast nook. To the rear of the plan, a commodious master suite offers a sunny sitting room, a coffered ceiling, and a sumptuous bath with corner windowed tub, twin lavatories and compartmented toilet. Two bedrooms and a connecting bath offering private vanities complete the wing.

Floor Plans

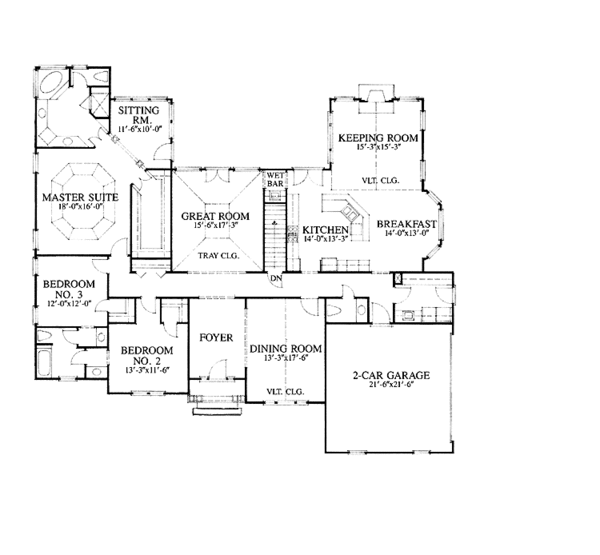

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #429-57

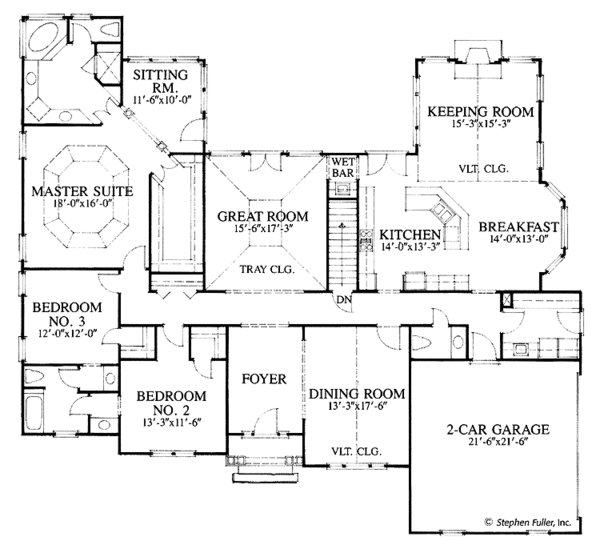

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #429-57

Full Specs & Features

Depth : 66' 3"
Height : 28'
Width : 71' 3"
First Floor: 2902 sq/ft height 9'
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area

Bedroom 2:

152 sq/ft width 13' 3" x depth 11' 6"

Bedroom 3:

144 sq/ft width 12' x depth 12'

Breakfast Room:

182 sq/ft width 14' x depth 13'


424 sq/ft width 26' 6" x depth 16'

Dining Room:

231 sq/ft width 13' 3" x depth 17' 6"


125 sq/ft width 9' 4" x depth 13' 6"

Game Room:

232 sq/ft width 15' 3" x depth 15' 3"


462 sq/ft width 21' 6" x depth 21' 6"

Gathering Room:

267 sq/ft width 15' 6" x depth 17' 3"


185 sq/ft width 14' x depth 13' 3"

Laundry Room:

88 sq/ft width 10' 2" x depth 8' 8"

Master Bedroom:

288 sq/ft width 18' x depth 16'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
