PLAN #54-259

Select Plan Set Options
What's included?
Additional Construction Sets
$70.00/each
Mirror Reversed Sets
$55.00
Subtotal
$1695.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #54-259

Key Specs


2914
sq ft

3
Beds

2.5
Baths

2
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

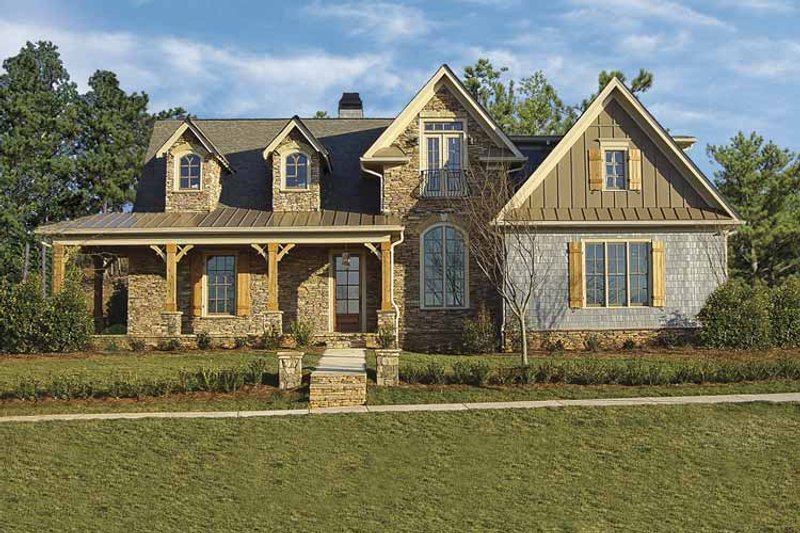

Abundant outdoor space and a stone-and-shake facade make this a lovely home for a rustic setting. The hub of the plan is the gorgeous open kitchen, which anchors the appropriately named grand salon, the breakfast nook, and the beam-ceilinged family room. Each of these spaces opens to the outdoors. Utility areas are secluded in an ultra-convenient corner between the kitchen and the garage. Sleeping quarters include two family bedrooms upstairs, which share a bath, and an elegant master suite on the first floor.

Floor Plans

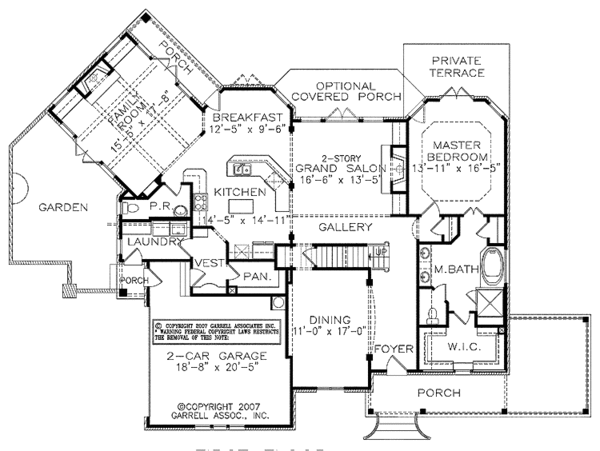

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

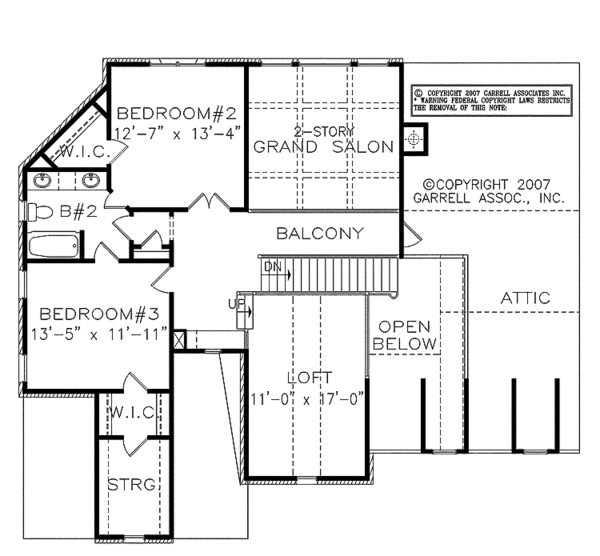

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Bonus : 198 sq/ft
Garage : 420 sq/ft
Main Floor : 2038 sq/ft
Upper Floor : 876 sq/ft
Bedroom Features Teen Suite Jack Jill Bath
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features Breakfast Nook
Additional Room Features Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Storage Area
Garage Features Side Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch
Loft Balcony

What's Included In This Plan Set


Garrell Associates

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1695.00
5 printed plan sets mailed to you.
PDF Set :
$1695.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1695.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
70.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
