PLAN 417-513

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Quoins and keystone accents lend a French Country flavor to this stucco exterior, but brick contrasts and a glass-paneled entry give it a fresh face. A tiled foyer leads to a gracefully curved gallery hall. The heart of the plan is the vaulted living room, which overlooks the covered patio and rear grounds, but friends may want to gather in the family room, where a centered fireplace offers cozy niches. A gourmet kitchen is designed to handle casual meals as well as planned occasions, with a service kitchen on the patio for outdoor events.

Full Specs & Features


Depth : 83'

Height : 27'

Width : 70' 8"


First Floor: 2931 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 9:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features


Formal Dining Room

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Master Sitting Area

Media Room

Outdoor Spaces


Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill


Bathroom 2:

71 sq/ft width 6' 10" x depth 10' 6"

Bathroom 3:

62 sq/ft width 5' 2" x depth 12'

Bedroom 2:

141 sq/ft width 12' 2" x depth 11' 8"

Bedroom 3:

160 sq/ft width 13' 2" x depth 12' 2"

Breakfast Room:

104 sq/ft width 9' 6" x depth 11'

Den/Office or Bedroom 1:

117 sq/ft width 11' 4" x depth 10' 4"

Dining Room:

174 sq/ft width 11' x depth 15' 10"


70 sq/ft width 7' x depth 10'


868 sq/ft width 27' x depth 32' 2"

Gathering Room:

317 sq/ft width 18' 8" x depth 17'


215 sq/ft width 11' 8" x depth 18' 6"

Laundry Room:

49 sq/ft width 6' x depth 8' 4"

Living Room:

229 sq/ft width 15' 8" x depth 14' 8"

Master Bathroom:

205 sq/ft width 14' 8" x depth 14'

Master Bedroom:

336 sq/ft width 24' x depth 14'

Master Closet:

97 sq/ft width 7' 6" x depth 13'

Utility Room:

52 sq/ft width 6' 4" x depth 8' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

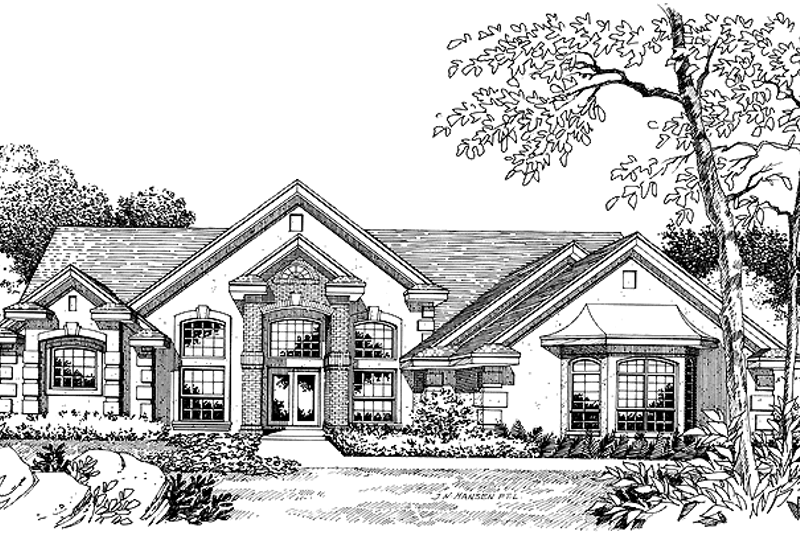

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

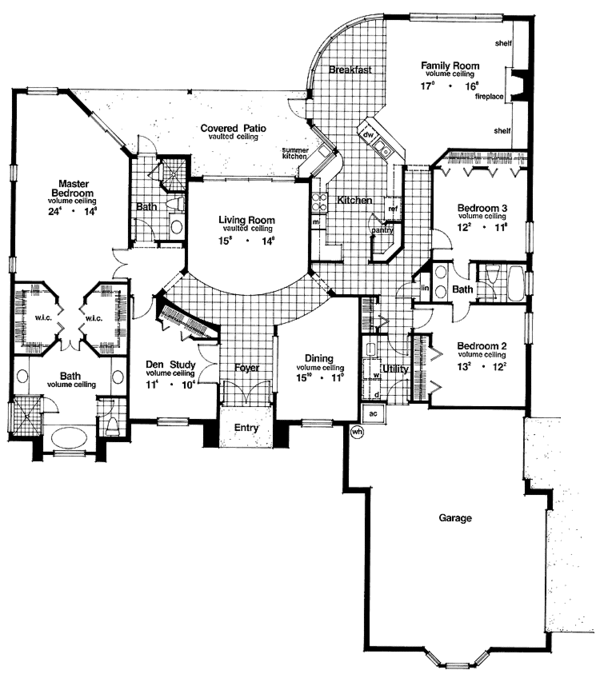

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
One electronic set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets:
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
