Key Specs
2935
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 429-378
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 46' 9"
Height : 35'
Width : 57' 9"
Area

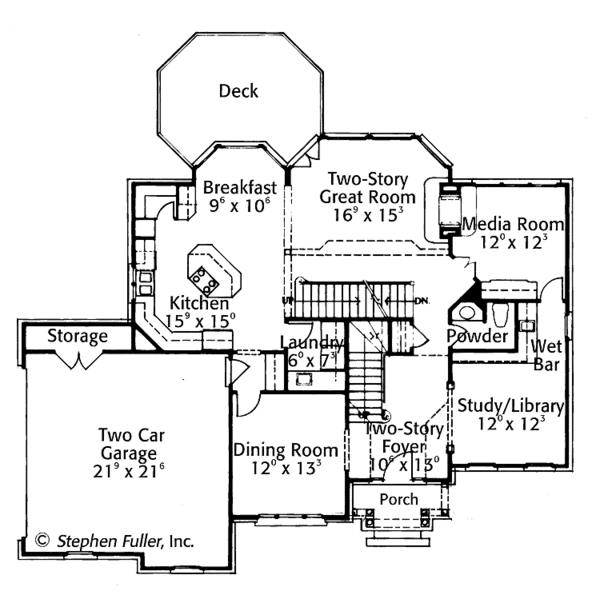

First Floor: 1475 sq/ft
Second Floor: 1460 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Kitchen Features
Butler's Pantry
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Safe Room / Hidden Room
Outdoor Spaces
Deck
More
Jack & Jill Bath
Rooms

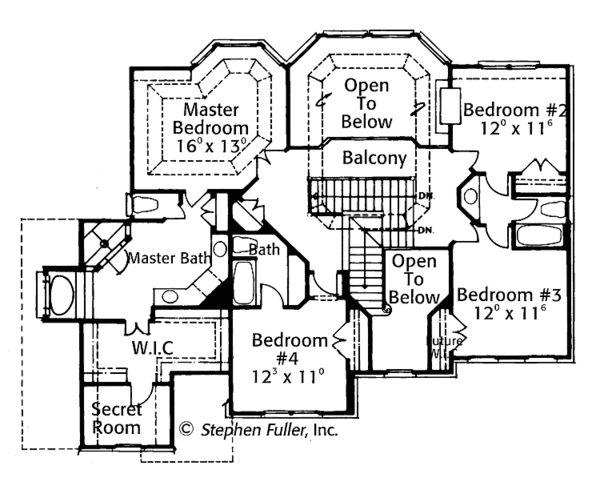

Bedroom 2:
138 sq/ft width 12' x depth 11' 6"
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Bedroom 4:
134 sq/ft width 12' 3" x depth 11'
Breakfast Room:
99 sq/ft width 9' 6" x depth 10' 6"
Garage:
467 sq/ft width 21' 9" x depth 21' 6"
Gathering Room:
255 sq/ft width 16' 9" x depth 15' 3"
Kitchen:
236 sq/ft width 15' 9" x depth 15'
Master Bedroom:
208 sq/ft width 16' x depth 13'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$765.00
$850.00
$1062.50
$1062.50
$680.00
Foundation
$0.00
Framing
$0.00
Additional Options
$55.25
$85.00
$33.15
$85.00
$72.25
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
