PLAN 48-914

Key Specs

2936
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

You'll be surprised at how much space your family will have inside this home, which can fit beautifully onto a compact lot. After entering through the graceful wraparound porch, you'll see the private study off the foyer, as well as the half bath. Directly ahead,the great room and dining area flow into the large kitchen, where an island adds space for food prep and casual meals. Upstairs, the vaulted master suite stretches across the entire width of the home and offers a huge master bath, a walk-in closet, and two sinks. Two additional bedrooms and a hall bath are also on the second level. The real surprise of this home is the immense game room with a wet bar. The home also displays a two-car, front entry garage with a large storage area in the rear that could easily function as a workshop area.

Floor Plans

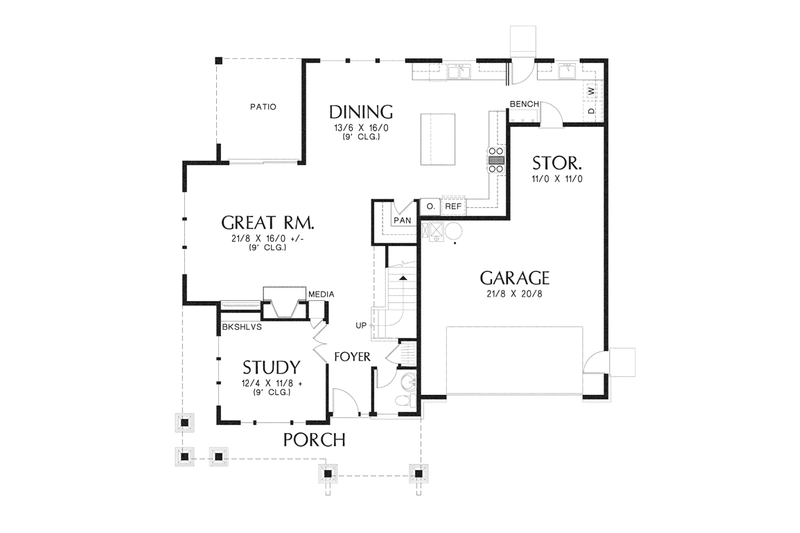

Floor Plan - Main Floor Plan

Reverse

Craftsman Floor Plan - Main Floor Plan Plan #48-914

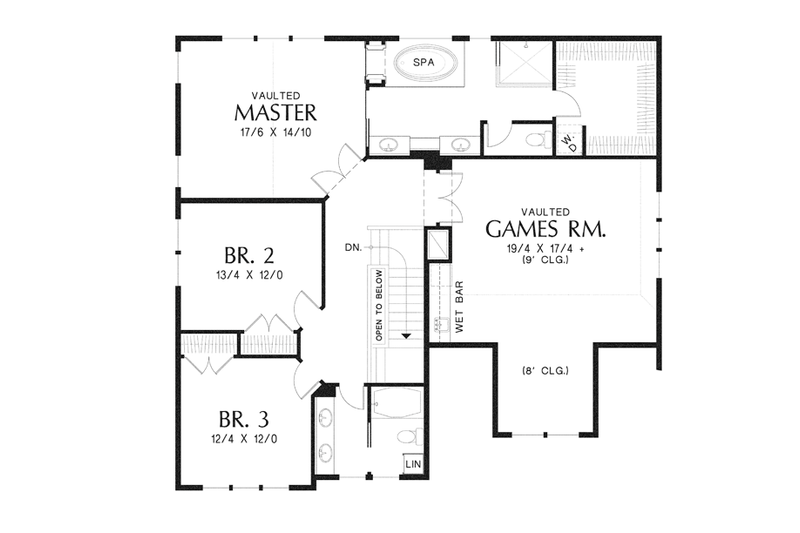

Floor Plan - Upper Floor Plan

Reverse

Craftsman Floor Plan - Upper Floor Plan Plan #48-914

Full Specs & Features

Dimension

Depth : 49'
Height : 28'
Width : 50'

Area

First Floor: 1261 sq/ft height 9'
Garage: 588 sq/ft
Second Floor: 1675 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : 2 x 6

Bedroom Features

Fireplace
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings

Garage Features

Front Entry Garage

Outdoor Spaces

Courtyard
Covered Front Porch

Rooms

Bedroom 2:

160 sq/ft width 13' 4" x depth 12'

Bedroom 2 closet:

10 sq/ft width 5' x depth 2'

Bedroom 3:

148 sq/ft width 12' 4" x depth 12'

Bedroom 3 closet:

10 sq/ft width 5' x depth 2'

Dining Area:

216 sq/ft width 13' 6" x depth 16'

Game Room:

335 sq/ft width 19' 4" x depth 17' 4"

Garage:

448 sq/ft width 21' 8" x depth 20' 8"

Garage Storage:

71 sq/ft width 11' x depth 11'

Great Room:

347 sq/ft width 21' 8" x depth 16'

Hall bath:

80 sq/ft width 10' x depth 8'

Laundry room:

71 sq/ft width 11' x depth 6' 5"

Master bath:

177 sq/ft width 10' 5" x depth 17'

Master Bedroom:

260 sq/ft width 17' 6" x depth 14' 10"

Master WIC:

90 sq/ft width 9' x depth 10'

Pantry:

25 sq/ft width 5' x depth 5'

Powder Room:

25 sq/ft width 5' x depth 5'

Study:

144 sq/ft width 12' 4" x depth 11' 8"

What's Included In This Plan Set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.

» See important information before purchasing.

Questions? Call 1-800-447-0027

Plan Set

PDF Set : $1590.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1765.00	5 printed plan sets mailed to you.
5 Copy and PDF Set : $1815.00	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $3180.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set : $1240.00	One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $206.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $351.00	Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $175.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
