Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Big on entertaining, this plan features generous rooms, open concept and extra storage. Oversized back porch is perfect for outdoor barbeques. Spa-style master bath has executive size closet and walk-in shower.

Floor Plans

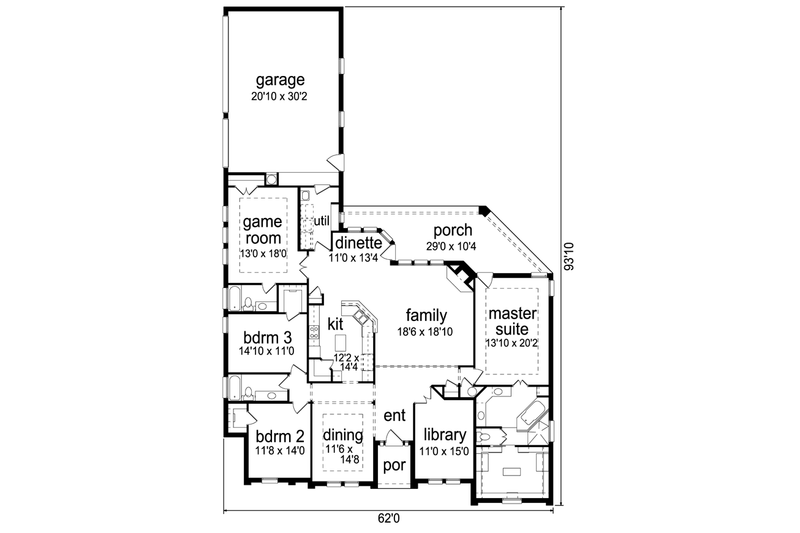

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-507

Full Specs & Features

Depth : 93' 10"
Height : 31' 4"
Width : 62'
First Floor: 2936 sq/ft height 10'
Garage Ceiling : 9'
Main Ceiling : 10'
Roof Framing : stick
Primary Pitch : 10:12
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Code Compliance
Irc 2003

Bedroom 2:

163 sq/ft width 11' 8" x depth 14'

Bedroom 3:

163 sq/ft width 14' 10" x depth 11'


146 sq/ft width 11' x depth 13' 4"

Dining Room:

168 sq/ft width 11' 6" x depth 14' 8"

Family Room:

348 sq/ft width 18' 6" x depth 18' 10"

Game Room:

234 sq/ft width 13' x depth 18'


628 sq/ft width 20' 10" x depth 30' 2"


174 sq/ft width 12' 2" x depth 14' 4"


165 sq/ft width 11' x depth 15'

Master Suite:

278 sq/ft width 13' 10" x depth 20' 2"

Porch - Rear:

299 sq/ft width 29' x depth 10' 4"

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

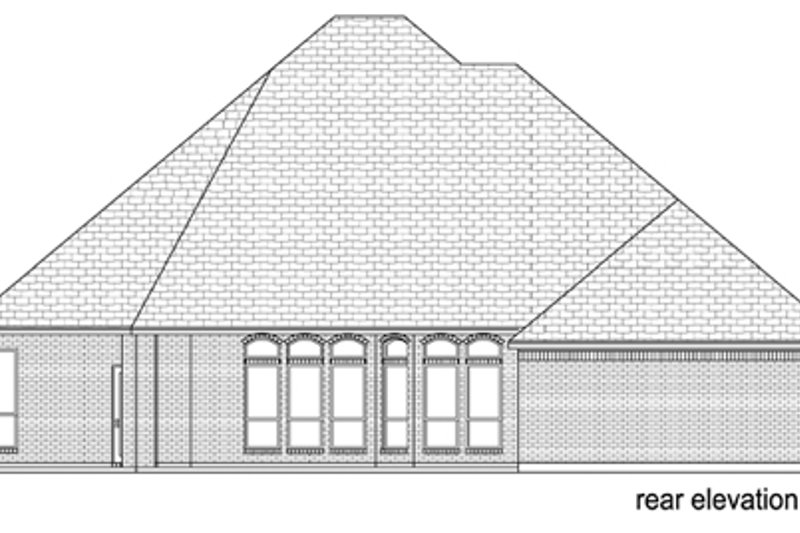

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
