PLAN #46-404

Key Specs


2957
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

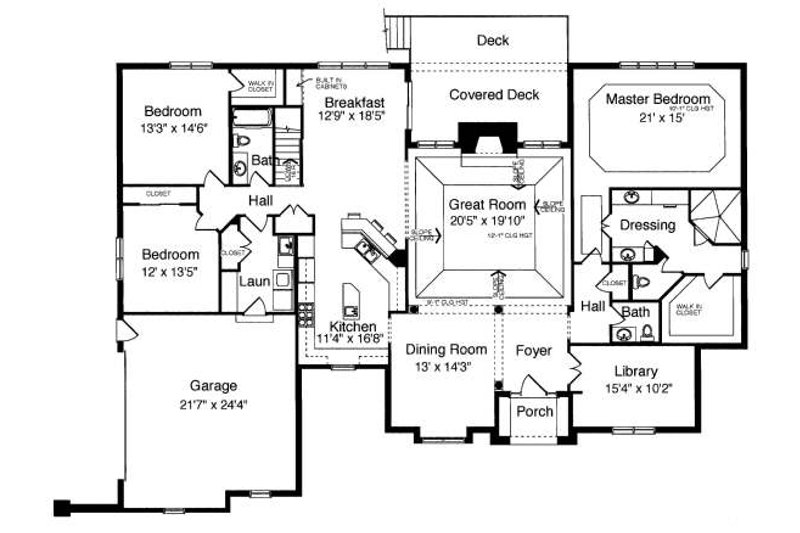

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 57'
Height : 27'
Width : 79'
Area Basement : 2957 sq/ft
Garage : 503 sq/ft
Main Floor : 2957 sq/ft
Ceiling Main Ceiling : 9'
Roof Primary Pitch : 8:12
Exterior Wall Framing Framing : 2"x4"
Bedroom Features Split Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Breakfast Nook
Peninsula Eating Bar
Additional Room Features Mud Room
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


Studer Residential Designs, Inc.

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section show typical framing detail of house.
» See important information before purchasing.
Plan Set
5 Copy Set :
$795.00
5 printed plan sets mailed to you.
8 Copy Set :
$880.00
8 printed plan sets mailed to you.
PDF Set :
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1075.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
115.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
35.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
