Depth : 66'
Height : 31' 9"
Width : 92' 2"
Garage : 953 sq/ft
Main Floor : 2957 sq/ft
Porch : 496 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 10'
Main Ceiling : 10'
Primary Pitch : 12/12
Roof Framing : Stick
Roof Type : Shingles
Exterior Wall Framing
Exterior Wall Finish : Siding and brick
Framing : 2x4
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For View Lot
Covered Rear Porch
Outdoor Kitchen Grill
Additional Half Bath
Jack & Jill Bath
What's Included In This Plan Set
• COVER PAGE: Cover Sheet shows architectural rendering of residence
• FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated / unexcavated areas.

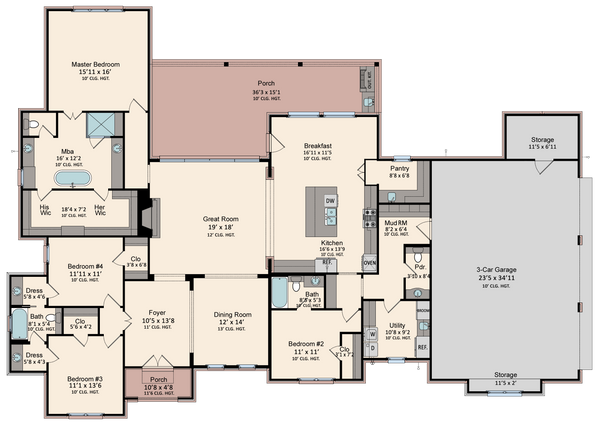

• FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
• ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof pitch, ridges, and valleys.
• ELEVATIONS: View of the home from all four sides, showing exterior materials and measurements.
• SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring, and roofing (excluding garage).
• ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
• FLOOR JOIST DETAILS: Two-story plans will show floor joist details.
• TYPICAL WALL SECTION & DETAILS
• CONSTRUCTION NOTES AND DETAILS: outlines elements applicable to the design of your home.
*Note: Structural sheets from the original design may be included. These sheets are not location-specific.
