Plan is geared for a busy family, with a flex room which can be a study or bedroom, walk-in closets & pantry, and oversized family & kitchen area for entertaining. Master suite is conveniently located by the back porch, w/private access to utility room, generous shower & a Fashionista's dream closet. Stately stone arched entry & front porch welcomes visitors. Powder bath by back door & porch is perfect for backyard parties.

Floor Plans

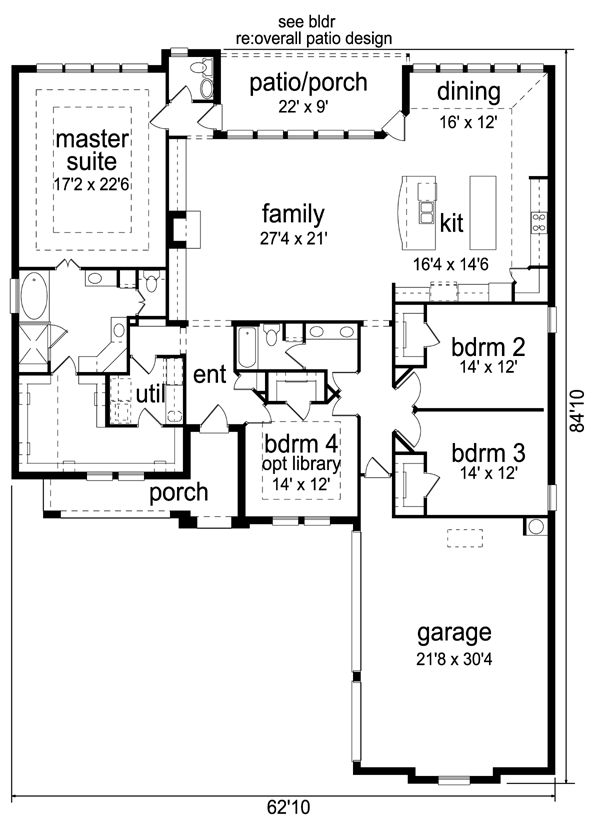

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #84-574

Full Specs & Features

Depth : 84' 10"
Height : 31' 10"
Width : 62' 10"
First Floor: 2987 sq/ft height 9'
Garage: 721 sq/ft height 9'
Ceiling Details : Master = 11' TierBdrm 4 = 10' TierFamily, Kitchen & Dining = 12'
Garage Ceiling : 9'
Main Ceiling : 9'
Roof Framing : stick
Primary Pitch : 10:12
Secondary Pitch : 14:12
Roof Type : gables
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

width 14' x depth 12'

Bedroom 3:

width 14' x depth 12'

Bedroom 4:

width 14' x depth 12'


width 16' x depth 12'

Family Room:

width 27' 4" x depth 21'


721 sq/ft width 21' 8" x depth 30' 4"


width 16' 4" x depth 14' 6"

Master Bedroom:

width 17' 2" x depth 22' 6"

Porch Front:

30 sq/ft

Porch Rear:

101 sq/ft

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
