PLAN #48-804

Key Specs


2989
sq ft

0
Beds

0
Baths

0
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This delightful duplex plan offers comfortable family living and efficiency. Enter each unit through a petite covered porch that welcomes you into a foyer hall. The corner fireplace warms a vaulted living and dining room. The kitchen provides access to a washroom. The master suite--which is secluded for privacy--offers extensive closet space and a private bath, while two additional family bedrooms on the opposite side of the plan share a full hall bath. Unit A provides a two-car garage, while unit B offers a single-car garage.

Floor Plans

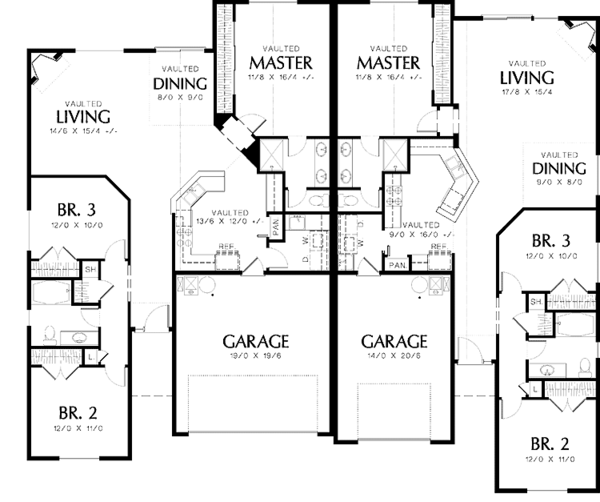

Floor Plan - Main Floor Plan

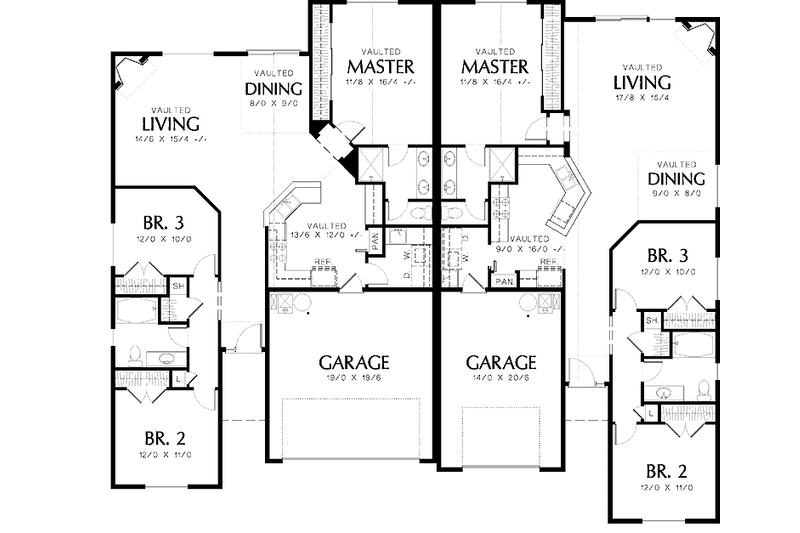

Floor Plan - Main Floor Plan

Full Specs & Features


Area Garage : 396 sq/ft
Main Floor : 1492 sq/ft
Bedroom Features Fireplace
Formal Dining Room
Additional Room Features Great Room Living Room
Main Floor Laundry

What's Included In This Plan Set


Alan Mascord Design Associates

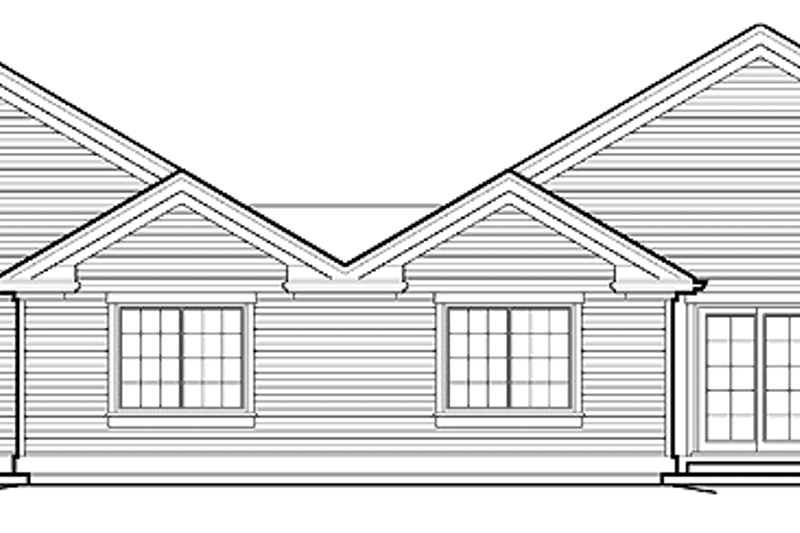

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
» See important information before purchasing.
Plan Set
PDF Set :
$1400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1450.00
5 printed plan sets mailed to you.
CAD Set :
$2700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Right-Reading Reverse :
100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
20.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
