PLAN #54-294

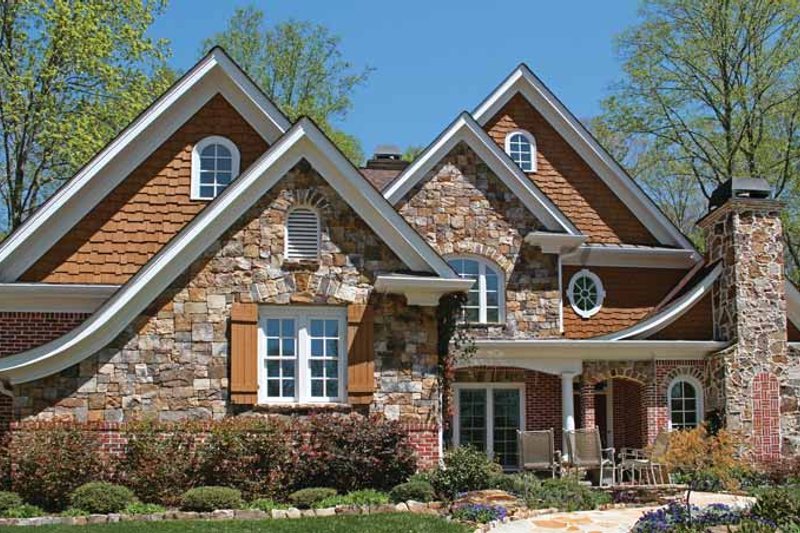

Photographs may show modified designs.

Select Plan Set Options
What's included?
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #54-294

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This rustic yet sophisticated Craftsman rotates around a central hearth, which anchors the two-story grand room and serves as the hub of the design. Arch-lined galleries extend to either side of the fireplace, one leading to the secluded master suite, the other to the gourmet kitchen and keeping room. Both wings have access to a deck that extends across the back of the home. Upstairs are two bedroom suites, a computer loft, and several options for creating more finished space.

Floor Plans

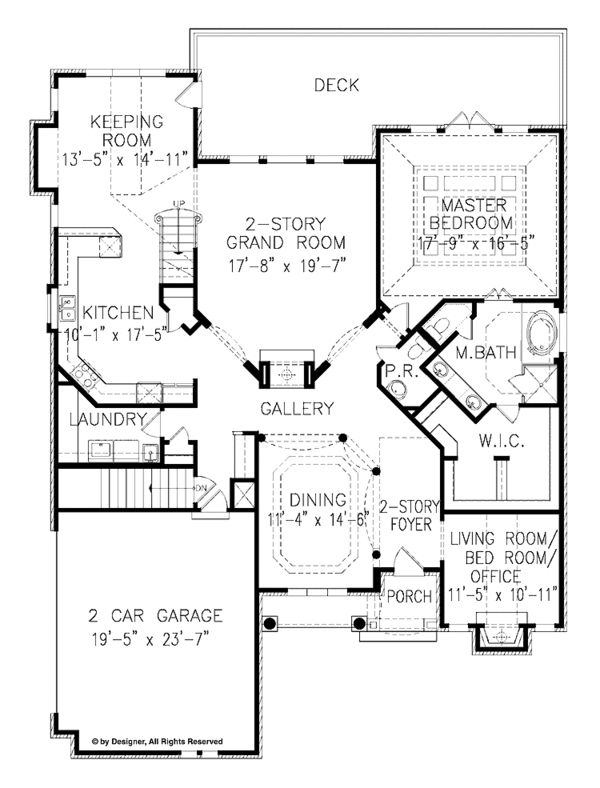

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #54-294

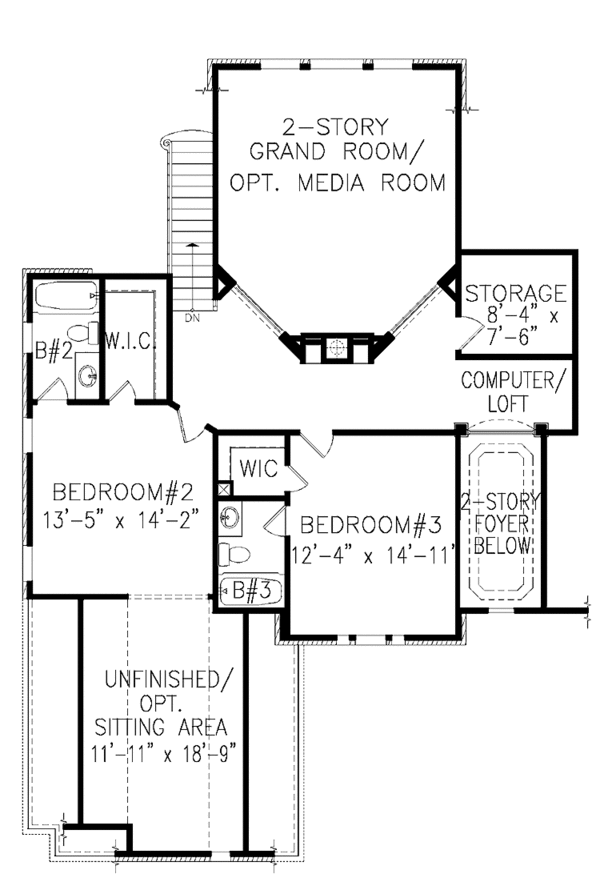

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #54-294

Full Specs & Features

Depth : 68'
Height : 34' 4"
Width : 53'
Bonus: 335 sq/ft
First Floor: 2190 sq/ft height 9'
Garage: 471 sq/ft
Second Floor: 799 sq/ft height 8'
Primary Pitch : 0:0
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Covered Front Porch

Bedroom 2:

190 sq/ft width 13' 5" x depth 14' 2"

Bedroom 3:

183 sq/ft width 12' 4" x depth 14' 11"

Dining Room:

164 sq/ft width 11' 4" x depth 14' 6"


457 sq/ft width 19' 5" x depth 23' 7"

Grand Room:

345 sq/ft width 17' 8" x depth 19' 7"

Keeping Room:

200 sq/ft width 13' 5" x depth 14' 11"


175 sq/ft width 10' 1" x depth 17' 5"

Living Room:

124 sq/ft width 11' 5" x depth 10' 11"

Master Bedroom:

291 sq/ft width 17' 9" x depth 16' 5"

Sitting Area:

223 sq/ft width 11' 11" x depth 18' 9"


62 sq/ft width 8' 4" x depth 7' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Wood 2x4:
Wood 2x4

Additional Options

Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
