PLAN #928-249

Key Specs


2990
sq ft

3
Beds

3.5
Baths

2
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

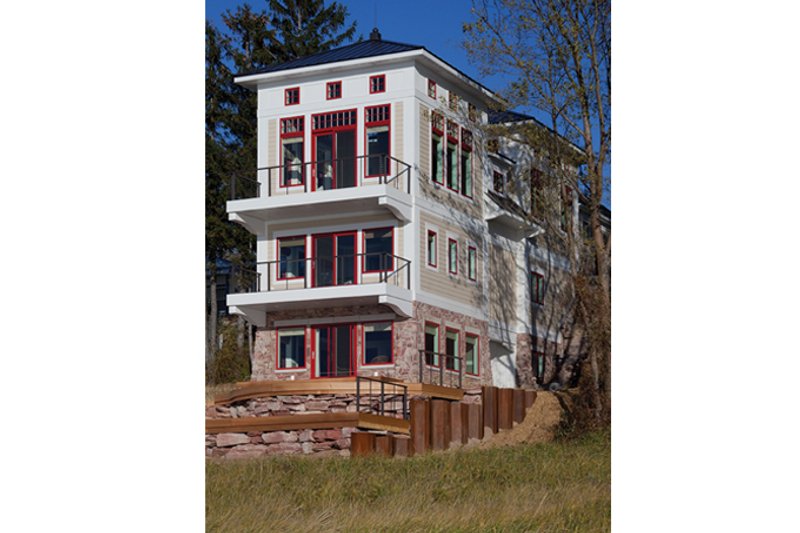

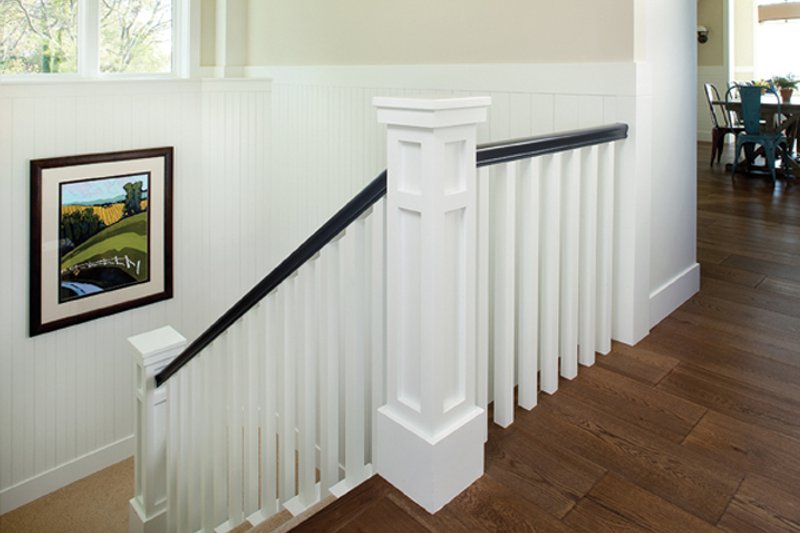

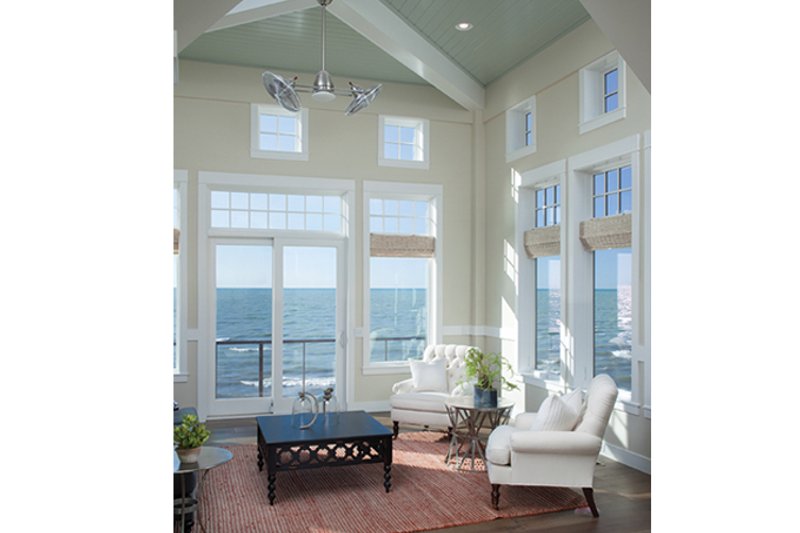

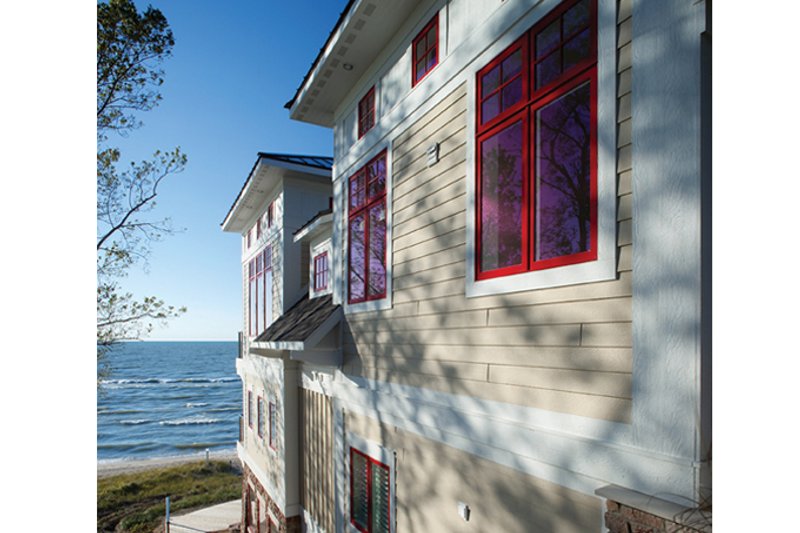

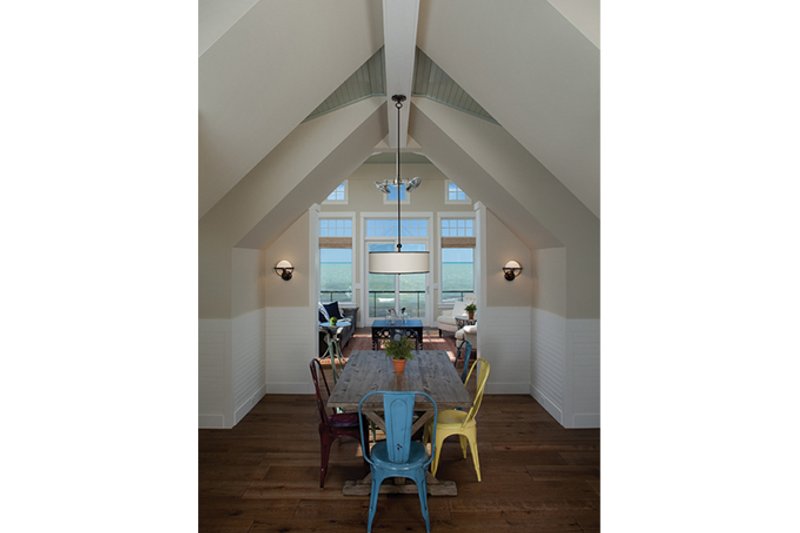

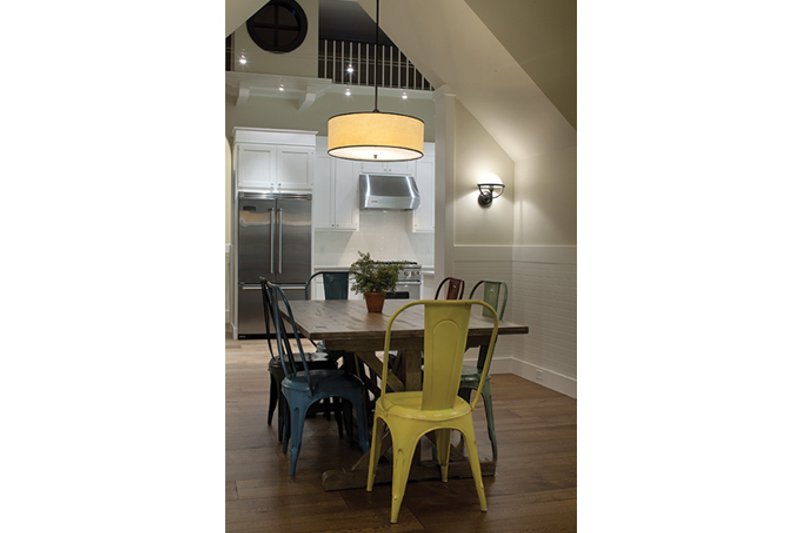

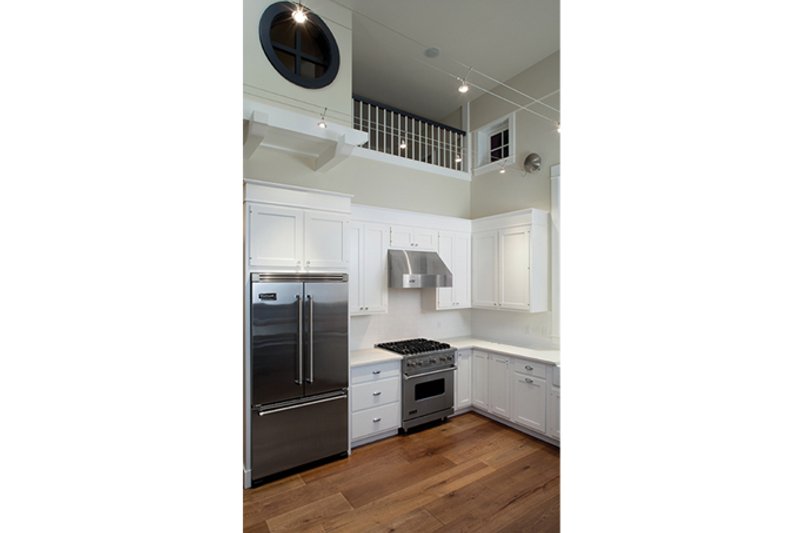

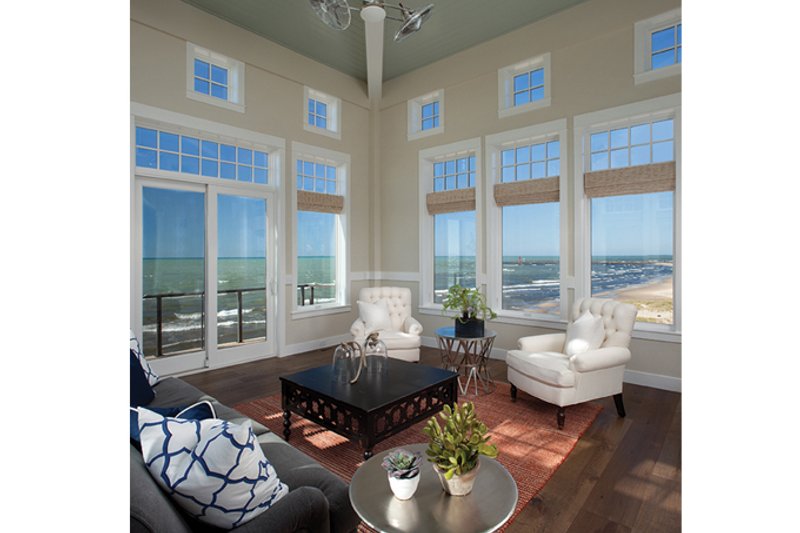

Just 20 feet wide, this remarkable home from Visbeen Architects (winner of awards at the 2011 and 2012 American Residential Design Awards) presents a solution to a common limitation in waterfront property: a narrow lot. This home makes up for in height and length, maximizing the available space and taking full advantage of what are sure to be expansive views from each of its three stories. Featuring porthole windows and outdoor upper decks, the Pine Cliff exudes a distinctly nautical air, perching on its steep grade like a great docked ship. The entry level functions as the main living space, featuring a half bath, foyer, kitchen, dining room, and glass-walled living room. One floor up is the laundry, bunk room, and sunny master suite. The lower level is home to another bedroom suite and office space. Across the way, through the covered patio alcove is the lower-level family room, complete with kitchenette and walkout access to the water.

Floor Plans

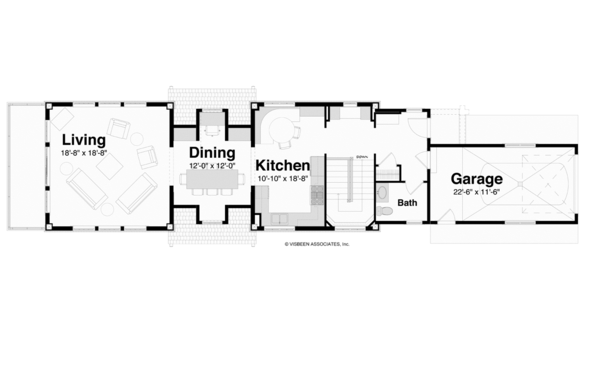

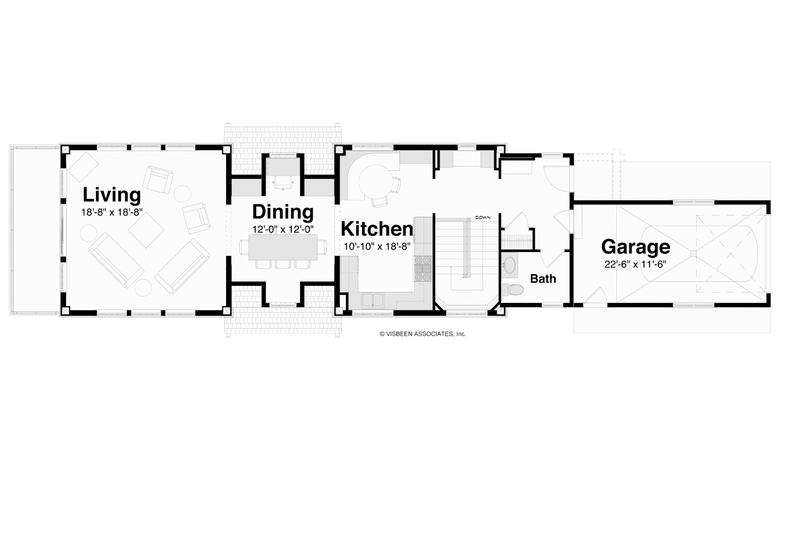

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #928-249

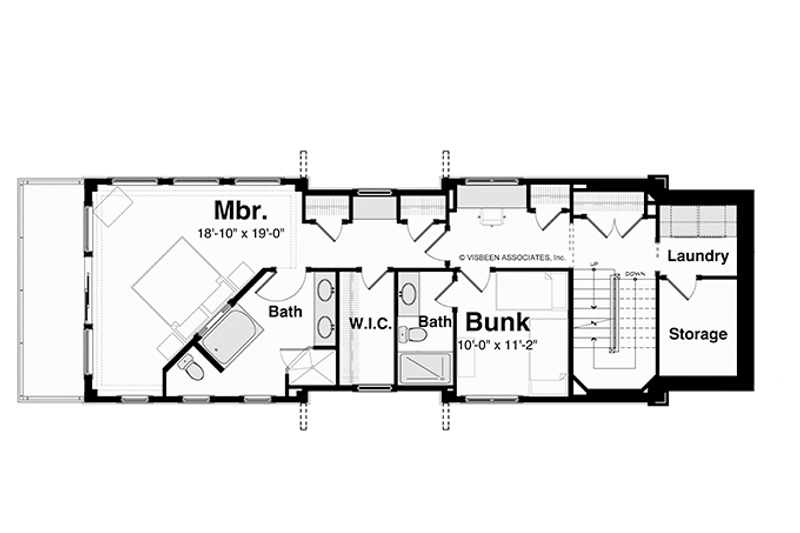

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #928-249

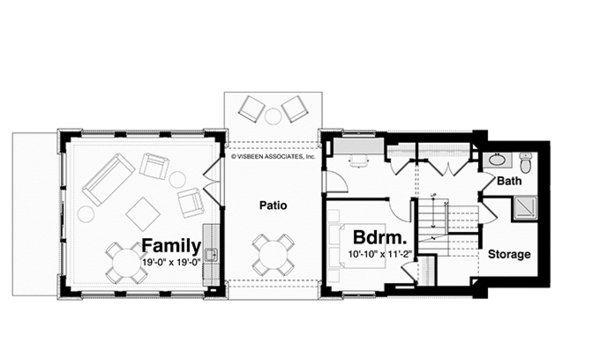

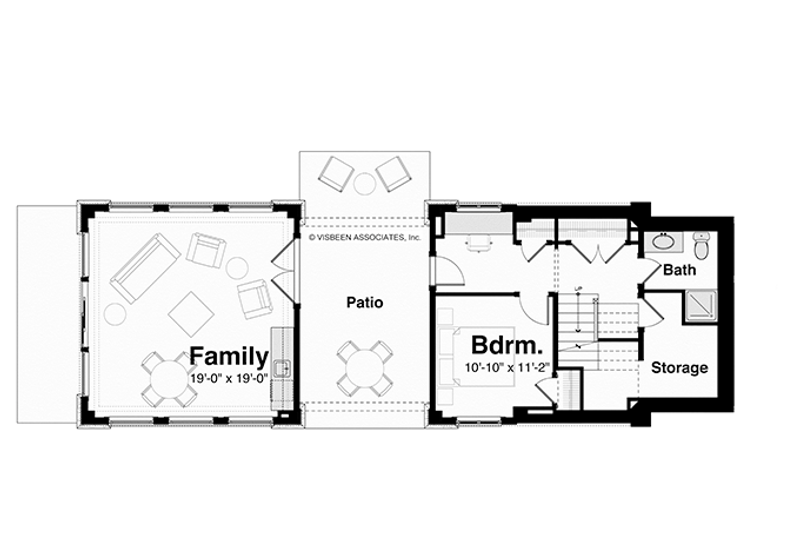

Floor Plan - Lower Floor Plan
Contemporary Floor Plan - Lower Floor Plan Plan #928-249

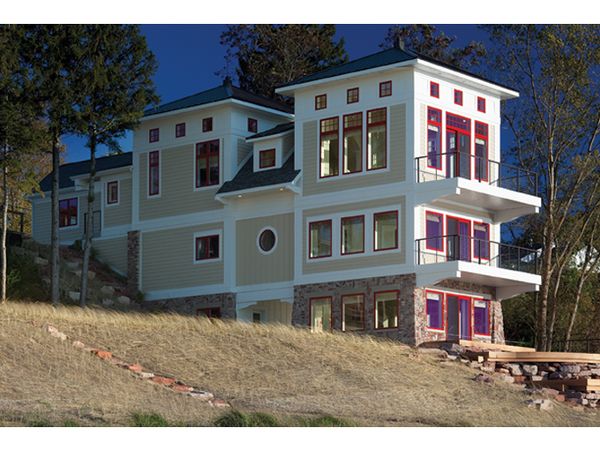

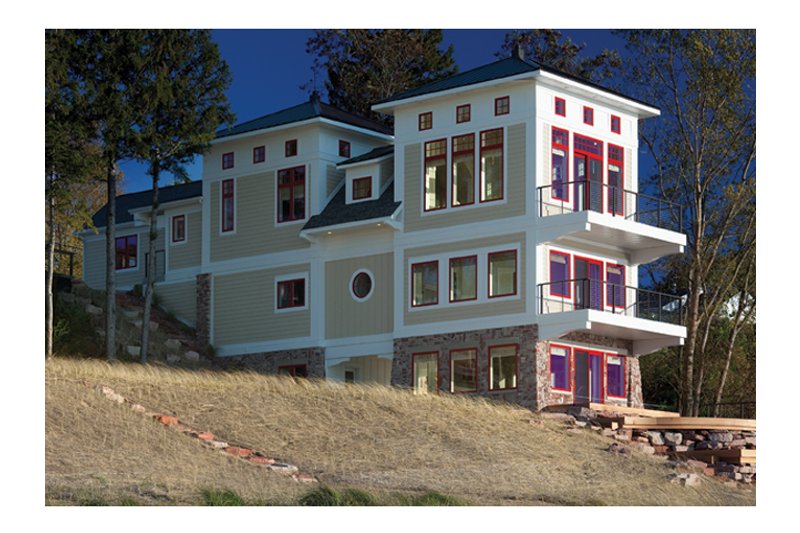

Floor Plan - Other Floor Plan
Contemporary Floor Plan - Other Floor Plan Plan #928-249

Full Specs & Features


Dimension
Depth : 83'
Height : 42' 8"
Width : 20'
Area
Basement Living: 825 sq/ft height 9'
First Floor: 1048 sq/ft height 9'
Second Floor: 1117 sq/ft height 15'
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Upstairs Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Loft Balcony
Deck
Rooms

Bedroom 3:

width 10' 10" x depth 11' 2"

Bunk:

width 10' x depth 11' 2"

Dining:

width 12' x depth 12'

Family Room:

width 19' x depth 19'

Garage:

width 22' 6" x depth 11' 6"

Kitchen:

width 10' 10" x depth 18' 8"

Living Room:

width 18' 8" x depth 18' 8"

Master Bedroom:

width 18' 10" x depth 19'

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
$1795.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3595.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Right-Reading Reverse :
175.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
