PLAN 310-322
Key Specs
2998
sq ft
4
Beds
3.5
Baths
1
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 310-322
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Height : 34'
Width : 69' 7"

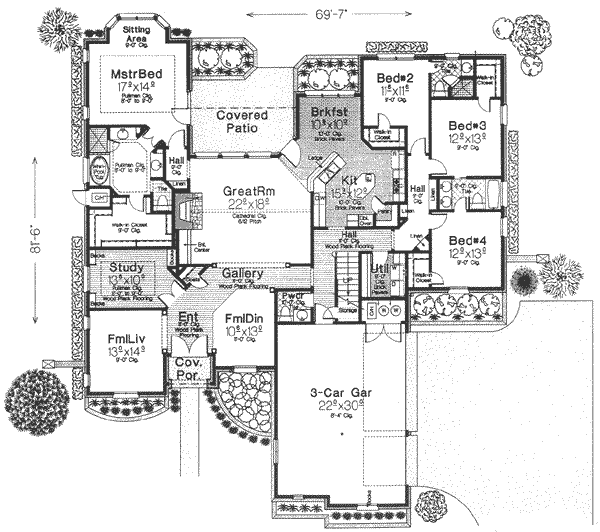

First Floor: 2998 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : 2"x4"
Walk In Closet
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Play Flex Room
Storage Area
Side Entry Garage
Suited For View Lot
3rd BR Closet:
144 sq/ft width 12' x depth 12'
Bathroom 2:
42 sq/ft width 7' x depth 6'
Bathroom 3:
50 sq/ft width 10' x depth 5'
Bedroom 2:
132 sq/ft width 11' 6" x depth 11' 6"
Bedroom 2 Closet:
21 sq/ft width 7' x depth 3'
Bedroom 3:
156 sq/ft width 12' x depth 13'
Bedroom 3 Closet:
24 sq/ft width 4' x depth 6'
Bedroom 4:
156 sq/ft width 12' x depth 13'
Bedroom 4 Closet:
19 sq/ft width 3' 6" x depth 5' 6"

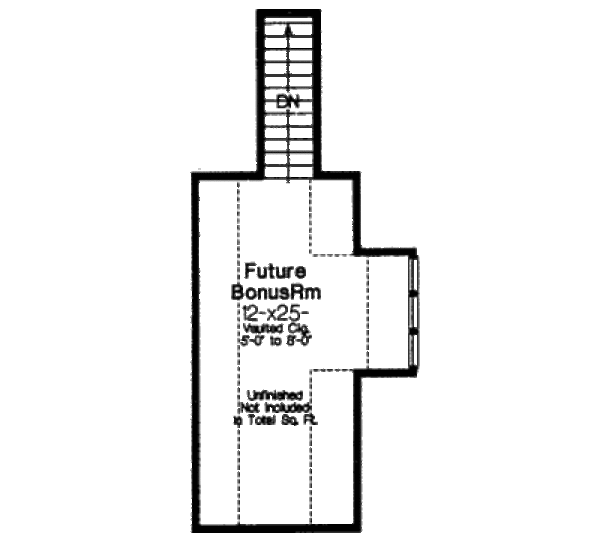

Bonus Room - Finished:
300 sq/ft width 12' x depth 25'
Breakfast Room:
107 sq/ft width 10' 9" x depth 10'
Covered Porch:
35 sq/ft width 5' x depth 7'
Dining Room:
136 sq/ft width 10' 6" x depth 13'
Entry:
width 8' x depth 0"
Garage:
660 sq/ft width 22' x depth 30'
Gathering Room:
396 sq/ft width 22' x depth 18'
Kitchen:
189 sq/ft width 15' 9" x depth 12'
Master Bathroom:
153 sq/ft width 12' 9" x depth 12'
Master Bedroom:
238 sq/ft width 17' x depth 14'
Master Closet:
81 sq/ft width 13' 6" x depth 6'
Master Walk-In Closet:
81 sq/ft width 13' 6" x depth 6'
Mechanical/Equipment Room:
31 sq/ft width 7' 11" x depth 4'
Pantry:
12 sq/ft width 3' 6" x depth 3' 6"
Patio:
136 sq/ft width 17' x depth 8'
Porch - Front:
31 sq/ft width 7' x depth 4' 6"
Powder Room:
25 sq/ft width 5' x depth 5'
Sitting Area:
32 sq/ft width 8' x depth 4'
Study:
135 sq/ft width 13' 6" x depth 10'
Utility Room:
49 sq/ft width 7' x depth 7'
Walk-In Closet:
104 sq/ft width 13' x depth 8'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
| 5 Copy Set
: $1195.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1335.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $1485.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1485.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $2270.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $1140.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $50.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
