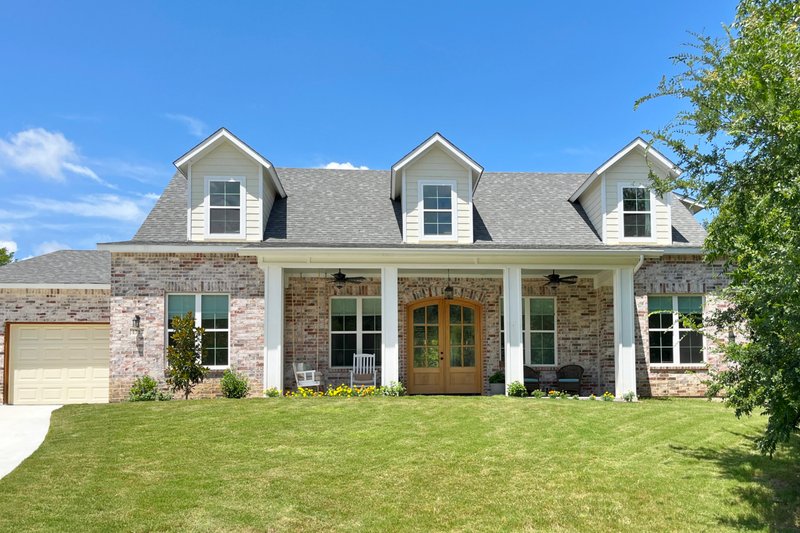

Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (2)
Get Personalized Help
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1123-1
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This beautiful House Plan features a Southern exterior style with open-concept designed interior living spaces that exude comfort, ease of living, and intentionality. The Mesquite Plan was designed to create welcoming and accessible spaces with strong attention to light through purposefully placed windows. The exterior of the Mesquite Plan provides a deep and spacious front porch that readily welcomes and provides space for gathering. Utilizing space under the stairs, a seating area or reading nook lends to a custom and timeless feel. The expansive kitchen layout is designed for ease of cooking and allows for many to work in the kitchen at the same time. Five feet between the island and the primary kitchen wall offers space and comfort for homeowners desiring accessibility. While having an open layout, the first floor provides points of privacy that are tucked away including the powder room, oriented for utmost privacy, and the Office/Bedroom 1. Designed with accessibility in mind, the Master Bedroom is located on the first floor and includes an ADA-designed bathroom and also offers privacy and practicality through a pocket door separating the shower and toilet from the rest of the bathroom. The Master Closet can uniquely be accessed through both the bedroom and the bathroom, providing straightforward use. The second-floor houses two additional bedrooms, a bathroom with closet storage, as well as the Bonus Room with doors that can be opened or closed depending on the desired use of the space and needed privacy.
Floor Plans

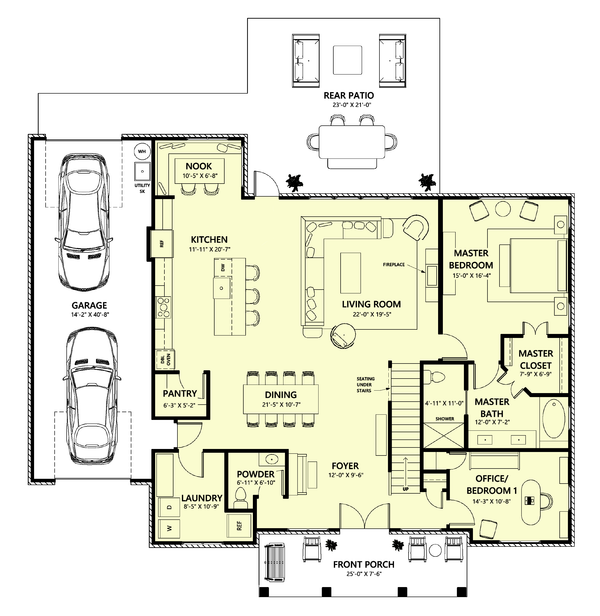

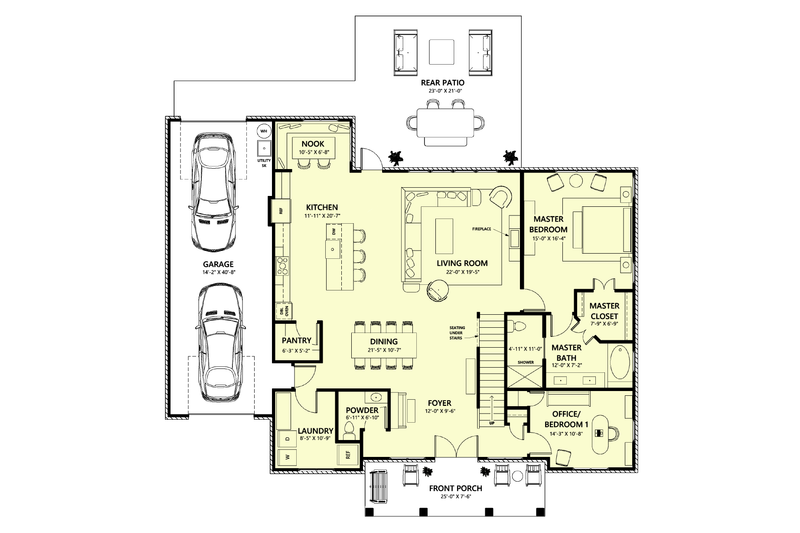

Floor Plan - Main Floor

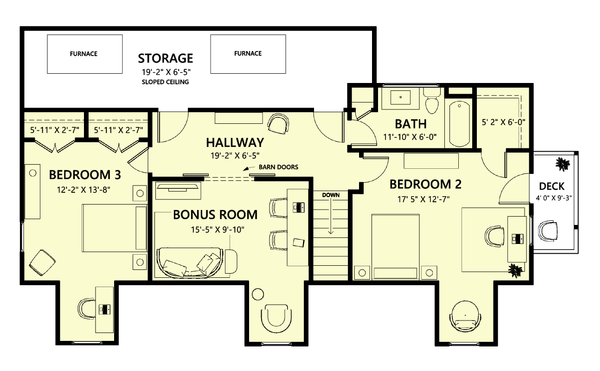

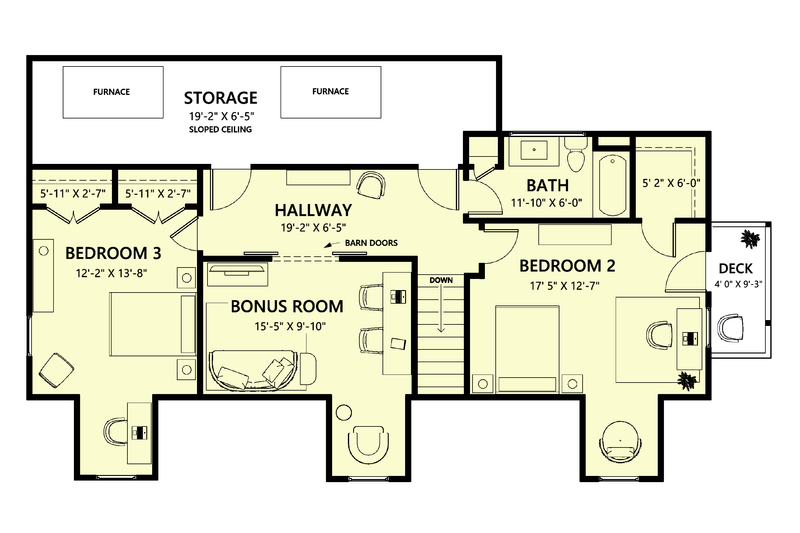

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 48' 6"
Height: 26' 4"
Width: 64' 6"
Area
Garage: 576 sq/ft
Main Floor: 2058 sq/ft
Patios: 576 sq/ft
Porch: 205 sq/ft
Storage: 259 sq/ft
Upper Floor: 948 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling: 9' 9"
Garage Ceiling: 9'
Main Ceiling: 10'
Upper Ceiling Ft: 9'
Roof
Primary Pitch: 9:12
Roof Framing: Trusses
Roof Type: Trusses
Secondary Pitch: 4:12
Exterior Wall Framing
Exterior Wall Finish: Brick
Framing: 2x4
Insulation: Fiberglas
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Mud Room
Play Flex Room
Storage Area
Garage Features
Tandem Garage
Outdoor Spaces
Covered Front Porch
More
Wheelchair Adaptable
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1445.00
$1445.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2445.00
$2445.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Floating Slab:
$0.00
$0.00
A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.
Monolithic Slab:
$0.00
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$225.00
$225.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Stem Wall Foundation:
$225.00
$225.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Basement:
$450.00
$450.00
Ideal for level lot, lower level of home partially or fully underground.
Walk Out Basement:
$450.00
$450.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$225.00
$225.00
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$395.00
$395.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
