Key Specs


3013
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

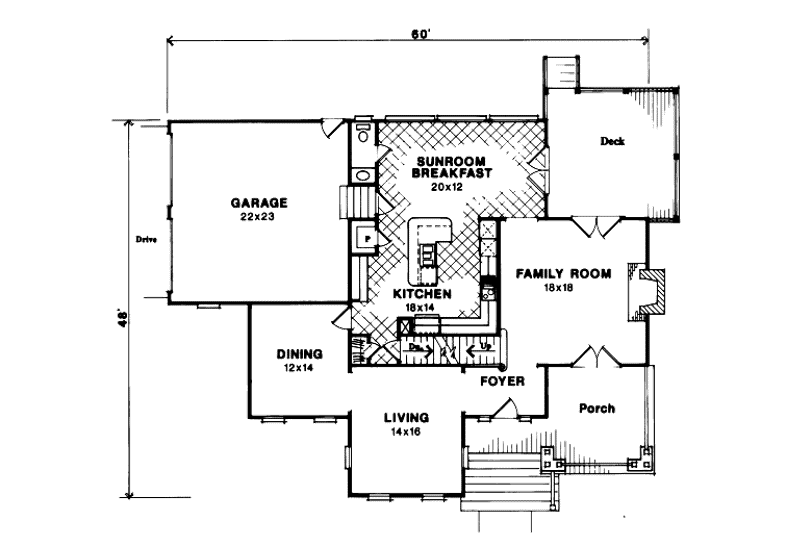

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #41-172

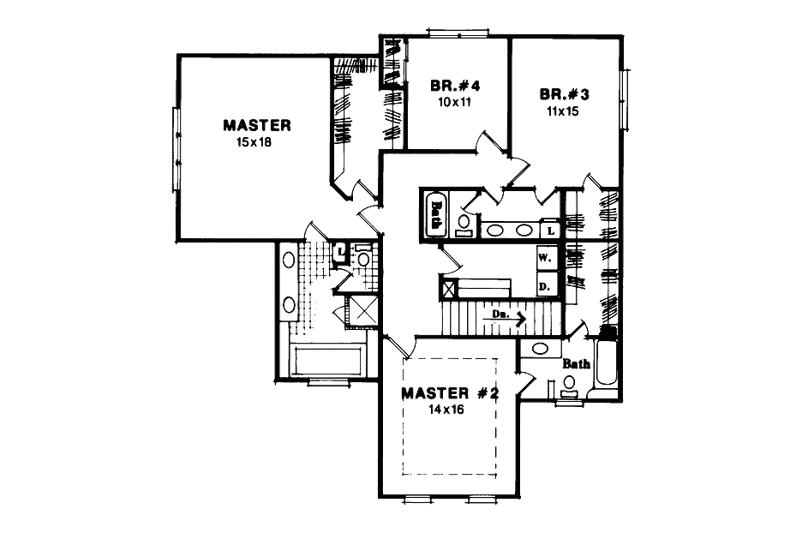

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #41-172

Full Specs & Features


Dimension
Depth : 48'
Height : 33'
Width : 60'
Area
First Floor: 1459 sq/ft height 9'
Second Floor: 1554 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Upstairs Laundry
Sunroom
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms

3rd BR Closet:

27 sq/ft width 5' 6" x depth 5'

Bathroom 2:

60 sq/ft width 10' x depth 6'

Bedroom 2:

224 sq/ft width 16' x depth 14'

Bedroom 2 Closet:

52 sq/ft width 5' 6" x depth 9' 6"

Bedroom 3:

165 sq/ft width 15' x depth 11'

Bedroom 3 Closet:

52 sq/ft width 5' 6" x depth 9' 6"

Bedroom 4:

110 sq/ft width 11' x depth 10'

Bedroom 4 Closet:

10 sq/ft width 2' x depth 5'

Breakfast Room:

240 sq/ft width 12' x depth 20'

Deck:

144 sq/ft width 12' x depth 12'

Dining Room:

168 sq/ft width 14' x depth 12'

Foyer:

60 sq/ft width 6' x depth 10'

Garage:

506 sq/ft width 23' x depth 22'

Gathering Room:

324 sq/ft width 18' x depth 18'

Hall:

width 3' 6" x depth 0"

Hall Bathroom:

70 sq/ft width 14' x depth 5'

Hall Closet:

7 sq/ft width 3' 6" x depth 2'

Kitchen:

252 sq/ft width 14' x depth 18'

Laundry Room:

66 sq/ft width 5' 6" x depth 12'

Living Room:

224 sq/ft width 16' x depth 14'

Master Bathroom:

110 sq/ft width 10' x depth 11'

Master Closet:

98 sq/ft width 7' x depth 14'

Porch - Front:

156 sq/ft width 12' 4" x depth 12' 8"

Powder Room:

23 sq/ft width 3' x depth 7' 8"

Wash Room:

66 sq/ft width 12' x depth 5' 6"
