Key Specs


3021
sq ft

2
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Partially-octagonal spaces abound in this bright and breezy Florida-inspired home plan. They expand the vaulted great room, the dining room, and even the lavish owners' suite. A long work island with a prep sink mimics the shape of the well-appointed kitchen, where a pastry counter nestles into one corner.

Floor Plans

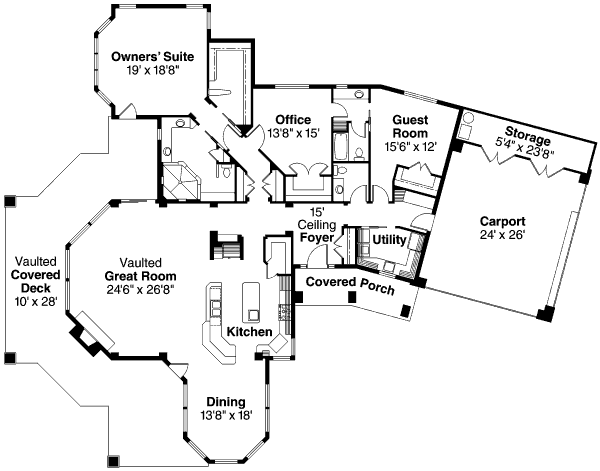

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #124-705

Full Specs & Features


Dimension
Depth : 80'
Height : 21' 6"
Width : 102' 9"
Area
First Floor: 3021 sq/ft height 9'
Garage: 768 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : truss/stick
Roof Load : 25 psf
Primary Pitch : 7:12
Exterior Wall Framing
Icf
Exterior Wall Finish : Stone, Stucco
Framing : ICF
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Wrap Around Porch
More
Empty Nester
Unusual Shape
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Rooms

Carport:

624 sq/ft width 24' x depth 26'

Deck:

280 sq/ft width 10' x depth 28'

Dining Room:

246 sq/ft width 13' 8" x depth 18'

Garage Storage:

126 sq/ft width 5' 4" x depth 23' 8"

Great Room:

653 sq/ft width 24' 6" x depth 26' 8"

Guest Bedroom:

186 sq/ft width 15' 6" x depth 12'

Master Suite:

354 sq/ft width 19' x depth 18' 8"

Office:

205 sq/ft width 13' 8" x depth 15'

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1245.00
5 printed plan sets mailed to you.
PDF Set :
$1245.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$1440.00
8 printed plan sets mailed to you.
CAD Set :
$2595.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$995.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$325.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
