PLAN 1060-33
Photographs may show modified designs.
- Jump to:
- All (31)
- Floor plans (3)
Get Personalized Help
Key Specs
3030
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-33
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

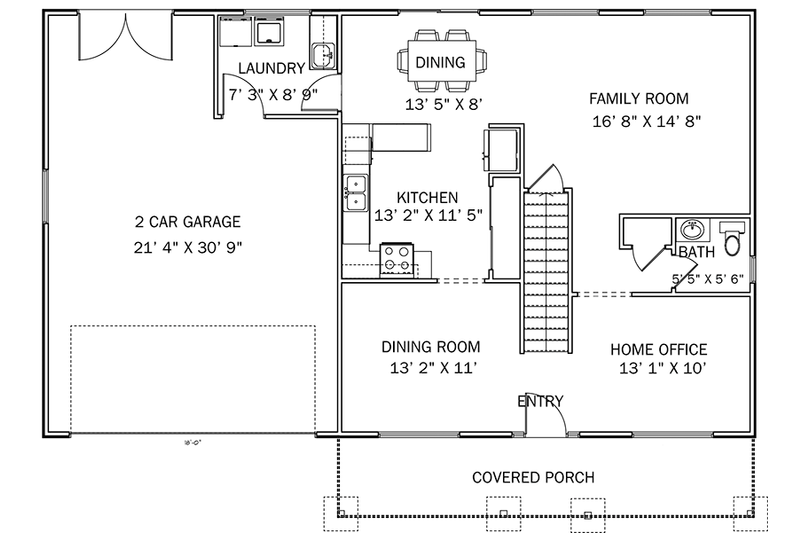

Floor Plan - Main Floor

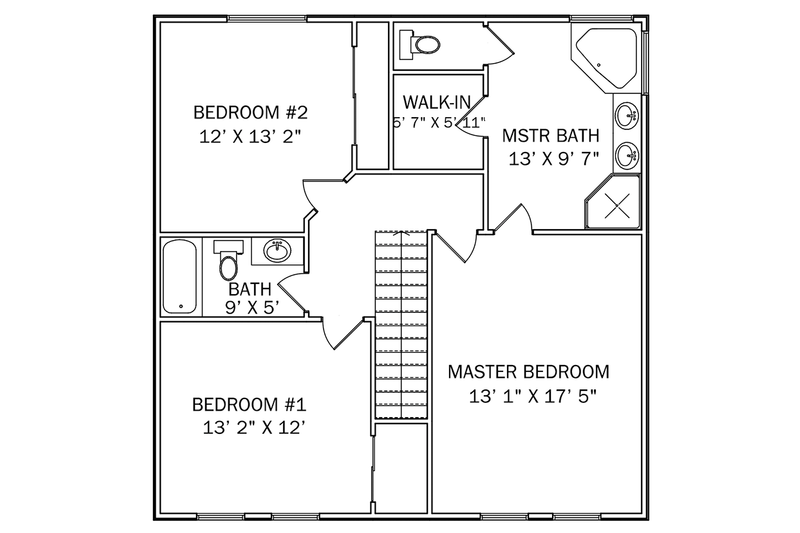

Floor Plan - Upper Floor

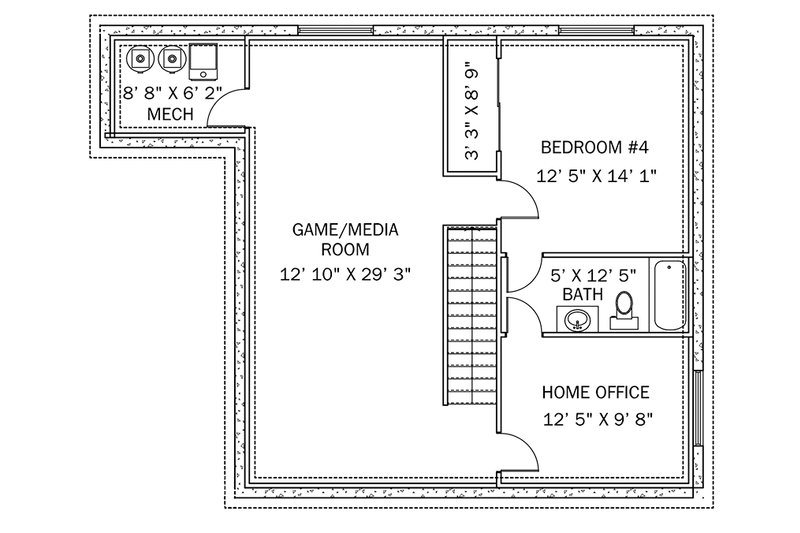

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 31' 4"
Height: 26' 3"
Width: 52' 4"
Area
Basement Living: 1005 sq/ft height 8'
First Floor: 1047 sq/ft height 8'
Garage: 699 sq/ft
Second Floor: 978 sq/ft height 8'
Roof
Primary Pitch: 6:12
Roof Framing: Truss
Roof Type: Asphalt
Secondary Pitch: 3:12
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Mud Room
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
More
Jack & Jill Bath
Rooms
Basement Office:
120 sq/ft width 12' 5" x depth 9' 8"
Bath 2:
45 sq/ft width 9' x depth 5'
Bath 3:
62 sq/ft width 5' x depth 12' 5"
Bedroom 2:
158 sq/ft width 13' 2" x depth 12'
Bedroom 3:
158 sq/ft width 12' x depth 13' 2"
Bedroom 4:
175 sq/ft width 12' 5" x depth 14' 1"
Bedroom 4 Closet:
28 sq/ft width 3' 3" x depth 8' 9"
Covered Front Porch:
180 sq/ft
Dining Room:
145 sq/ft width 13' 2" x depth 11'
Family Room:
244 sq/ft width 16' 8" x depth 14' 8"
Game/ Media Room:
375 sq/ft width 12' 10" x depth 29' 3"
Garage:
699 sq/ft width 21' 4" x depth 30' 9"
Hall Bath:
30 sq/ft width 5' 5" x depth 5' 6"
Home Office:
131 sq/ft width 13' 1" x depth 10'
Kitchen:
150 sq/ft width 13' 2" x depth 11' 5"
Laundry:
63 sq/ft width 7' 3" x depth 8' 9"
Master Closet:
33 sq/ft width 5' 7" x depth 5' 11"
Master Bath:
125 sq/ft width 13' x depth 9' 7"
Master Bedroom:
228 sq/ft width 13' 1" x depth 17' 5"
Mechanical:
53 sq/ft width 8' 8" x depth 6' 2"
What's Included In This Plan Set
- Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

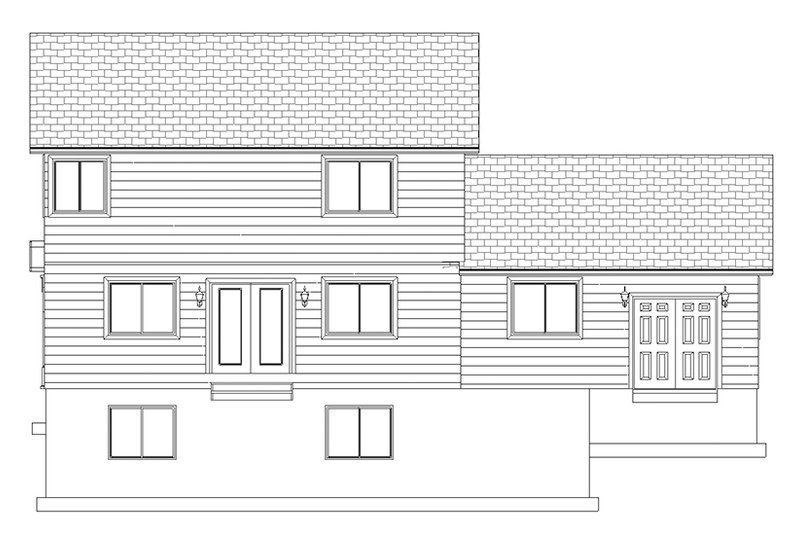

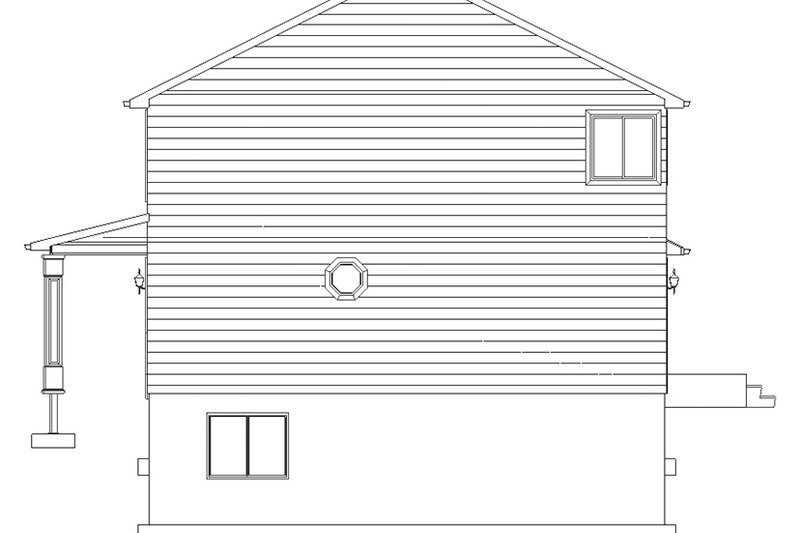

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
- Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
- Wall Section(s): Sectionals showing wall types and details.
- Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.
Plan Set
$1250.00
$1495.00
$1650.00
$1795.00
$1950.00
$2250.00
Foundation
$350.00
$350.00
Framing
$0.00
$250.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
