Key Specs


3040
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

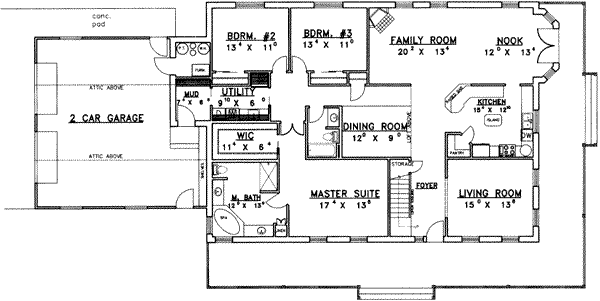

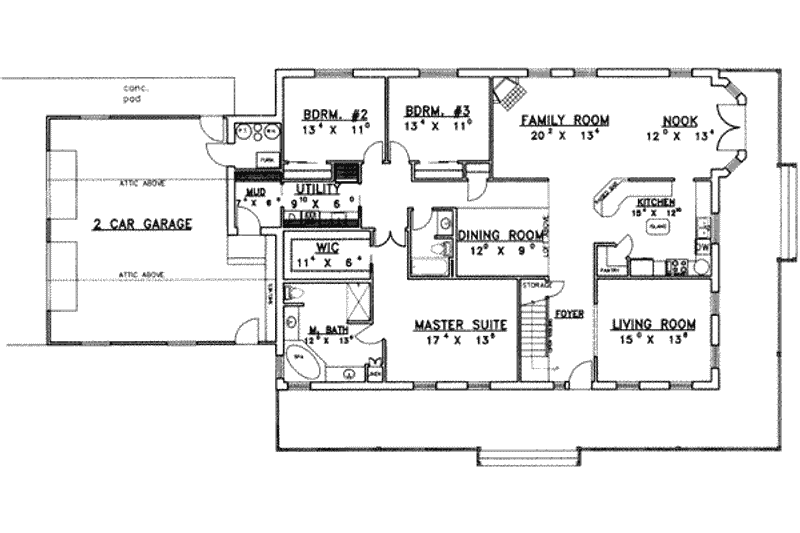

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #117-323

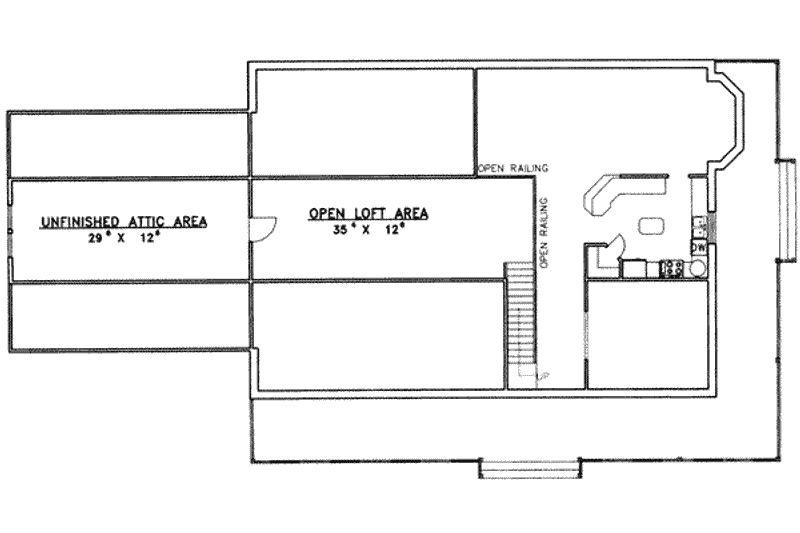

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #117-323

Full Specs & Features


Dimension
Depth : 42'
Height : 27' 1"
Width : 91' 6"
Area
Bonus: 395 sq/ft
First Floor: 2570 sq/ft
Garage: 801 sq/ft
Second Floor: 470 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Storage Area
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Rooms

Bedroom 2:

146 sq/ft width 13' 4" x depth 11'

Bedroom 3:

146 sq/ft width 13' 4" x depth 11'

Breakfast Nook:

159 sq/ft width 12' x depth 13' 4"

Dining Room:

108 sq/ft width 12' x depth 9'

Family Room:

268 sq/ft width 20' 2" x depth 13' 4"

Kitchen:

196 sq/ft width 15' 4" x depth 12' 10"

Living Room:

58 sq/ft width 9' 10" x depth 6'

Master Bathroom:

156 sq/ft width 12' x depth 13'

Master Bedroom:

233 sq/ft width 17' 4" x depth 13' 6"

Master Closet:

67 sq/ft width 11' 4" x depth 6'

Mud Room:

43 sq/ft width 7' 4" x depth 6'

Utility Room:

58 sq/ft width 9' 10" x depth 6'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

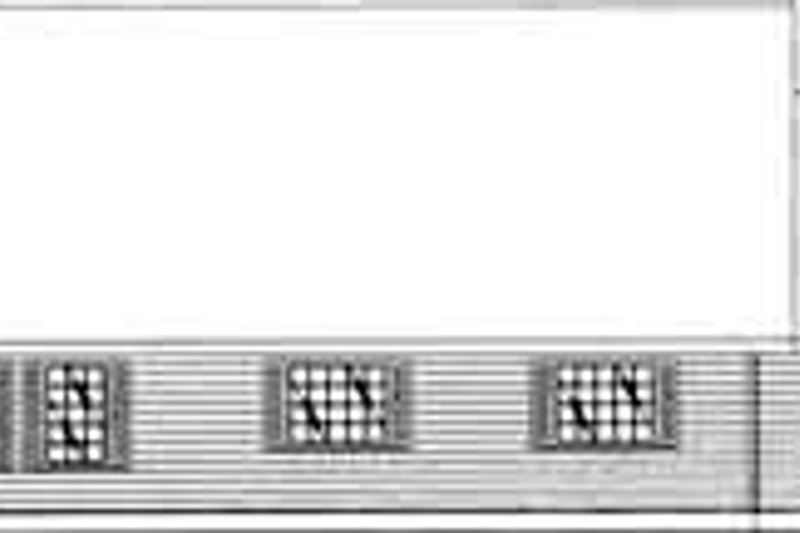

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
